Home >> Mercury >> 1985 >> Marquis V8-302 5.0L VIN M FI HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> Wiring Diagrams

Wiring Diagrams

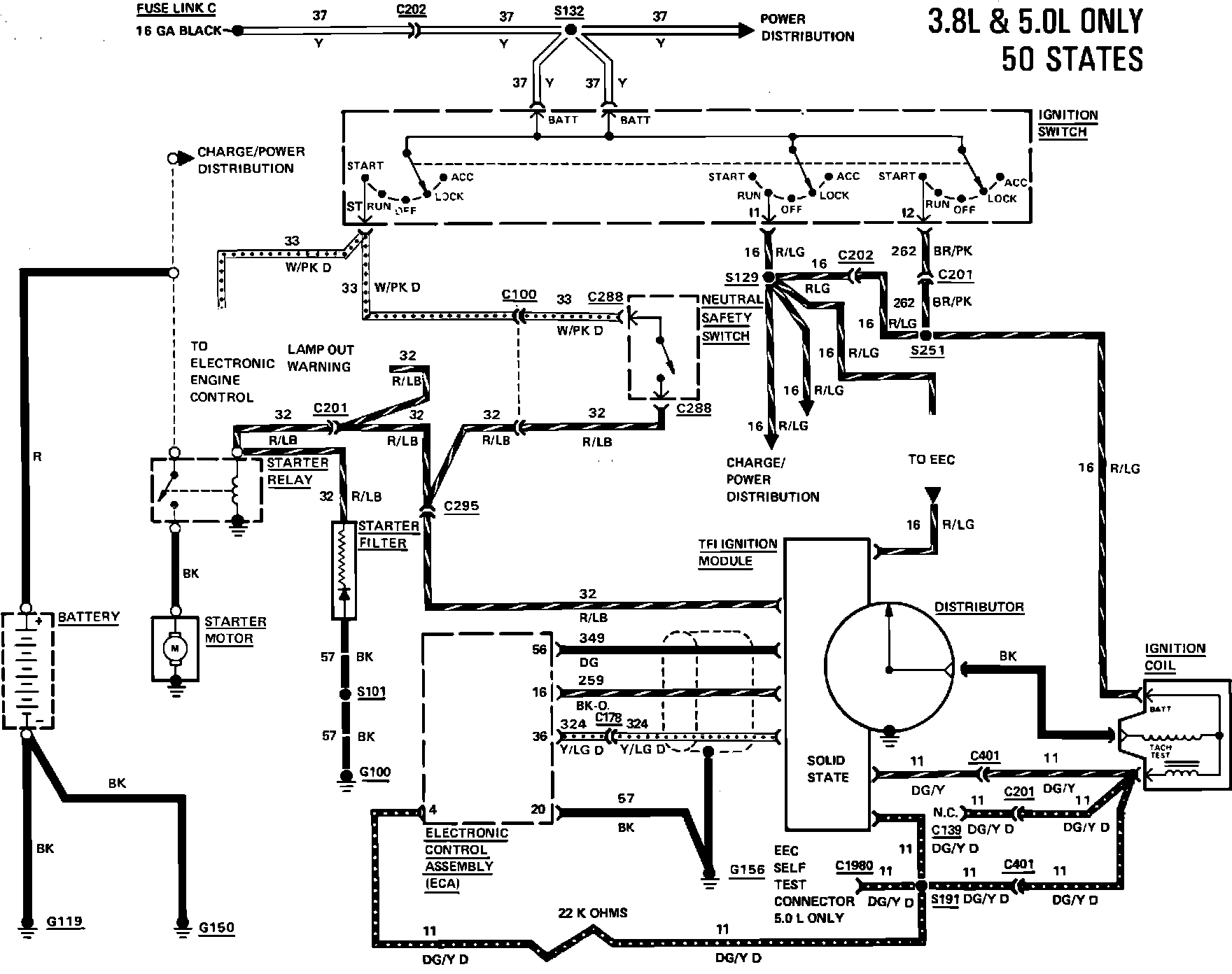

Fig. 31 Ignition System Wiring Circuit. 1985, 3.8 Litre & 5.0 Litre:
