Instrument Illumination (Analog Cluster) Wiring Circuit
Instrument Illumination (Analog Cluster) Wiring Circuit

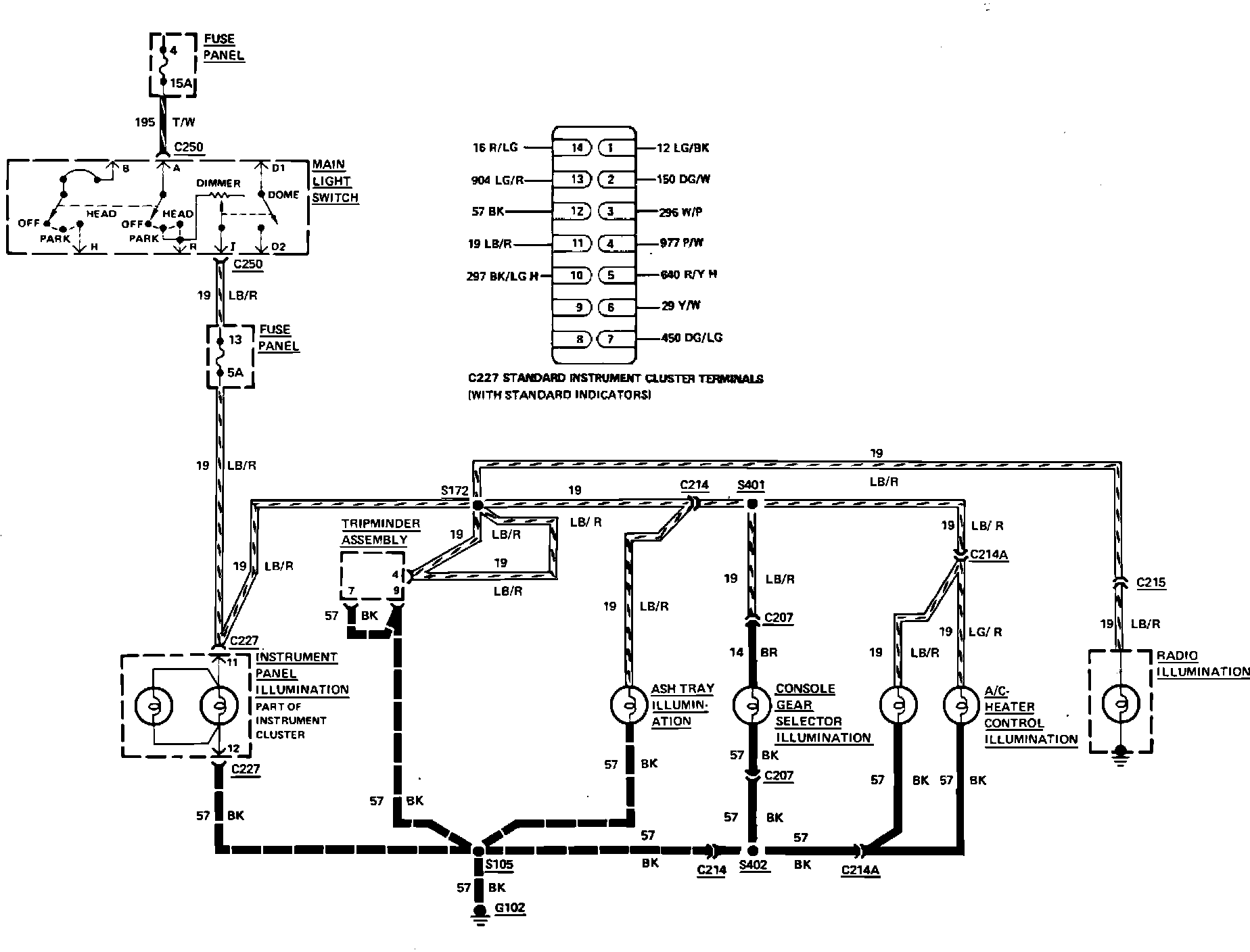

Fig. 35 Instrument Panel Illumination Wiring Circuit (Standard). 1985:
