Less Lamp Out Warning

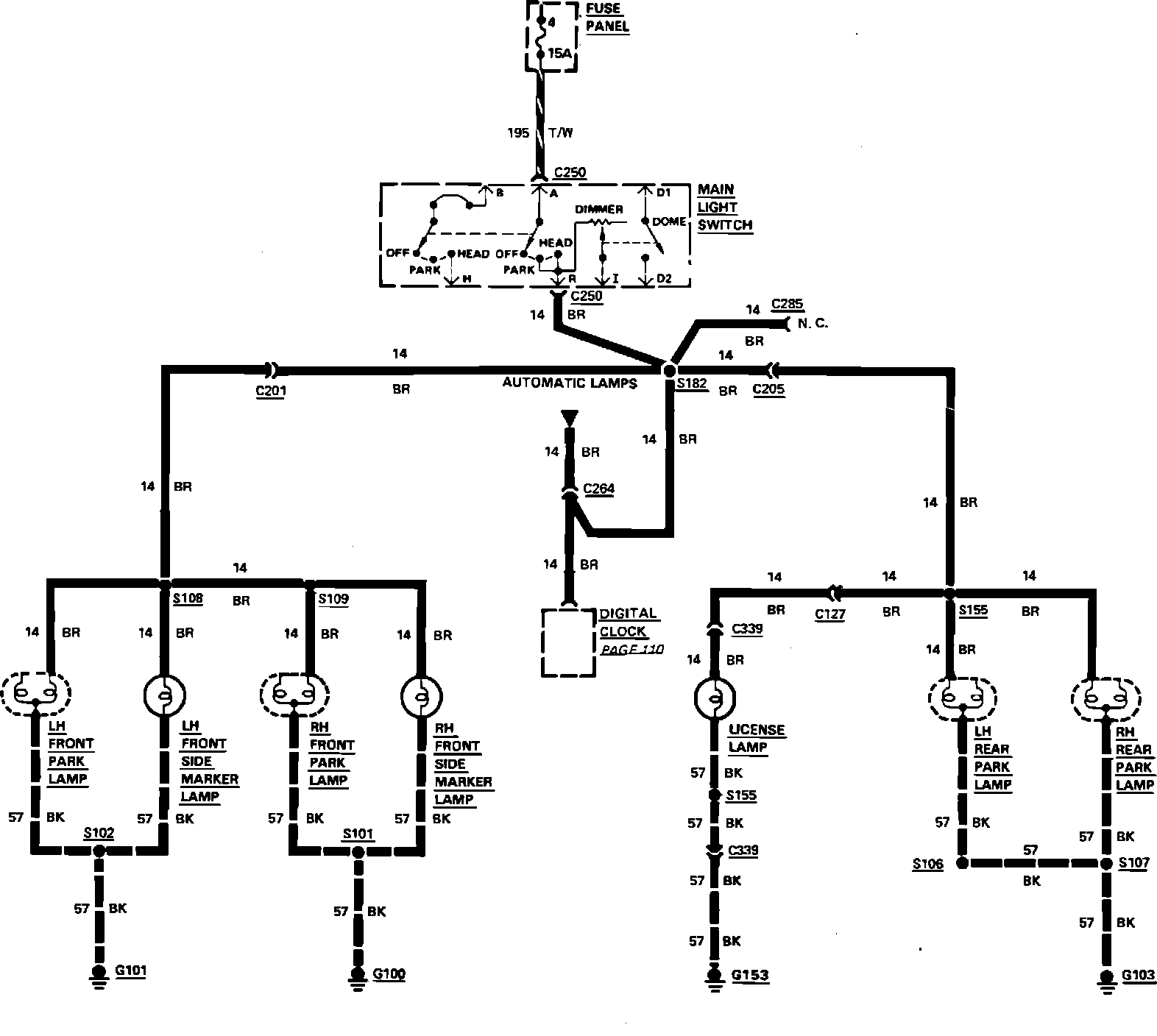

Fig. 41 License, Marker & Parking Lamps Wiring Circuit. 1985 Station Wagon, Less Lamp Out Warning:
