Home >> Mercury >> 1985 >> Marquis V8-302 5.0L VIN M FI HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Marker Lamp >> Sedan >> Less Lamp Out Warning

Less Lamp Out Warning

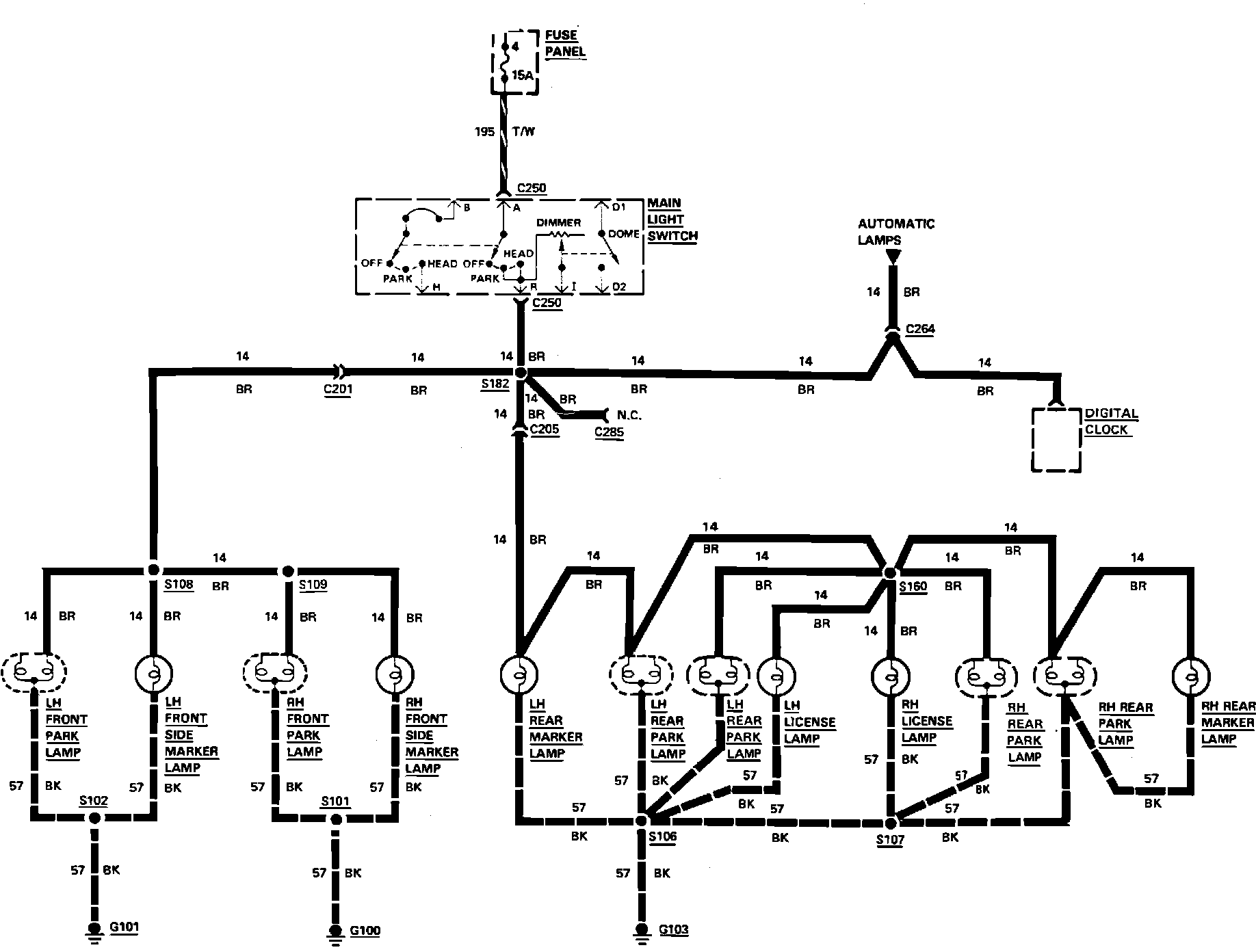

Fig. 39 License, Marker & Parking Lamps Wiring Circuit. 1985 Sedan, Less Lamp Out Warning:
