Warning Chime or Voice Alert Wiring Circuit

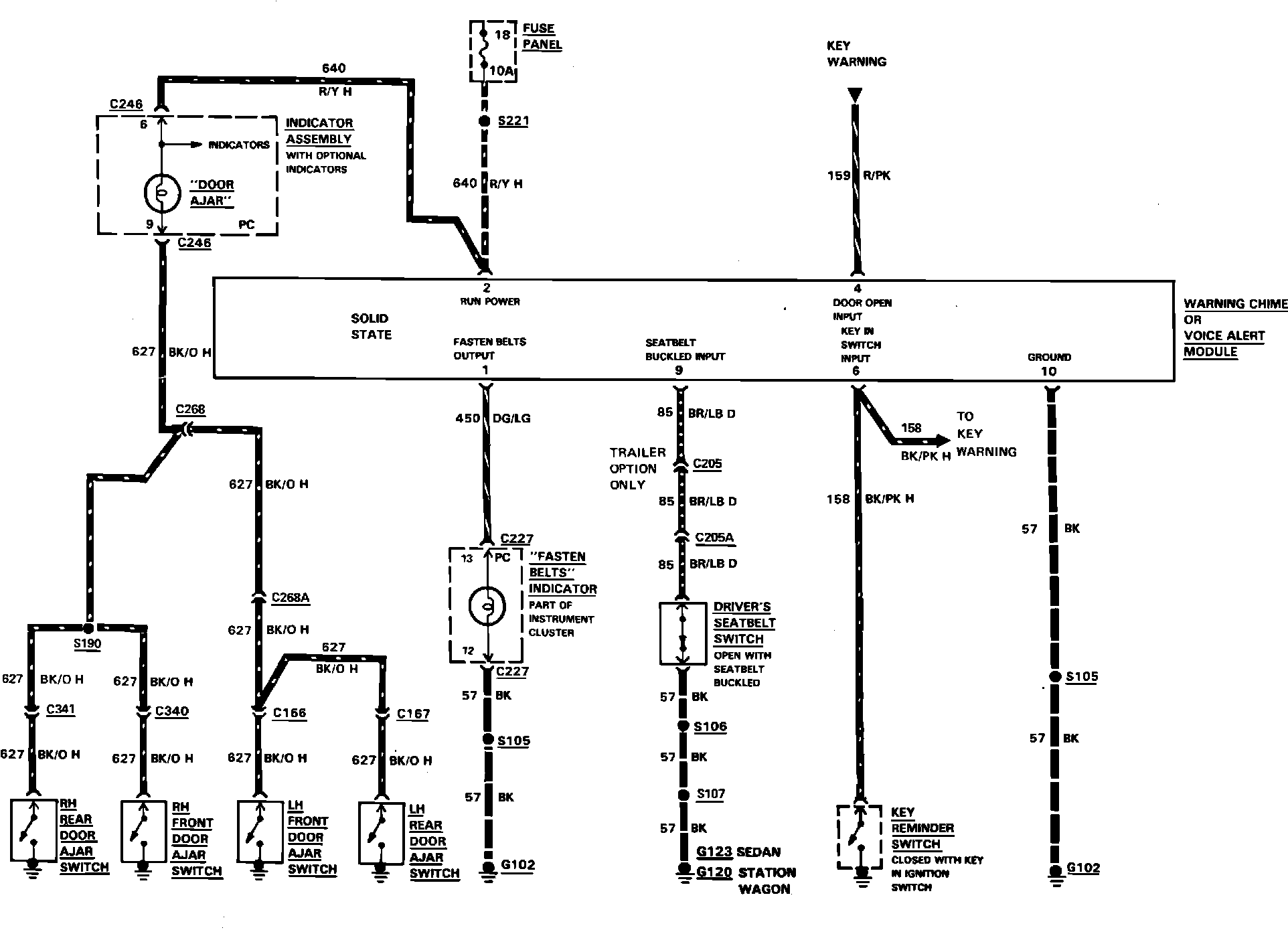

Fig. 57 Voice Alert & Warning Chime Wiring Circuit. 1985:
