Electronic Stereo

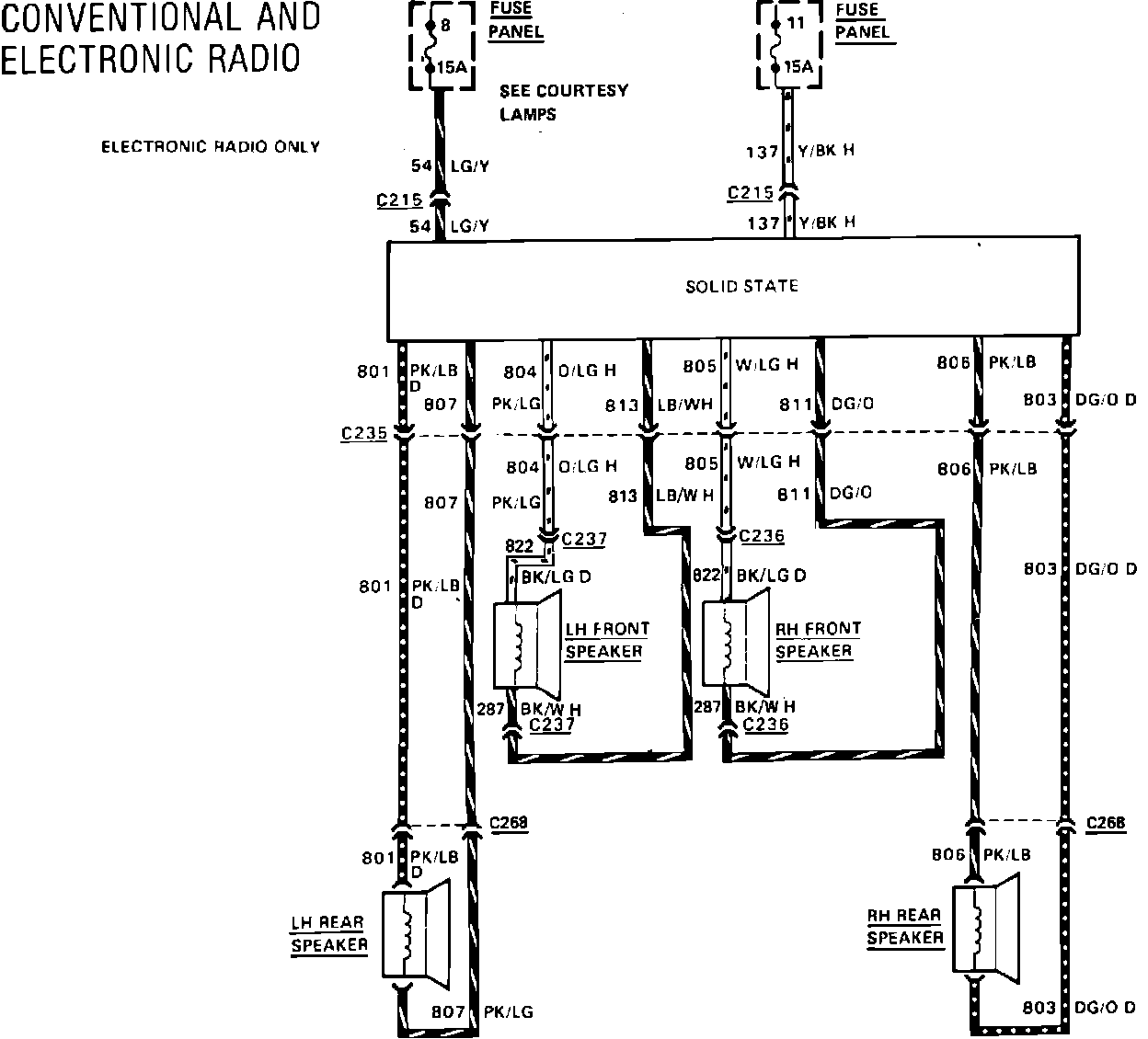

Fig. 50 Radio Wiring Circuit (Less Premium Sound) (Part 1 of 2). 1985:

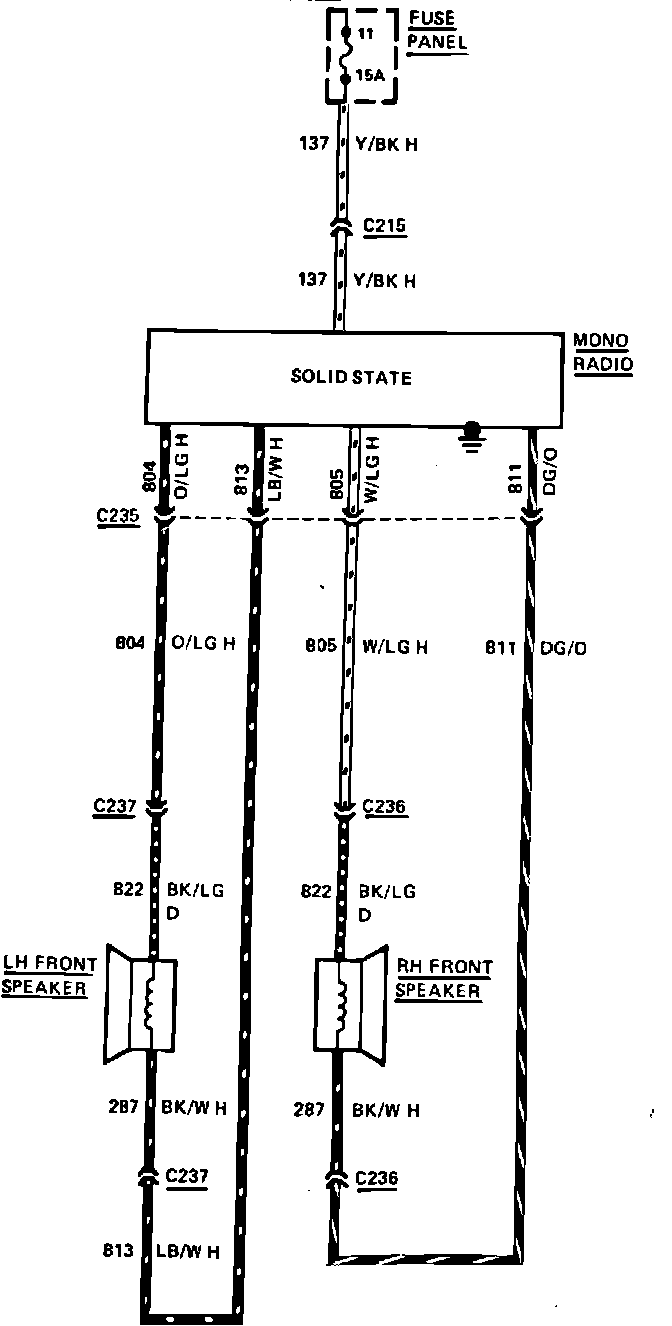

Fig. 50 Radio Wiring Circuit (Less Premium Sound) (Part 2 of 2). 1985:
