Marquis & All Wagons (Module)

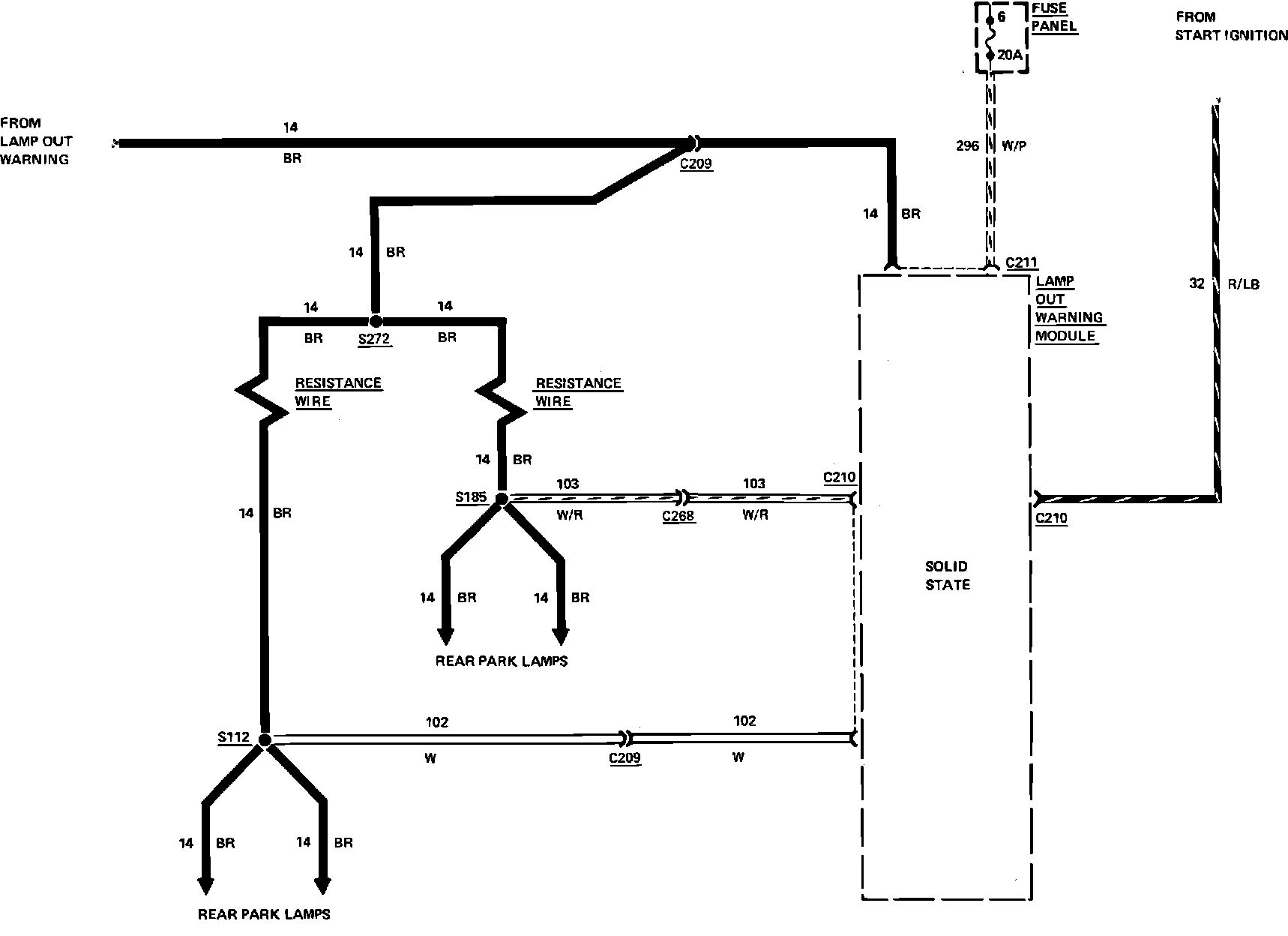

Fig. 38 Lamp Out Warning System Wiring Circuit (Module). 1985 Marquis & All Wagons:
