Fig. 8 Calib. Code 4-27A-R02 Calif.

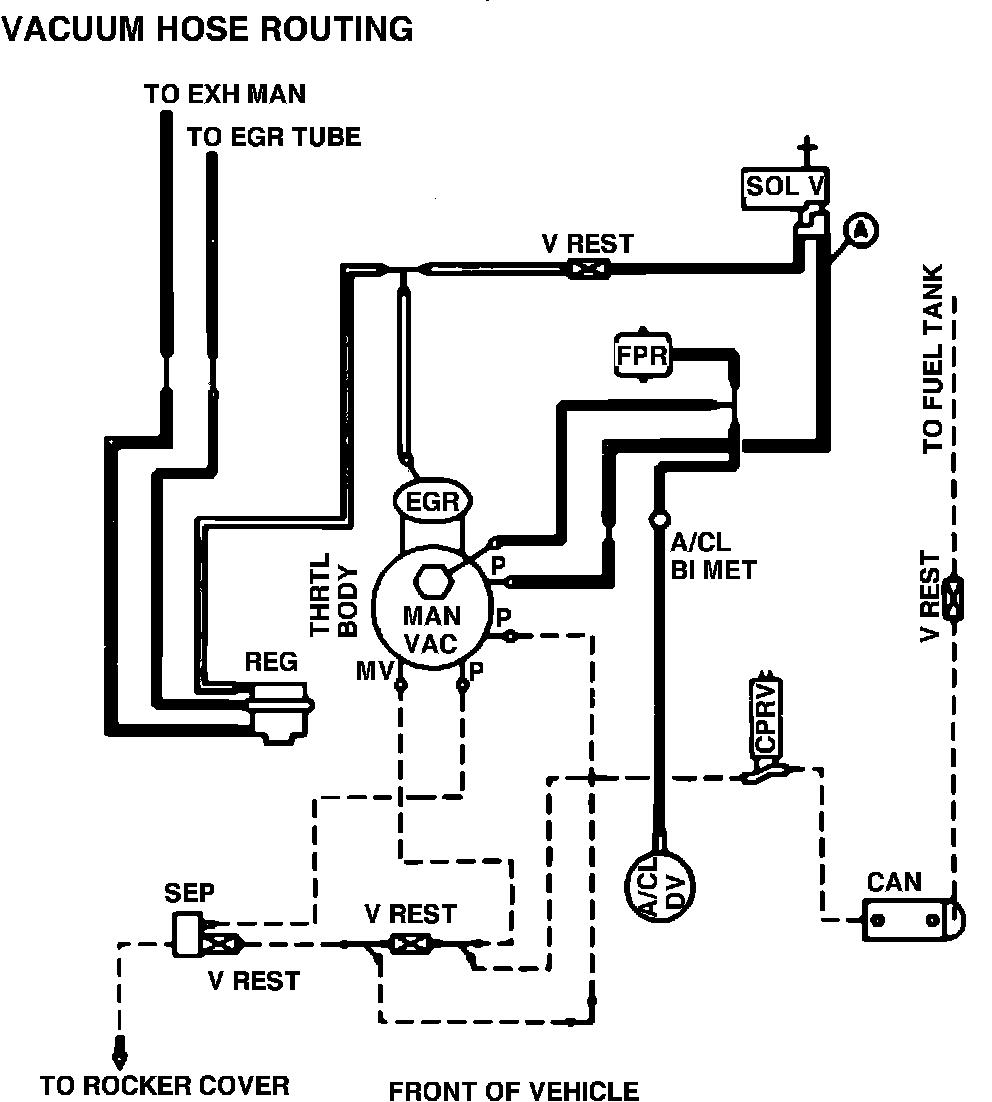

Fig. 8 Vacuum Hose Routing. 1985 4-97.6 EFI. Auto. Trans. Calib. Code 4-27A-R02 Calif.:
