Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC VIN 4 2-bbl HP >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams >> With Automatic Transmission/Transaxle

With Automatic Transmission/Transaxle

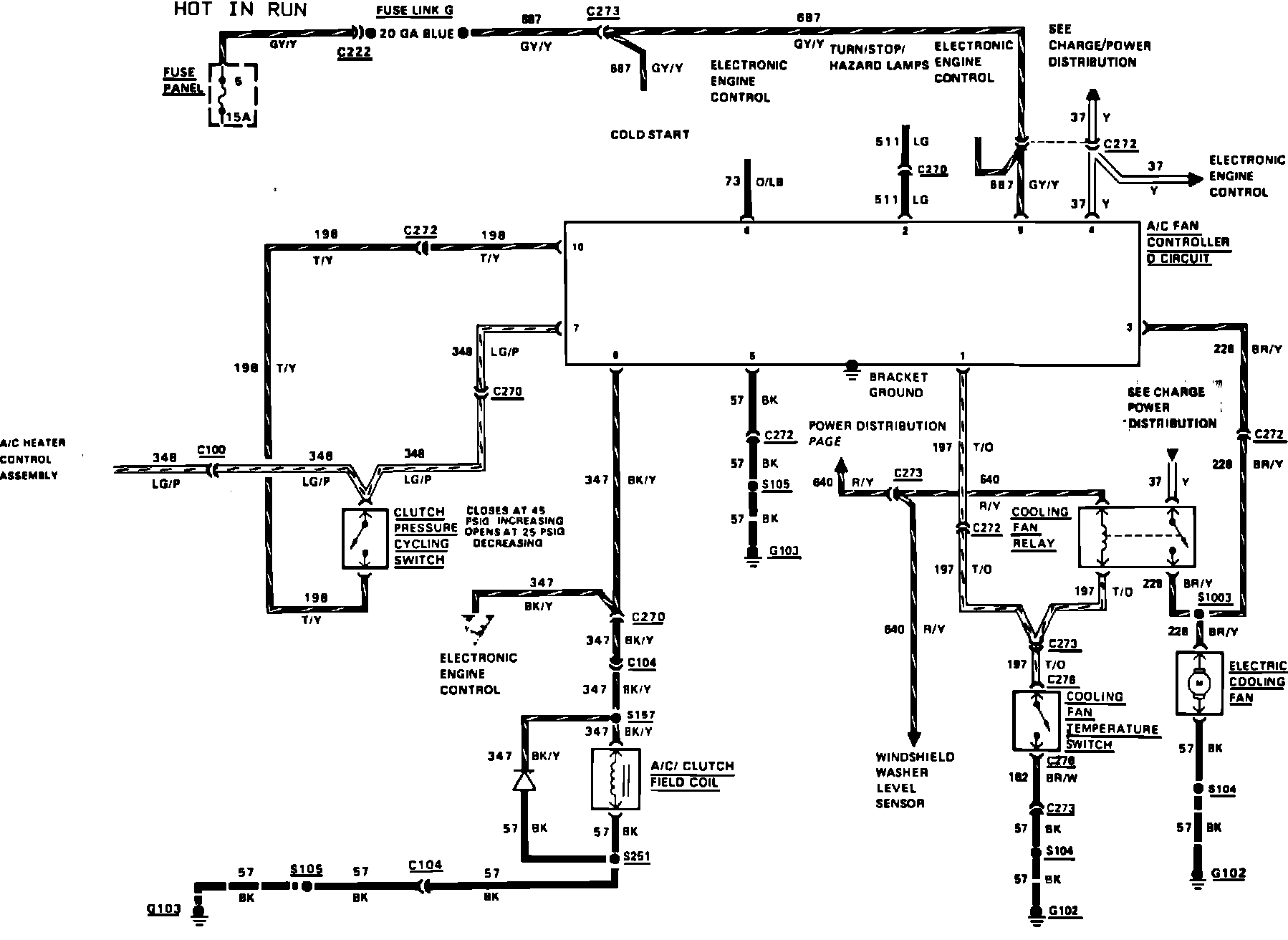

Fig. 6 Air Conditioning, Heater & Cooling Fan Wiring Circuit. 1.9L Engine With Automatic Trans.:
