Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC VIN 4 2-bbl HP >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams >> With A/C

With A/C

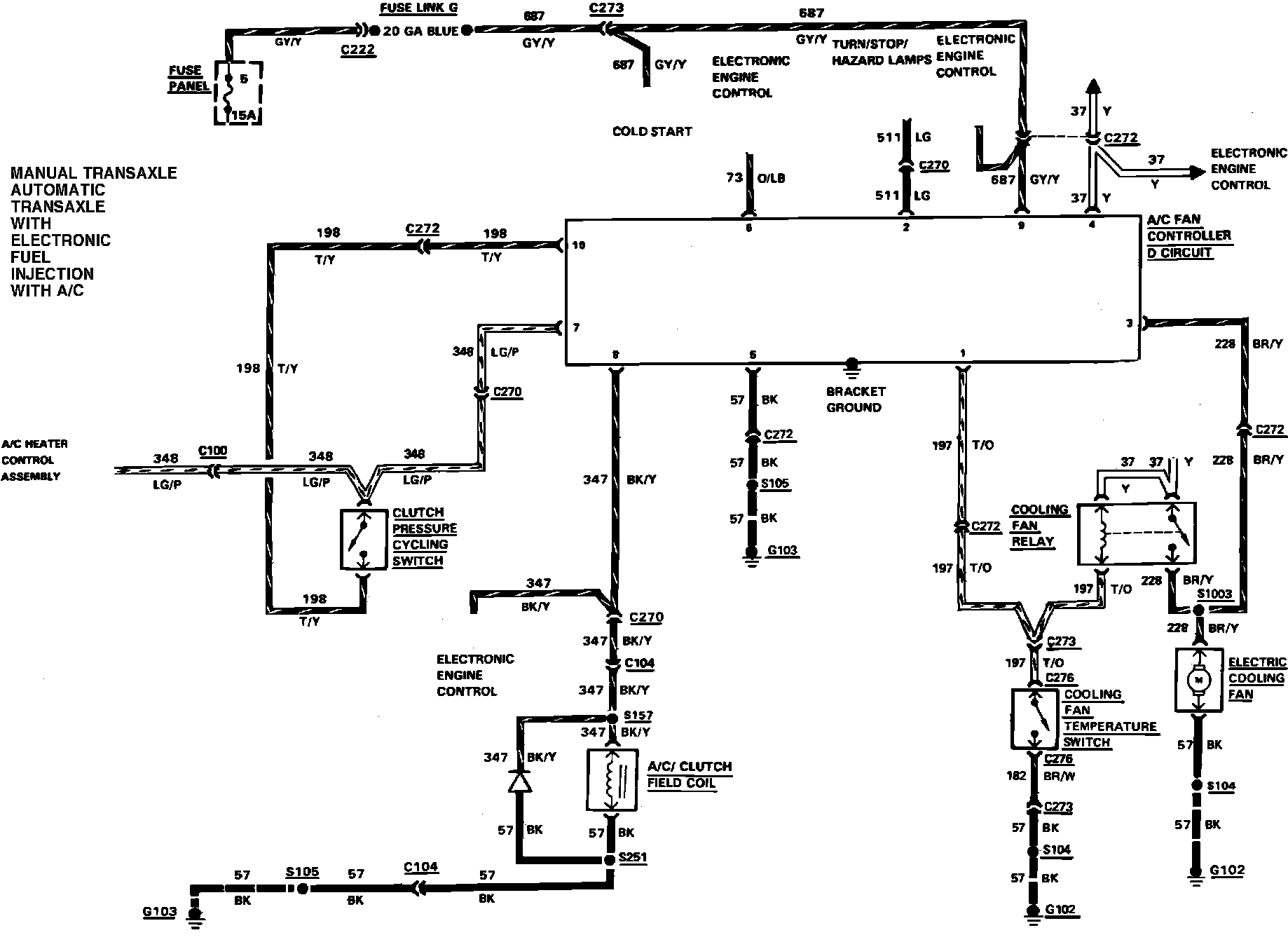

Fig. 4 Air Conditioning, Heater & Cooling Fan Wiring Circuit. EFI Engines:
