Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC VIN 4 2-bbl HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> With Manual Transmission and Without EEC or High Output

With Manual Transmission and Without EEC or High Output

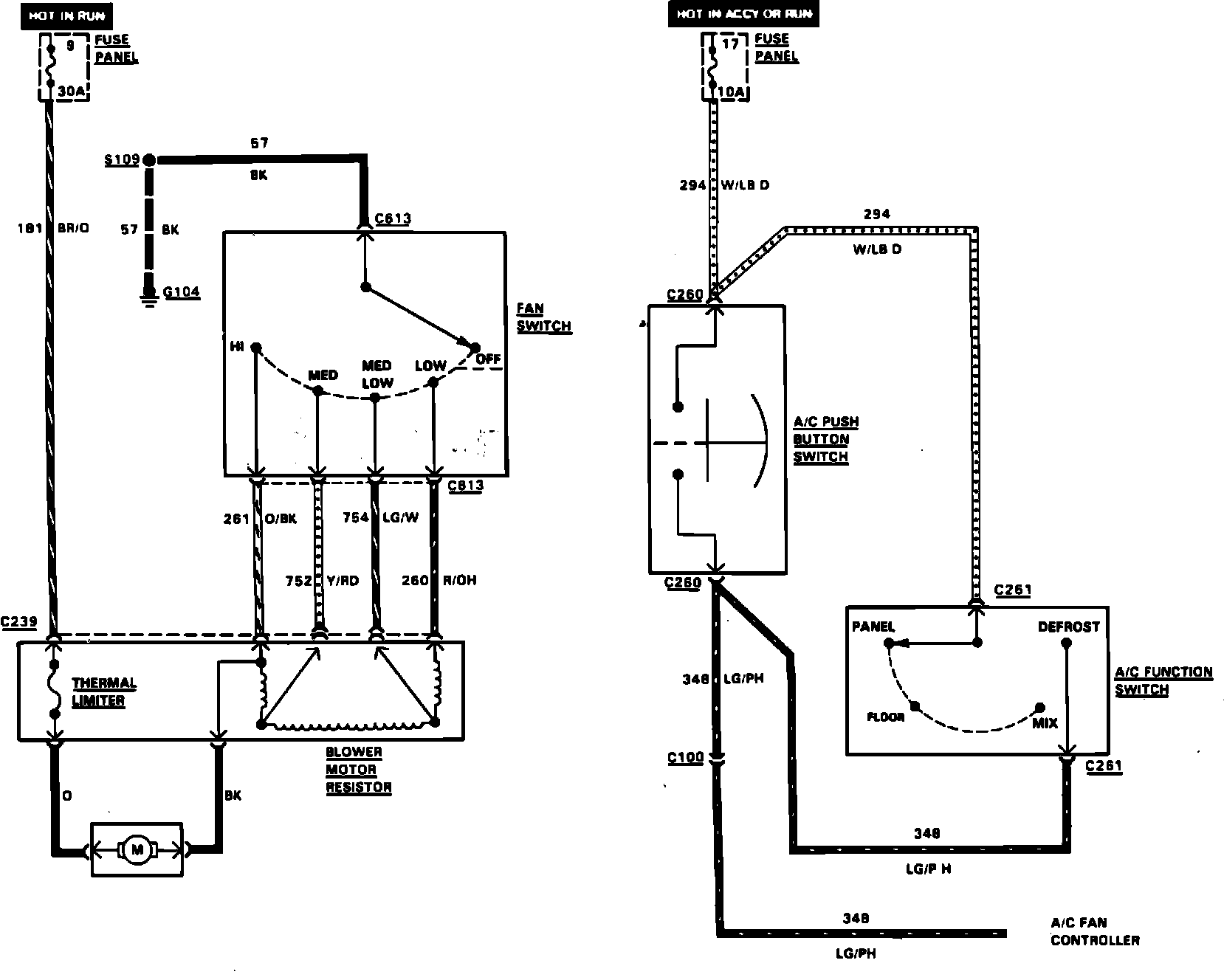

Fig. 4 Air Conditioning & Heater Control Wiring Circuit. 1985:



Fig. 5 Air Conditioning & Heater Cooling Fan Wiring Circuit. 1985 W/Standard Manual Transaxle:
