Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC VIN 2 2-bbl >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams >> Without A/C

Without A/C

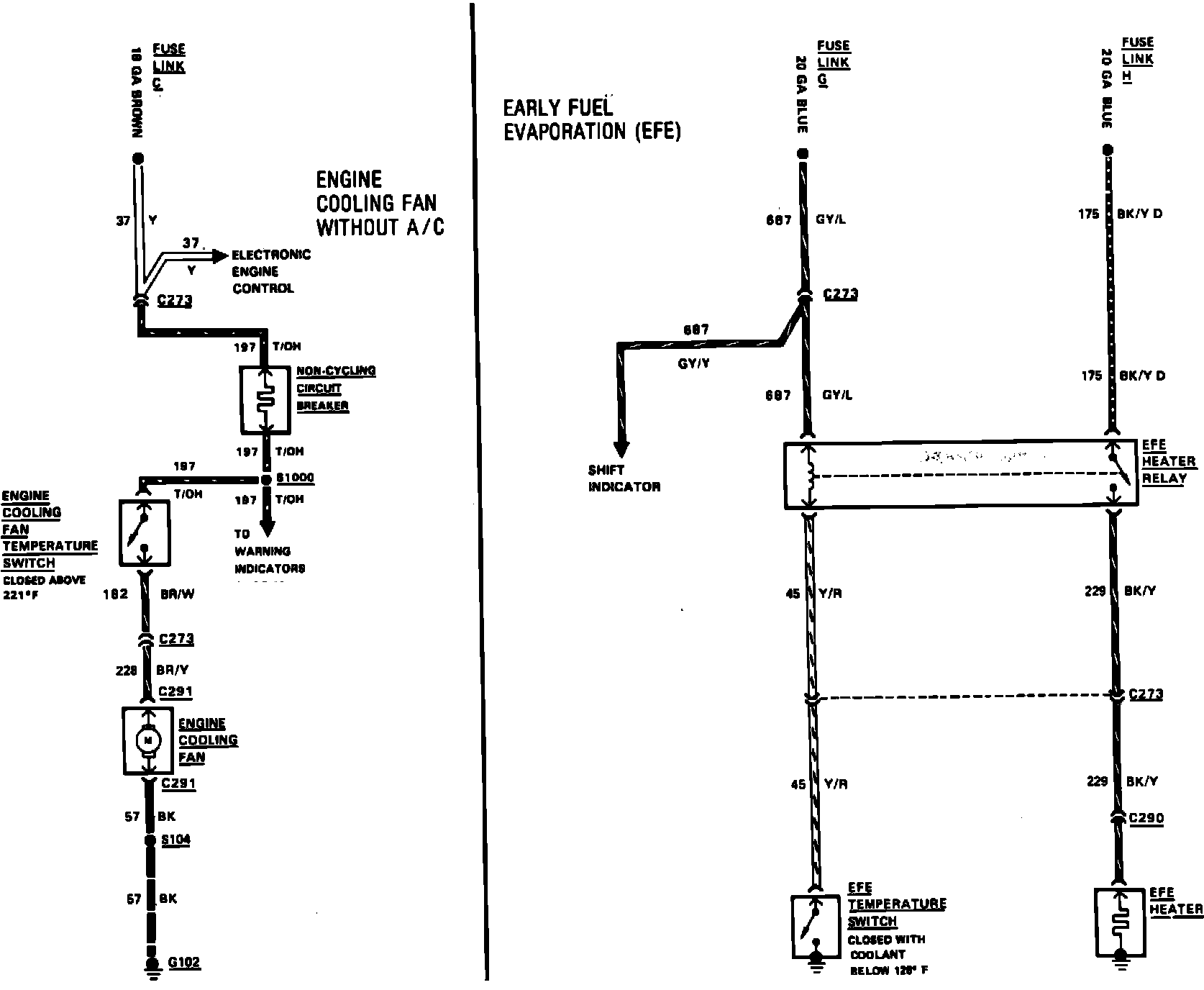

Fig. 18 Engine Cooling Fan & Early Fuel Evaporation Wiring Circuit. 1985:
