Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC VIN 2 2-bbl >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams >> With Manual Transmission/Transaxle

With Manual Transmission/Transaxle

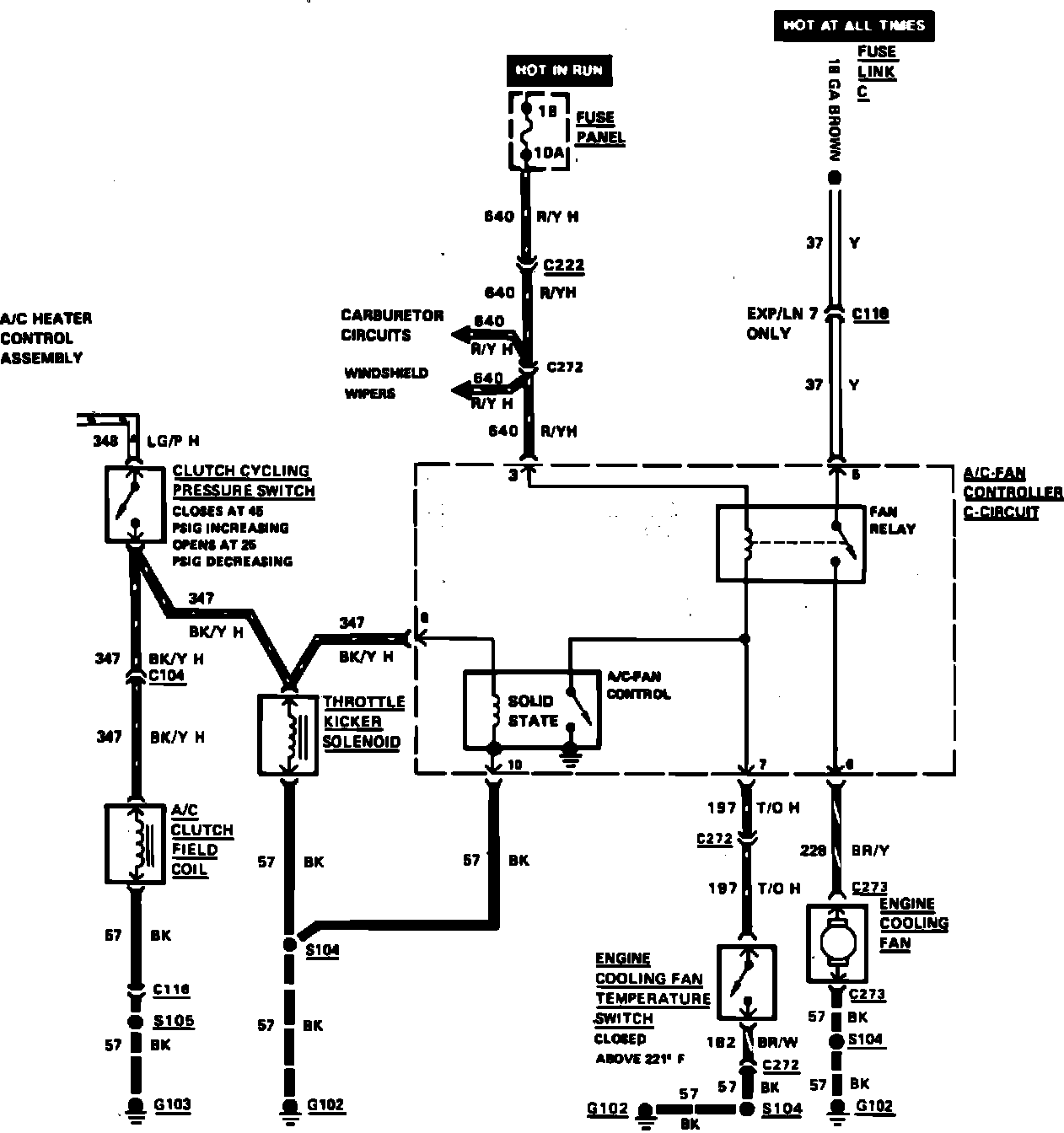

Fig. 5 Air Conditioning & Heater Cooling Fan Wiring Circuit. 1985 W/Standard Manual Transaxle:
