Home >> Mercury >> 1985 >> Lynx L4-98 1.6L SOHC Turbo VIN 8 FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams >> With Automatic Transmission/Transaxle

With Automatic Transmission/Transaxle

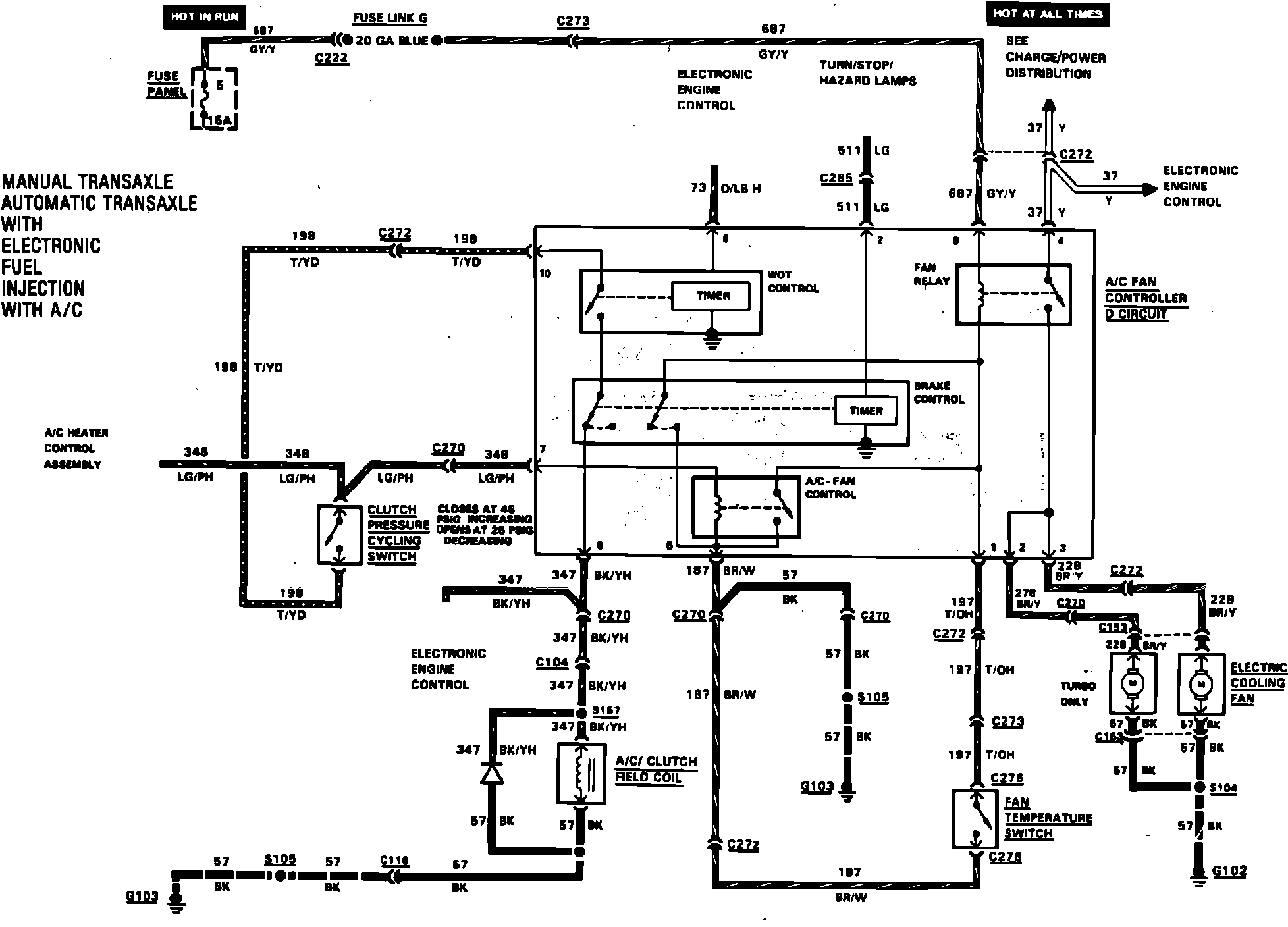

Fig. 7 Air Conditioning & Heater Cooling Fan Wiring Circuit. 1985 W/EFI:
