Home >> Mercury >> 1985 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams >> Electrical Diagrams >> Liftback

Liftback

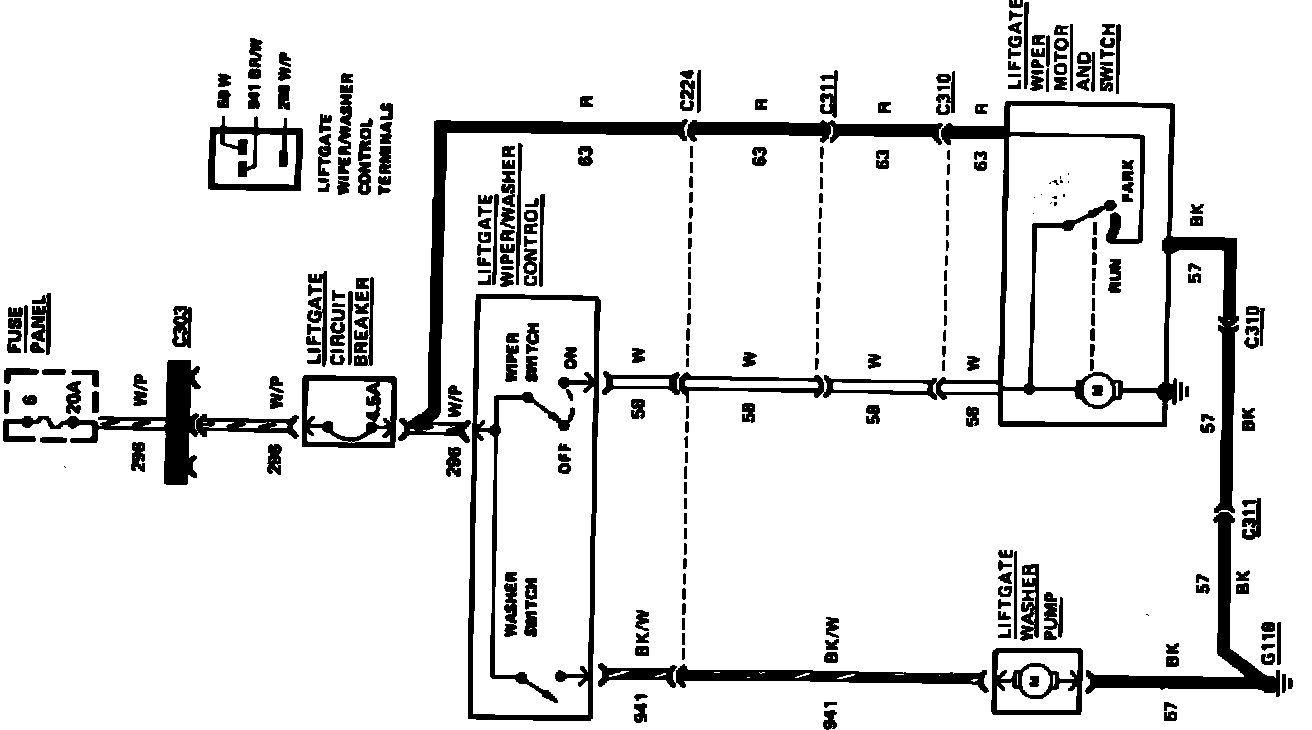

Fig. 43 Liftgate Release & Wiper/Washer Wiring Circuit. 1985 Liftback:
