Home >> Mercury >> 1985 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

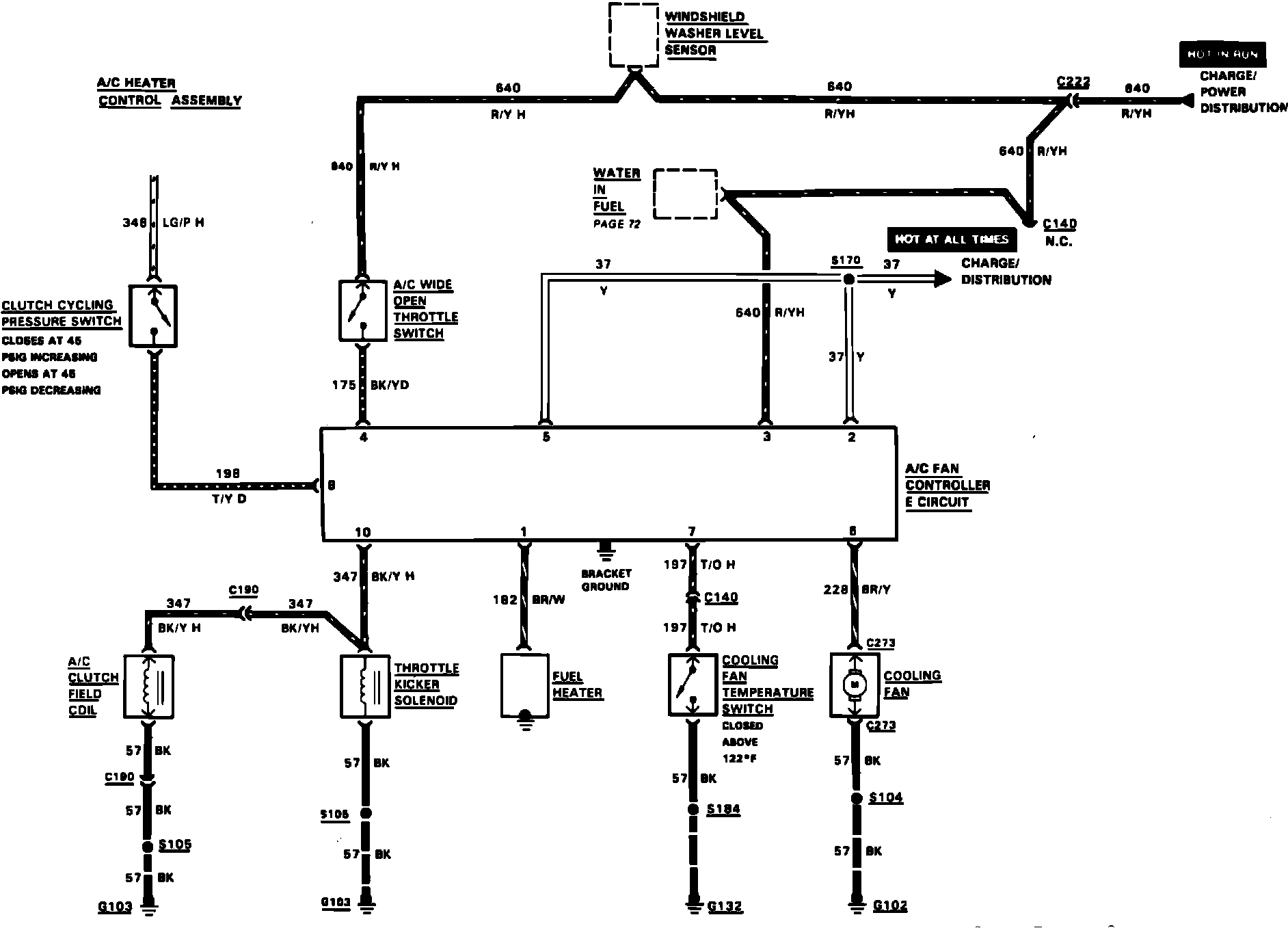

Fig. 8 Air Conditioning & Heater Cooling Fan Wiring Circuit. 1985 Diesel Engine W/Manual Transaxle:
