Parking Lamp
>>
EXP Models
>>
With Graphic Display
With Graphic Display

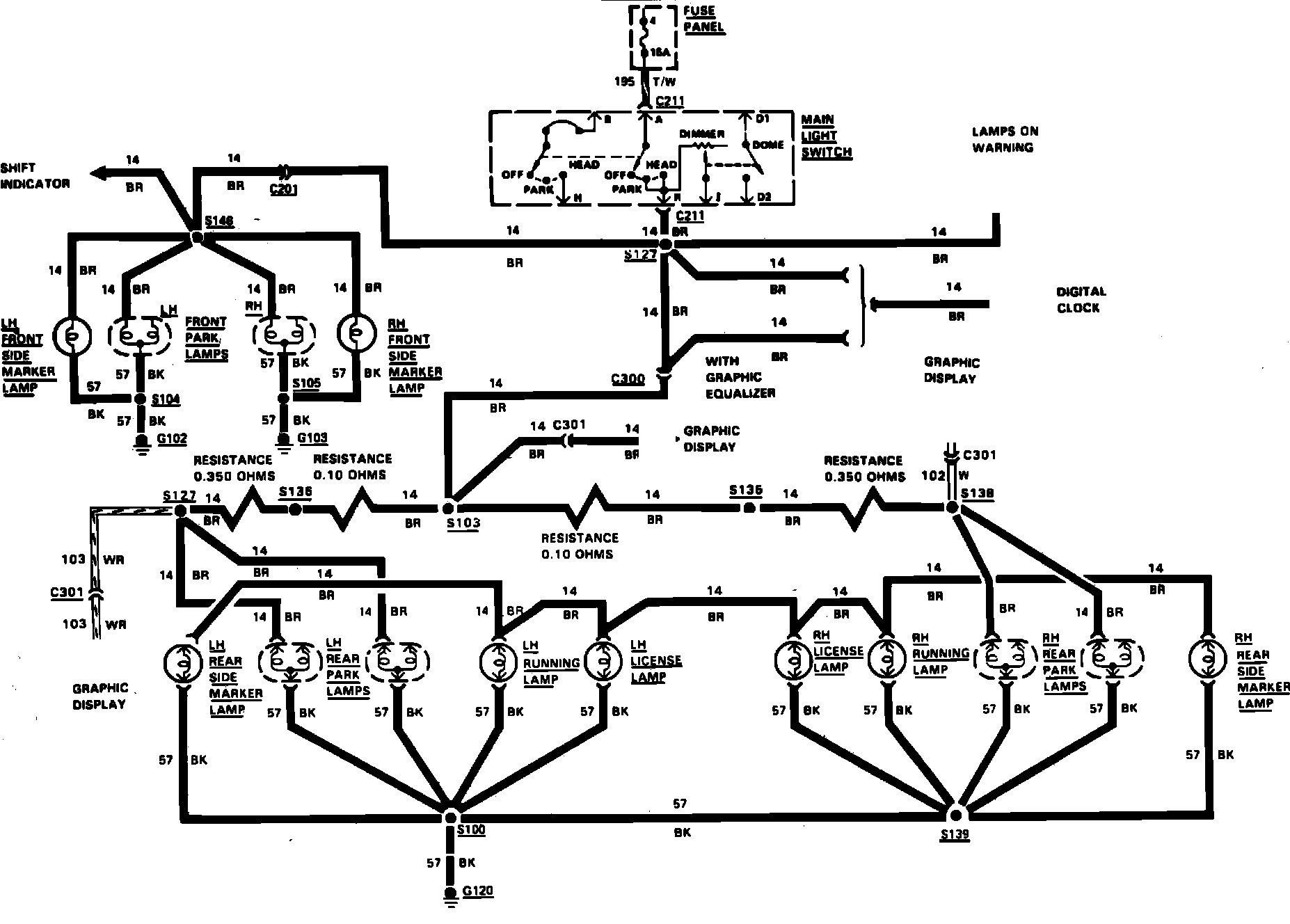

Fig. 40 License marker & Parking Lamps Wiring Circuit (With Graphic Display). 1985 EXP:
