Less Graphic Display

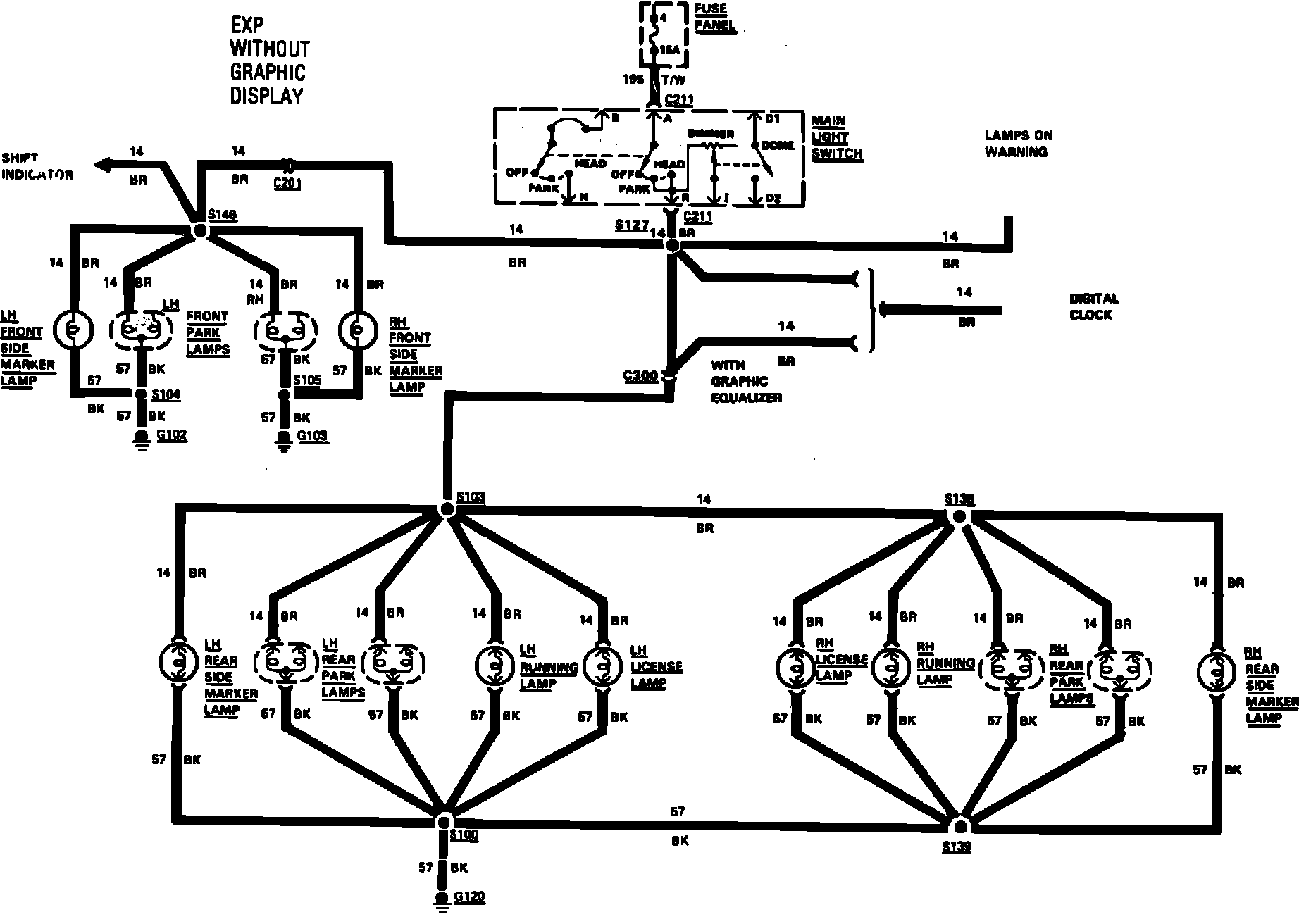

Fig. 39 License marker & Parking Lamps Wiring Circuit (Less Graphic Display). 1985 EXP:
