Stereo System, With Premium Sound, Less Graphic Equalizer
Stereo System, With Premium Sound, Less Graphic Equalizer

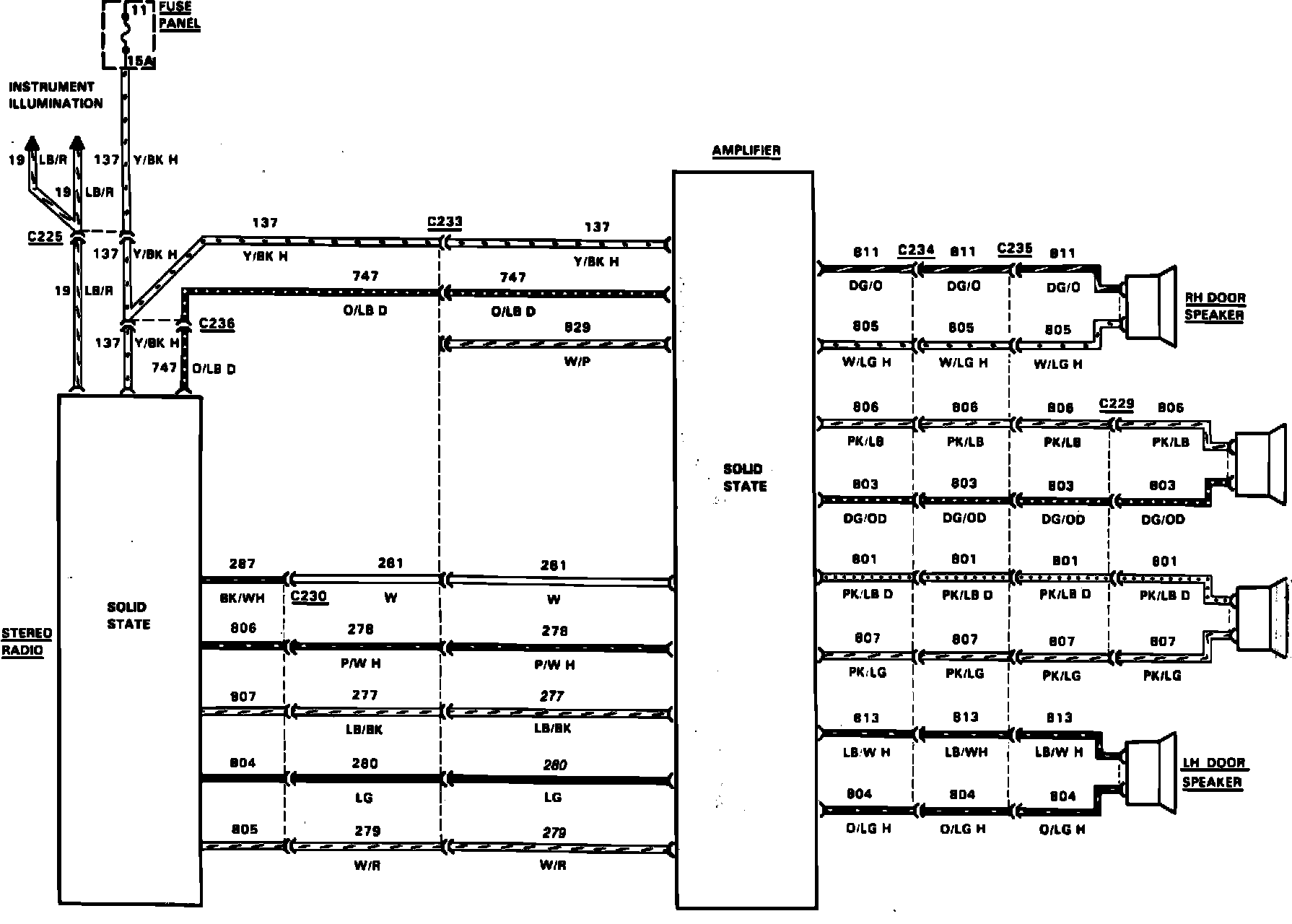

Fig. 48 Radio Wiring Circuit (Stereo System, With Premium Sound, Less Graphic Equalizer). 1985:
