Float Drop

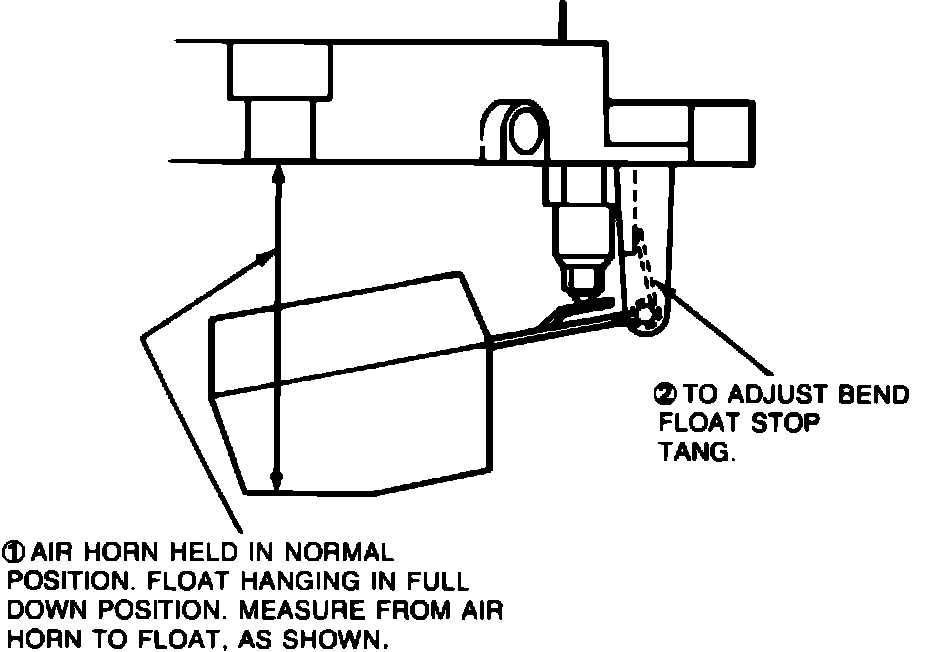

Fig. 6 Float drop adjustment:

1. Suspend air horn assembly in normal position with air horn gasket removed, Fig. 6.
2. Measure distance between air horn and bottom of float, Fig. 6.
3. Adjust clearance to specifications by removing float and bend float level adjusting tank up or down as necessary.
