Home >> Mercury >> 1985 >> Lynx L4-116 1.9L VIN 9 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

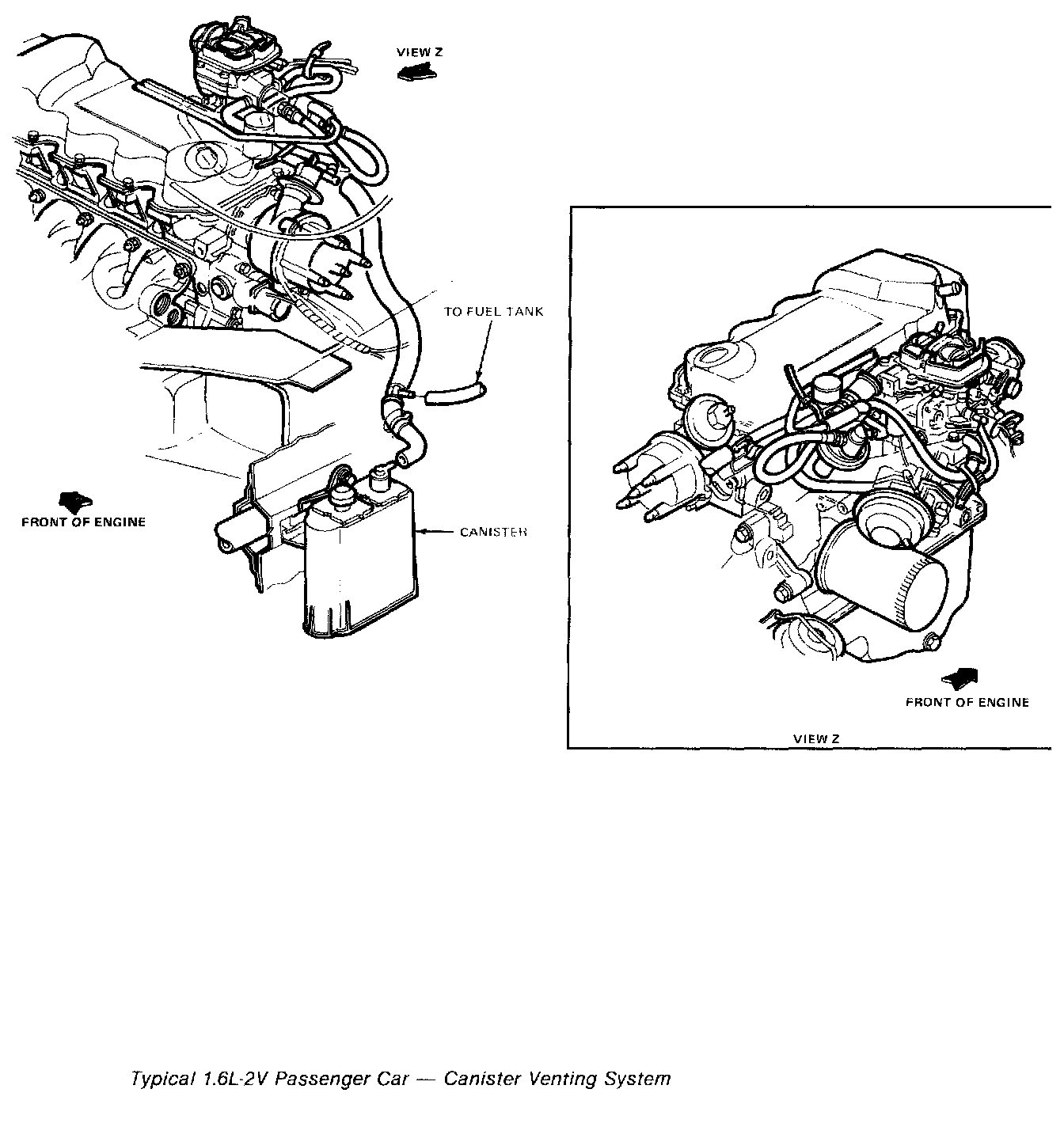

Emission Control Systems: Locations






1985 1.6/1.9 L 2 barrel
