Electrical Diagrams

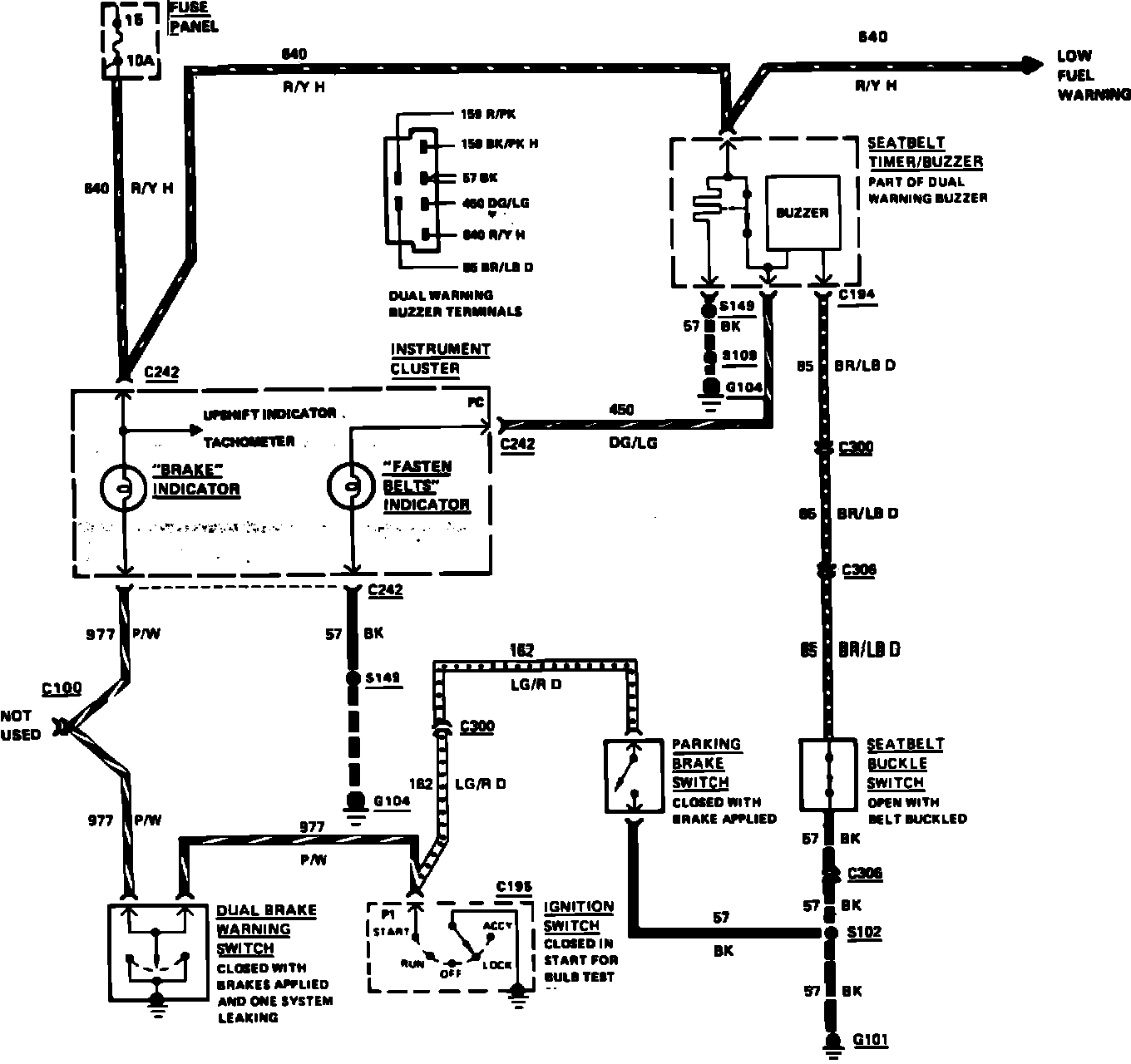

Fig. 56 Warning Indicators Wiring Circuit (Part 1 of 2). 1985 Gasoline Engine:

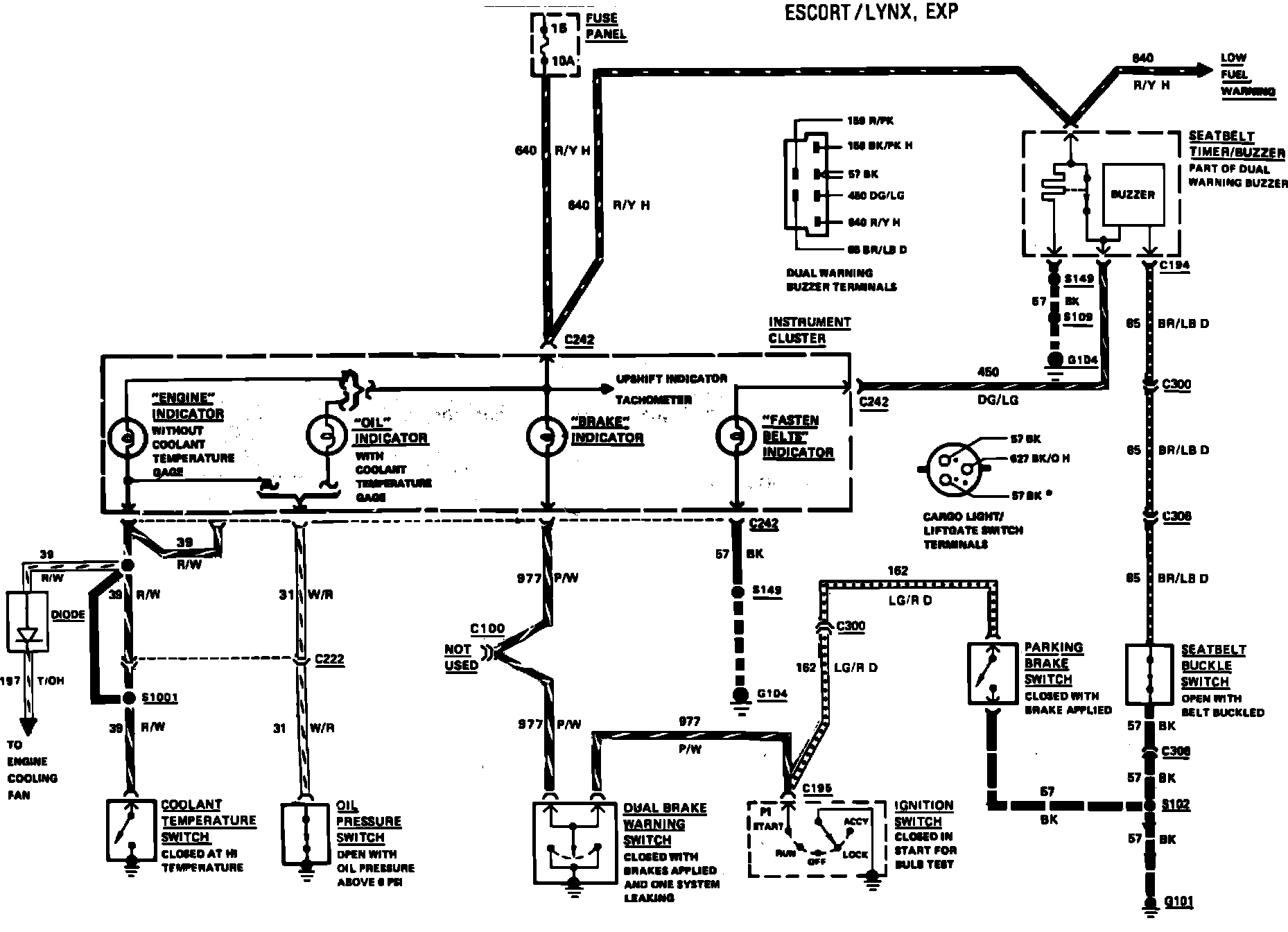

Fig. 56 Warning Indicators Wiring Circuit (Part 2 of 2). 1985 Gasoline Engine:
