Illumination Wiring Circuit (With Console & Graphic Equalizer)

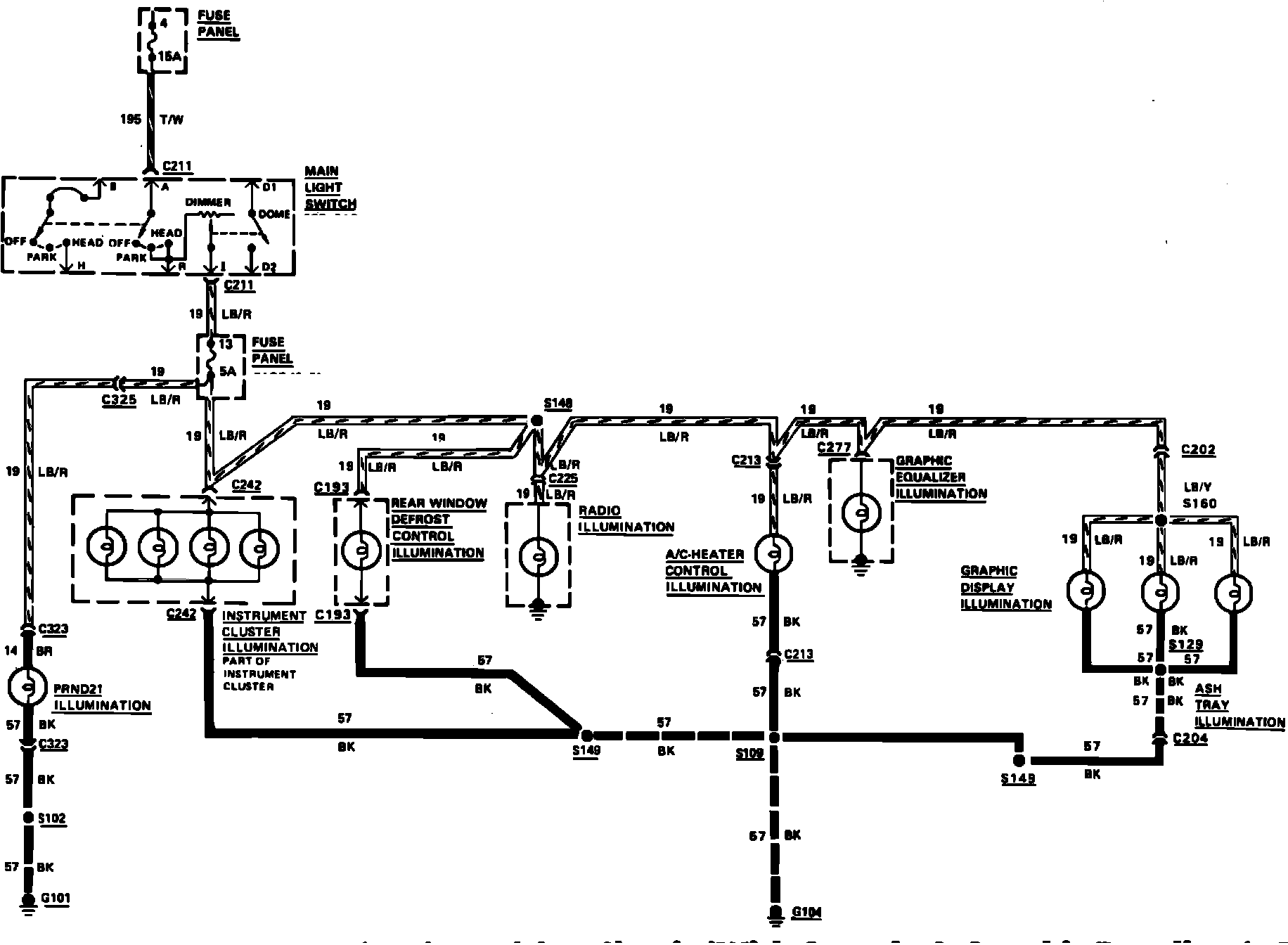

Fig. 37 Instrument Panel Illumination Wiring Circuit (With Console & Graphic Equalizer). 1985:
