Escort & Lynx 3 Door Hatchback

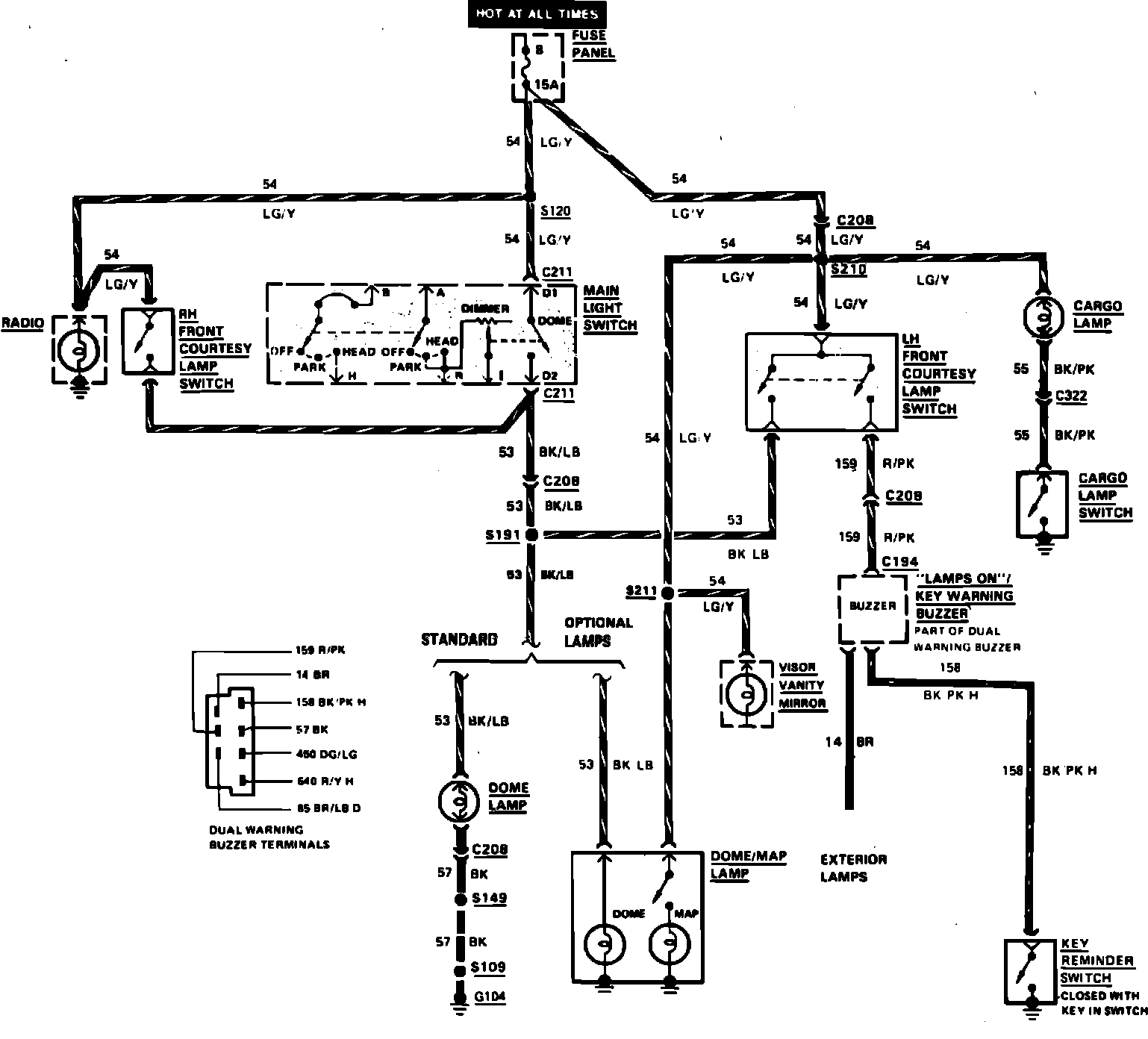

Fig. 15 Courtesy Lamps, Key Warning & Lamps On Reminder Wiring Circuit. 1985 Escort & Lynx 3 Door Hatchback:
