Home >> Mercury >> 1985 >> Lynx L4-116 1.9L VIN 9 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> Radiator Cooling Fan Motor >> With A/C >> With Manual Transmission

With Manual Transmission

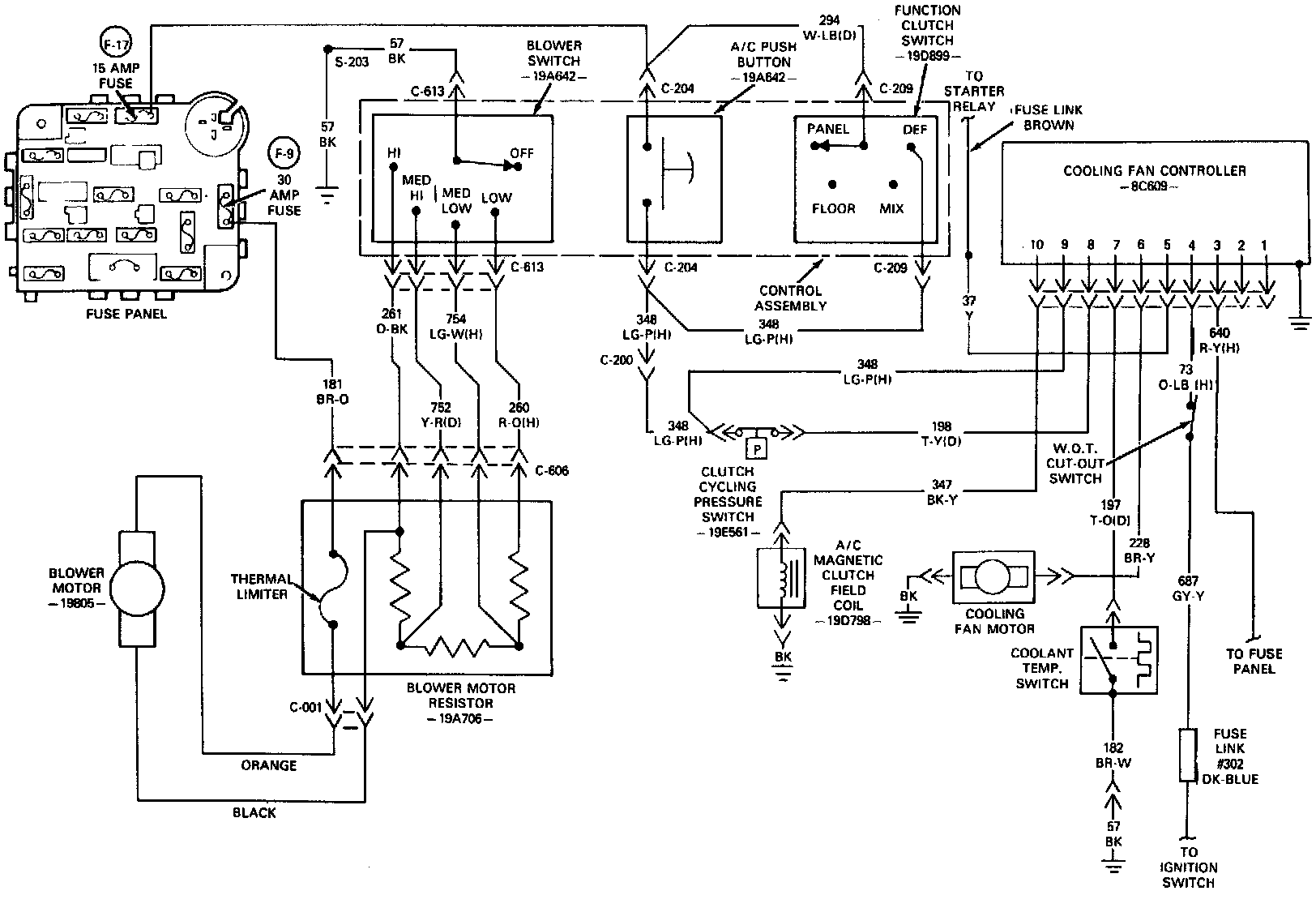

A/C And Cooling Fan:
