Home >> Mercury >> 1985 >> Grand Marquis V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> Sedan

Sedan

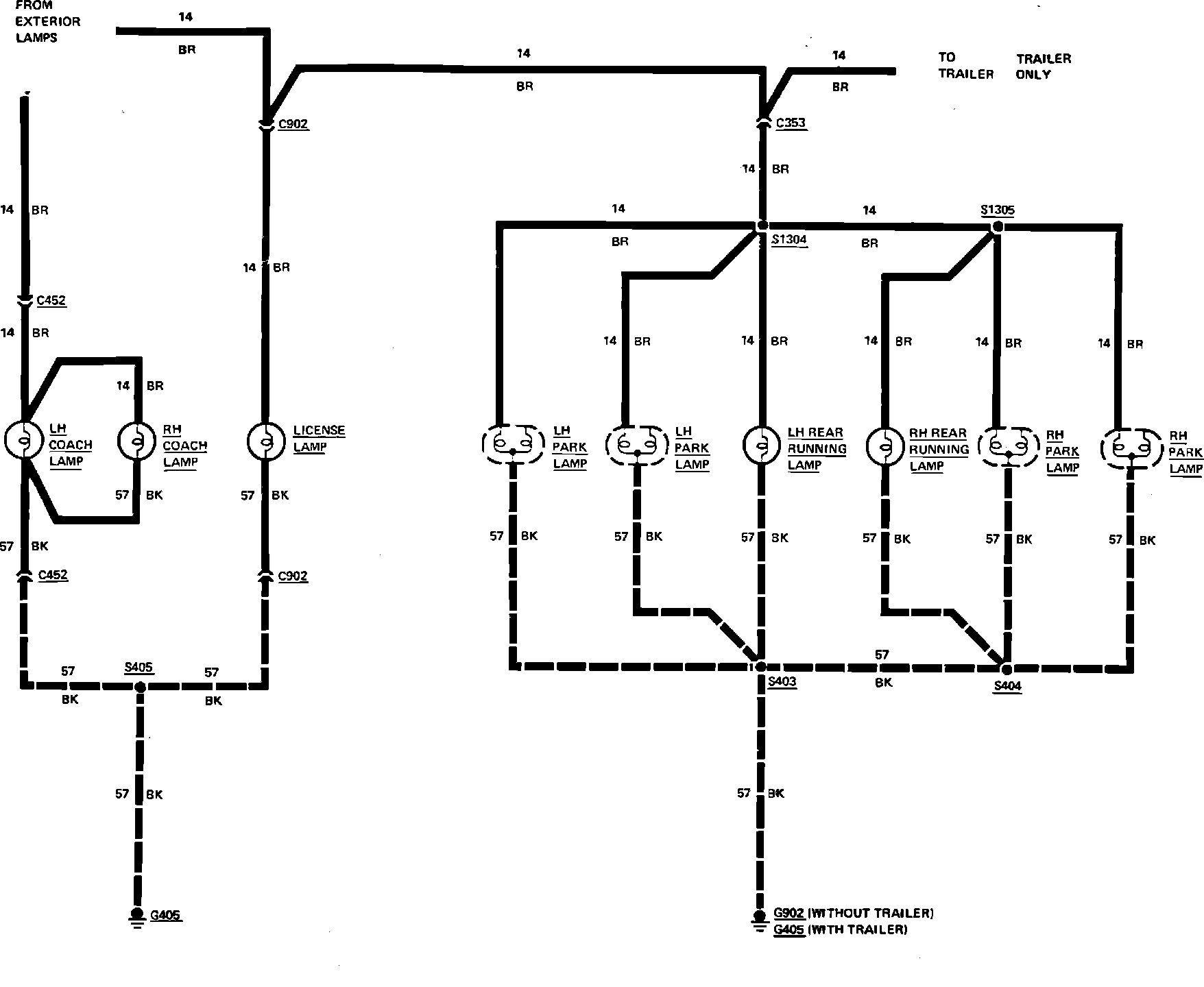

Fig. 59 Rear Exterior Lamps Wiring Circuit. 1985 Grand Marquis Sedan:
