Heated Glass Element: Diagrams

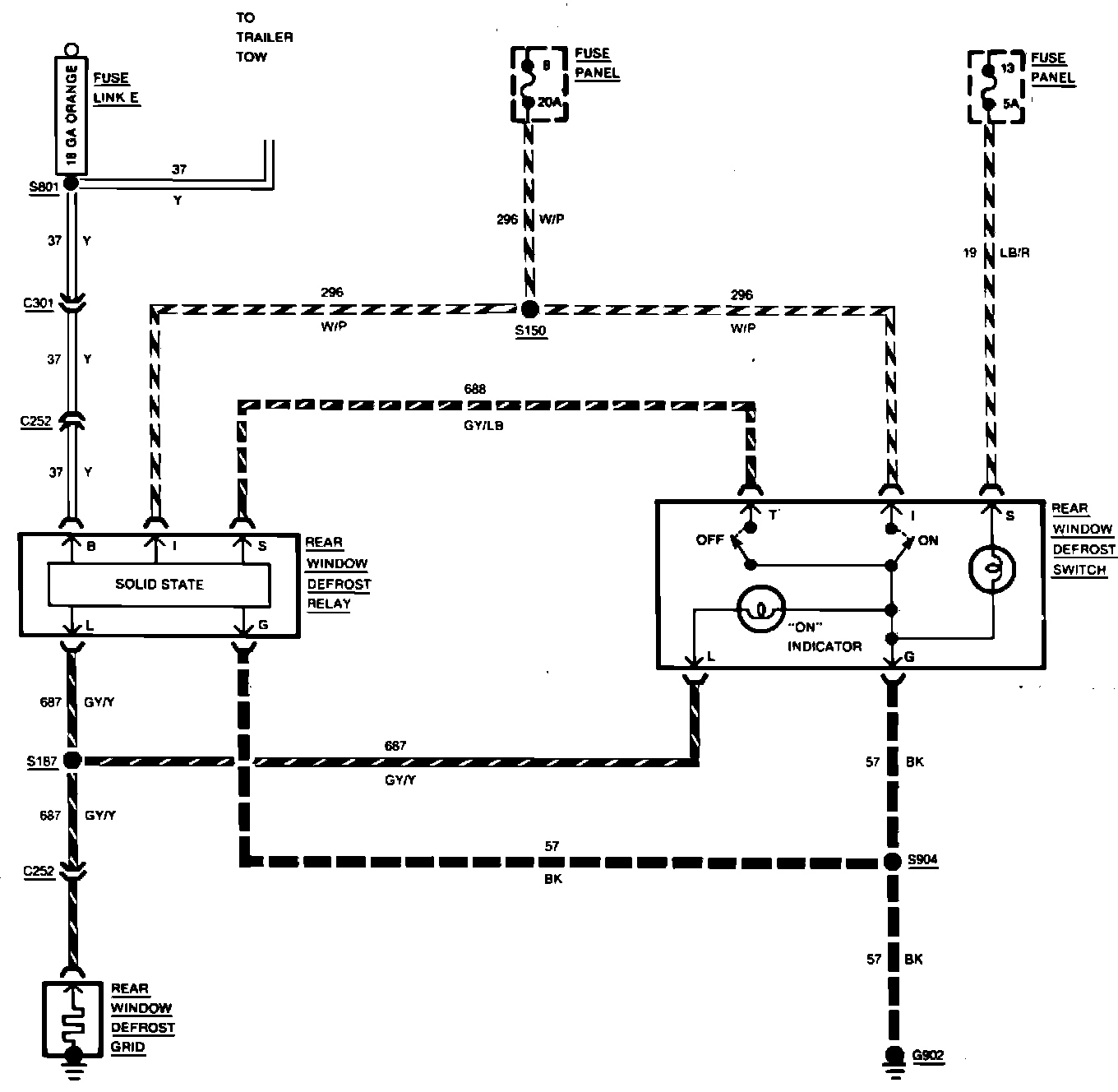

Fig. 67 Rear Window Defroster Wiring Circuit (With Electronic ATC). 1985:
