Tachometer: Testing and Inspection

Enter test mode by hoding GAUGES button in and turning ignition from OFF to RUN. Advance through tests by completing watch dog test or turning ignition OFF. A steady tone and eight bars lit on tachometer bar graph display indicates that the test is passed. No tone and 24 bars lit on tachometer bar graph display indicates a failed test. The test number is indicated by the number of bars lit on the multigauge.

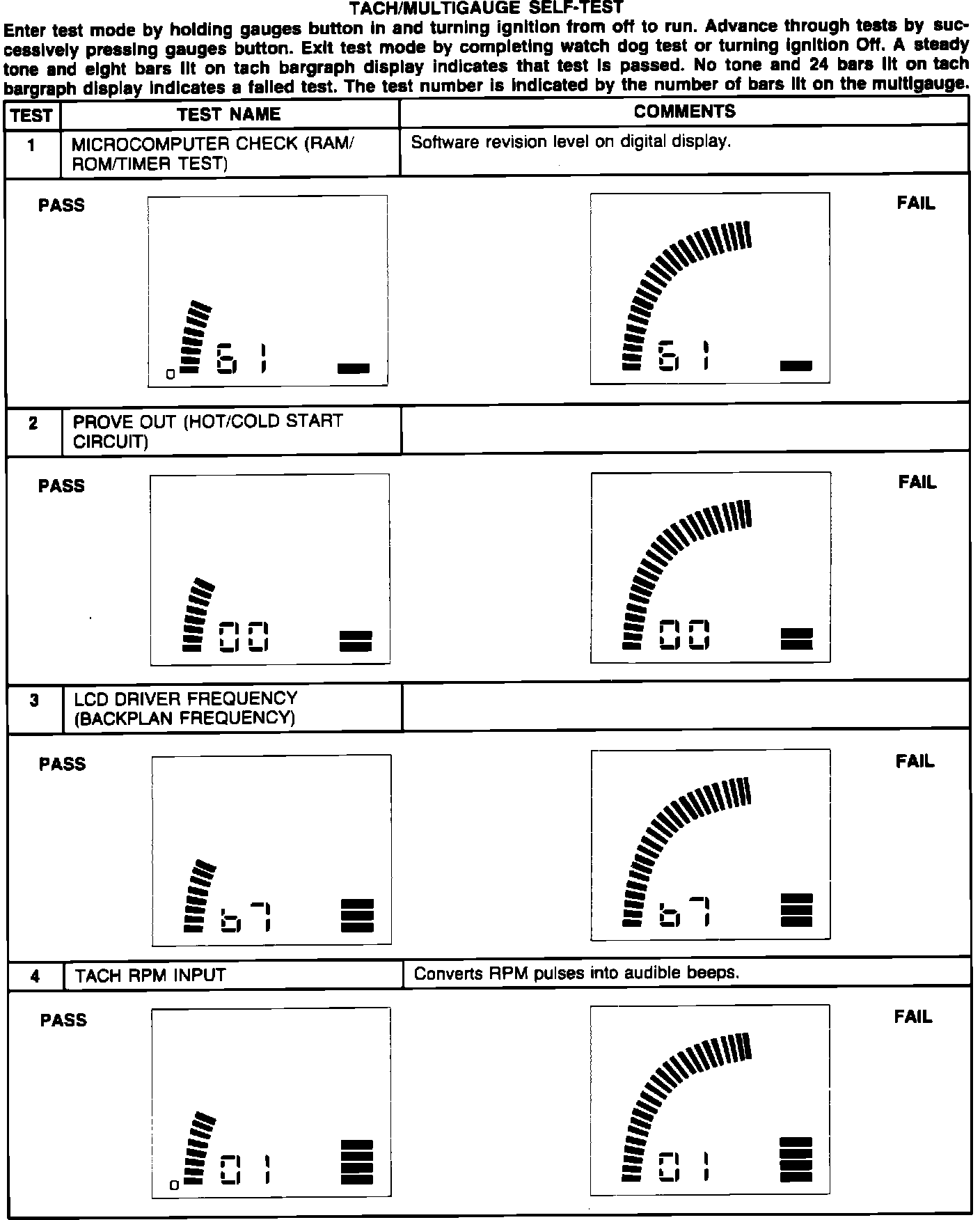

TEST 1 - 4

Tachometer/Multigauge Self Test:

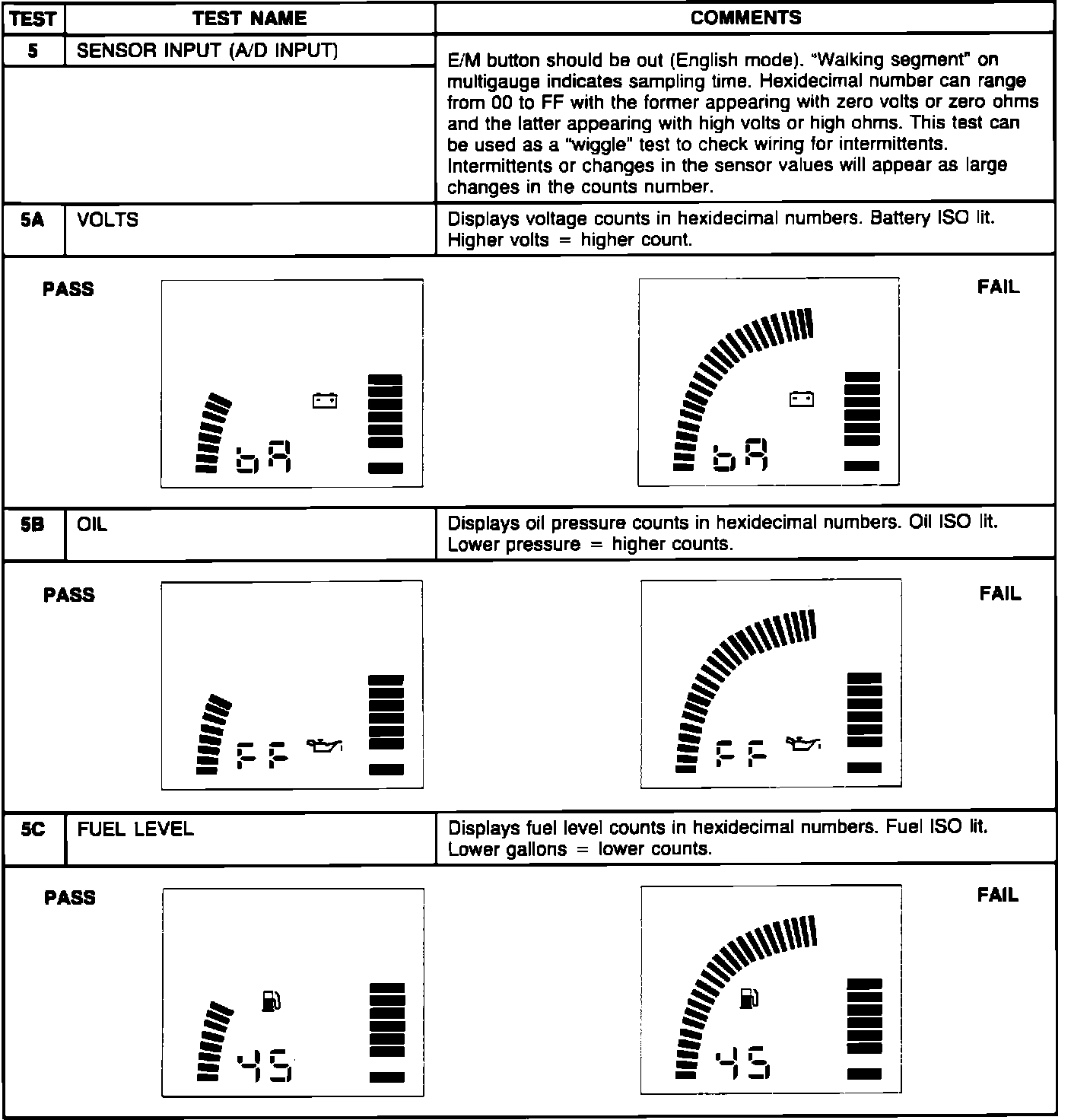

TEST 5 - 5C

Tachometer/ Multigauge Self Test (continued):

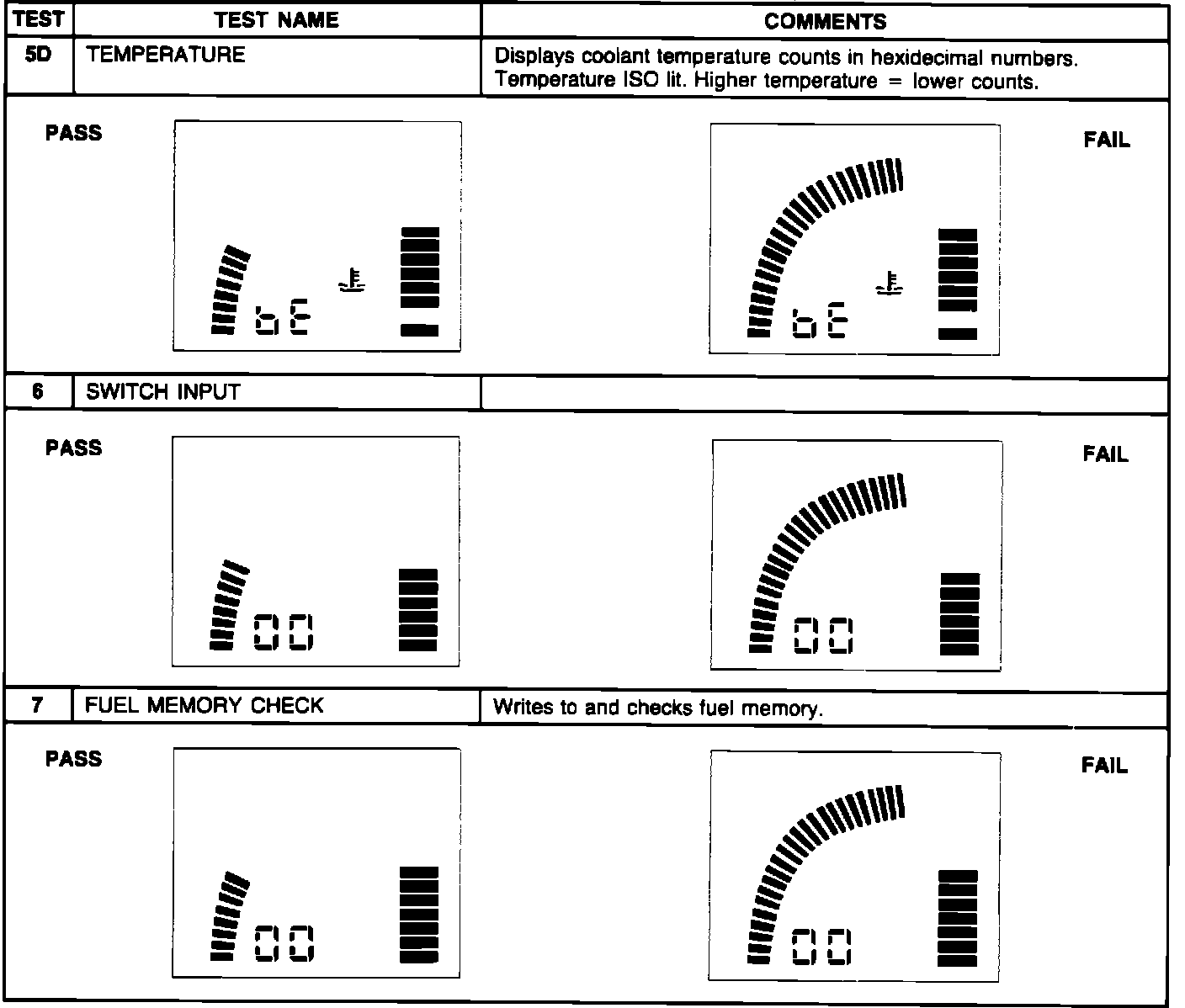

TEST 5D - 7

Tachometer/ Multigauge Self Test (continued):

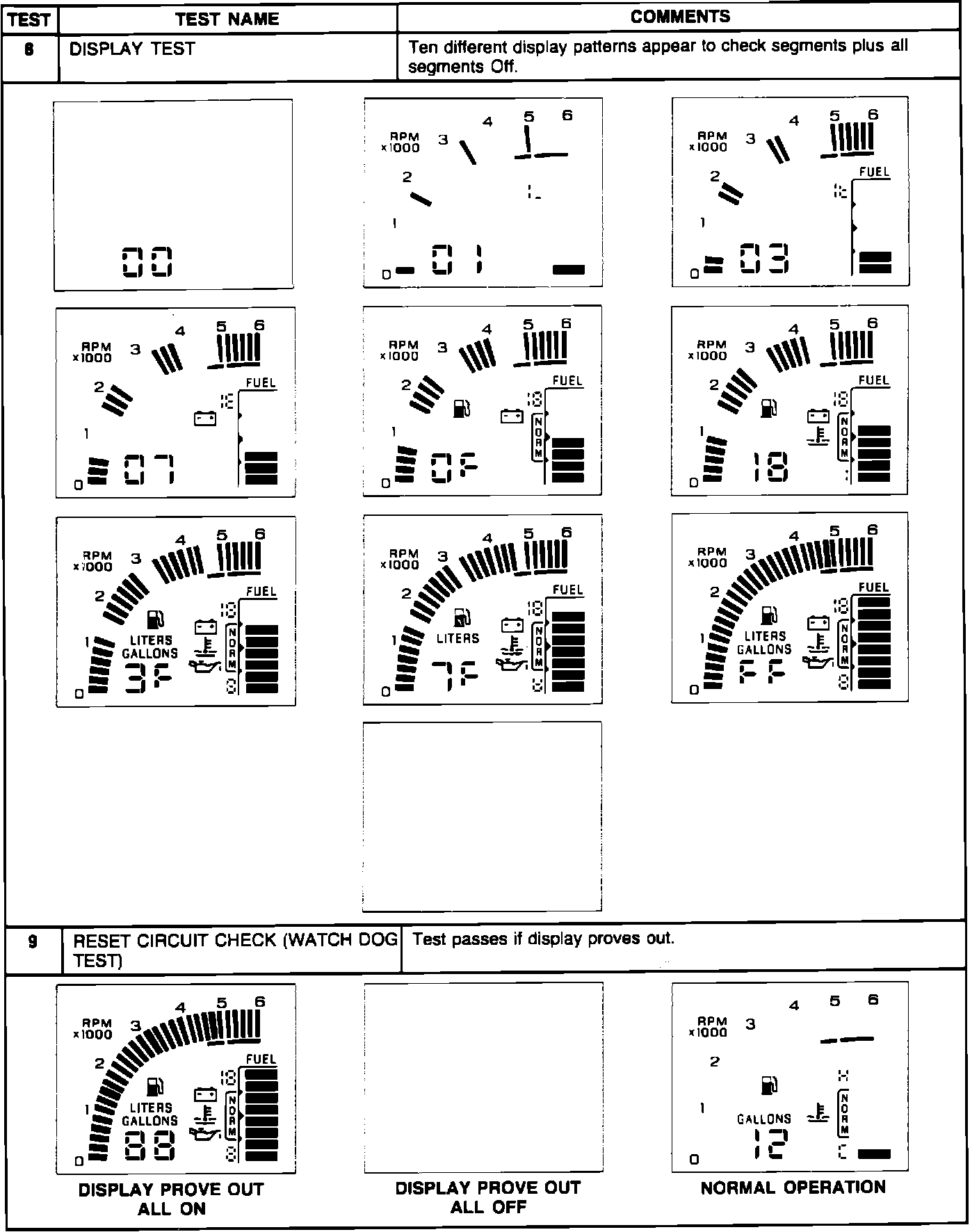

TEST 8 - 9

Tachometer/Multigauge Self Test (continued):
