Mercury
>>
1985
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Lamps and Indicators - Engine
>>
Oil Level Warning Indicator
>>
Diagrams
>>
Low Oil Level and Dash Warning Indicators
Low Oil Level and Dash Warning Indicators

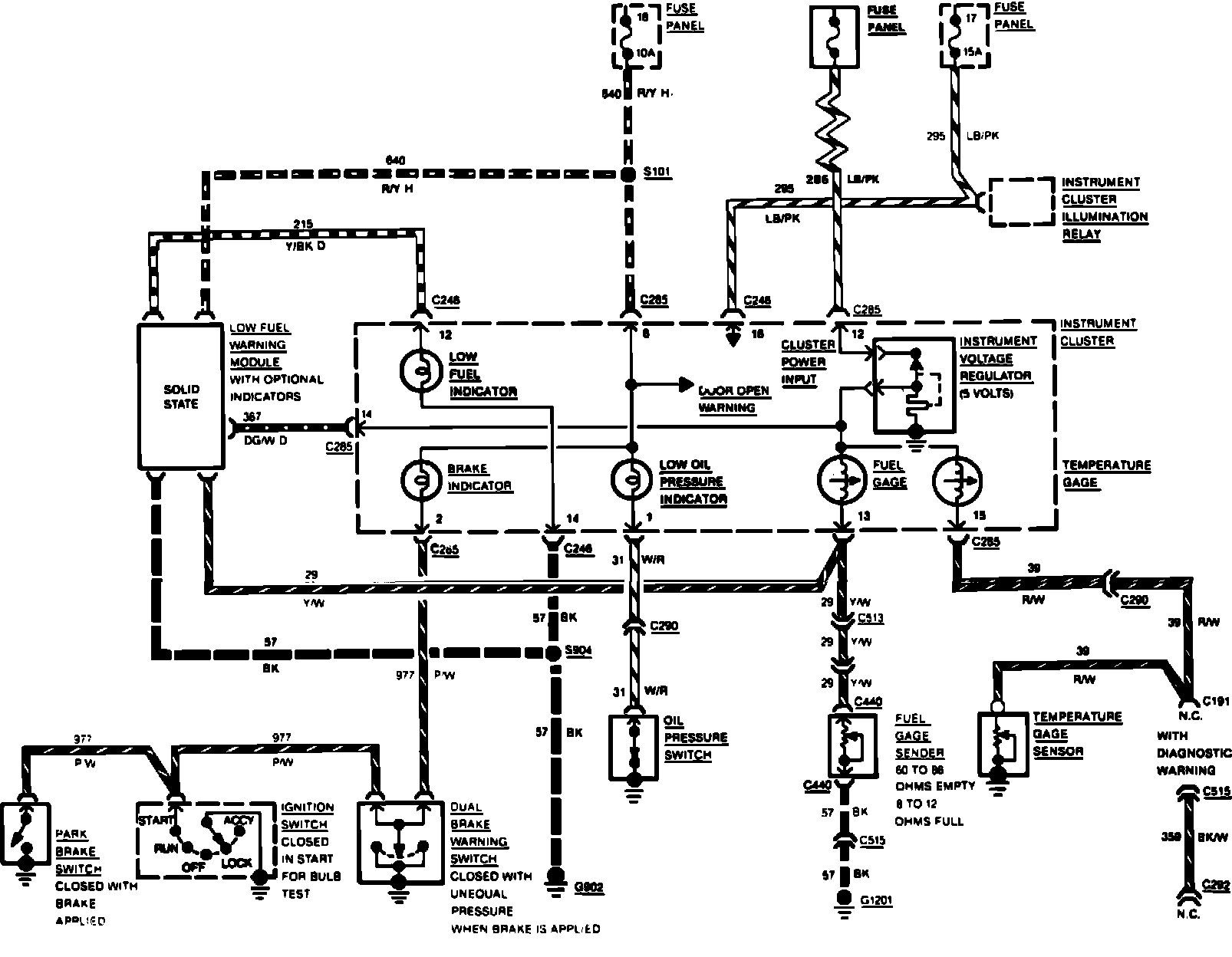

Fig. 13 Brake, Low Fuel, Oil Pressure & Temperature Gauge Wiring Circuit (Less Electronic Cluster). 1985 3.8 Litre & 5.0 Litre Engines:
