Premium Sound (Electronic Search)

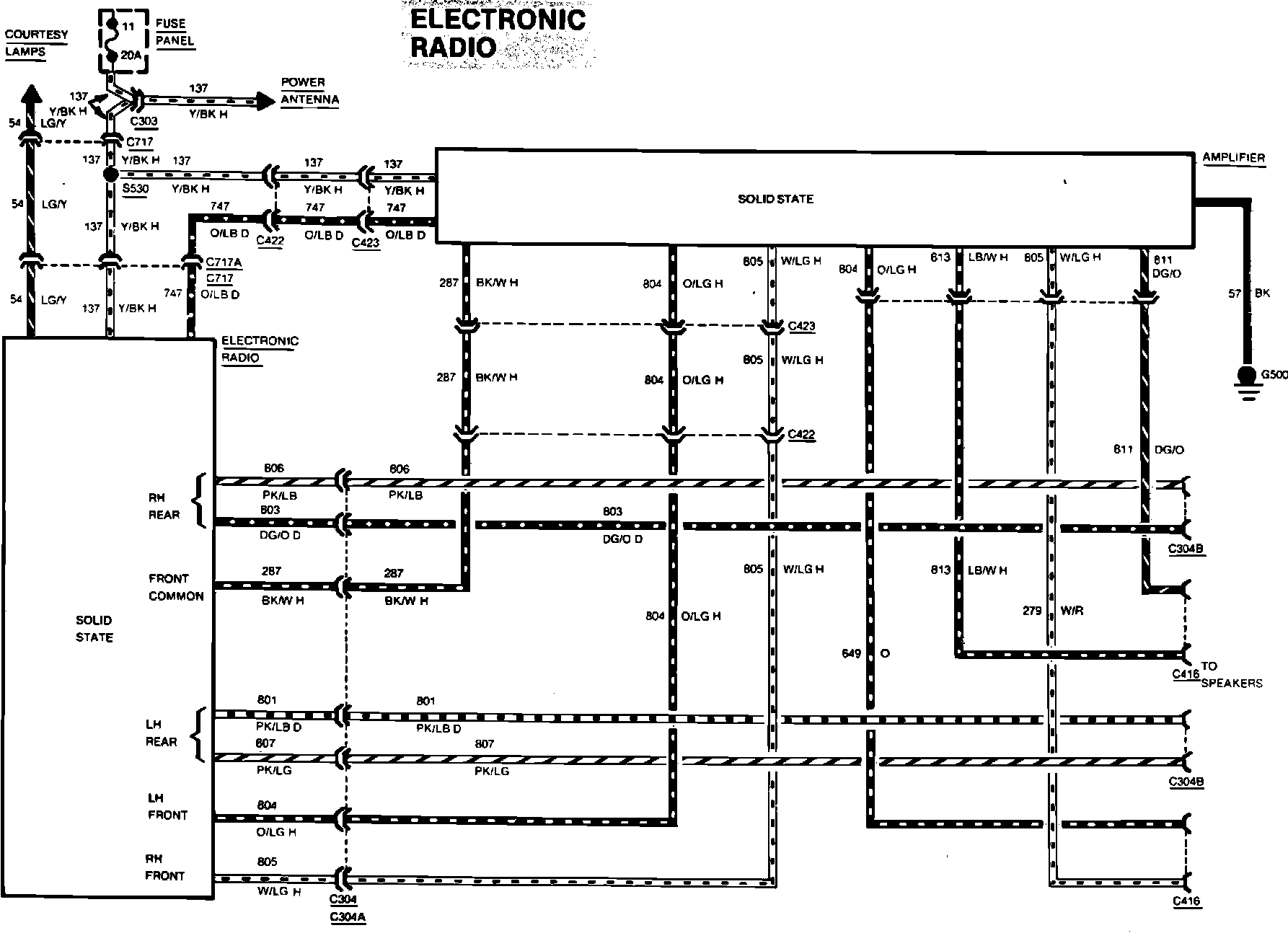

Fig. 63 Radio Wiring Circuit (With Premium Sound, Electronic). 1985:
