Premium Sound & Graphic Equalizer

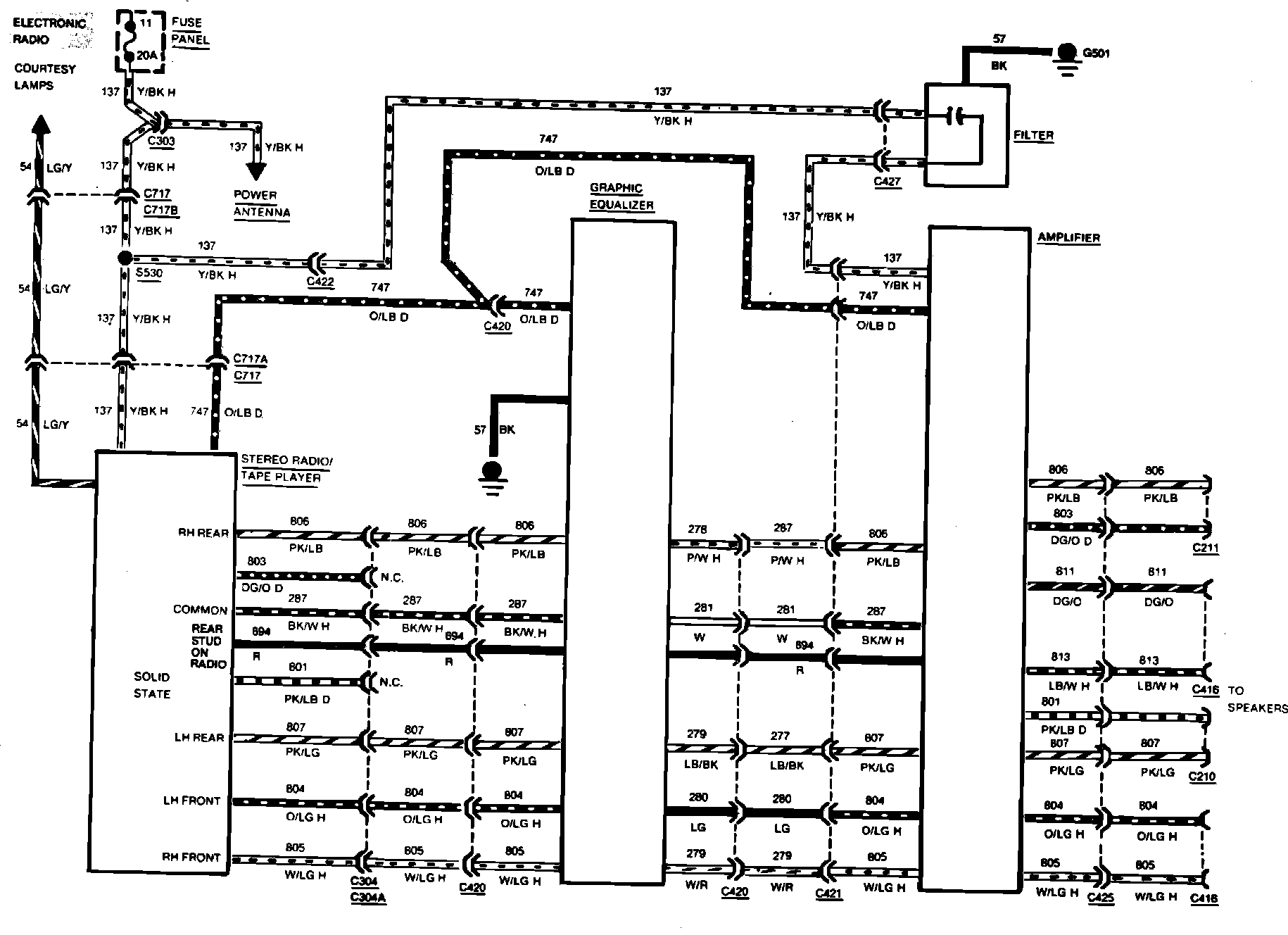

Fig. 64 Radio Wiring Circuit (With Premium Sound & Graphic Equalizer). 1985:
