Part 1 of 2

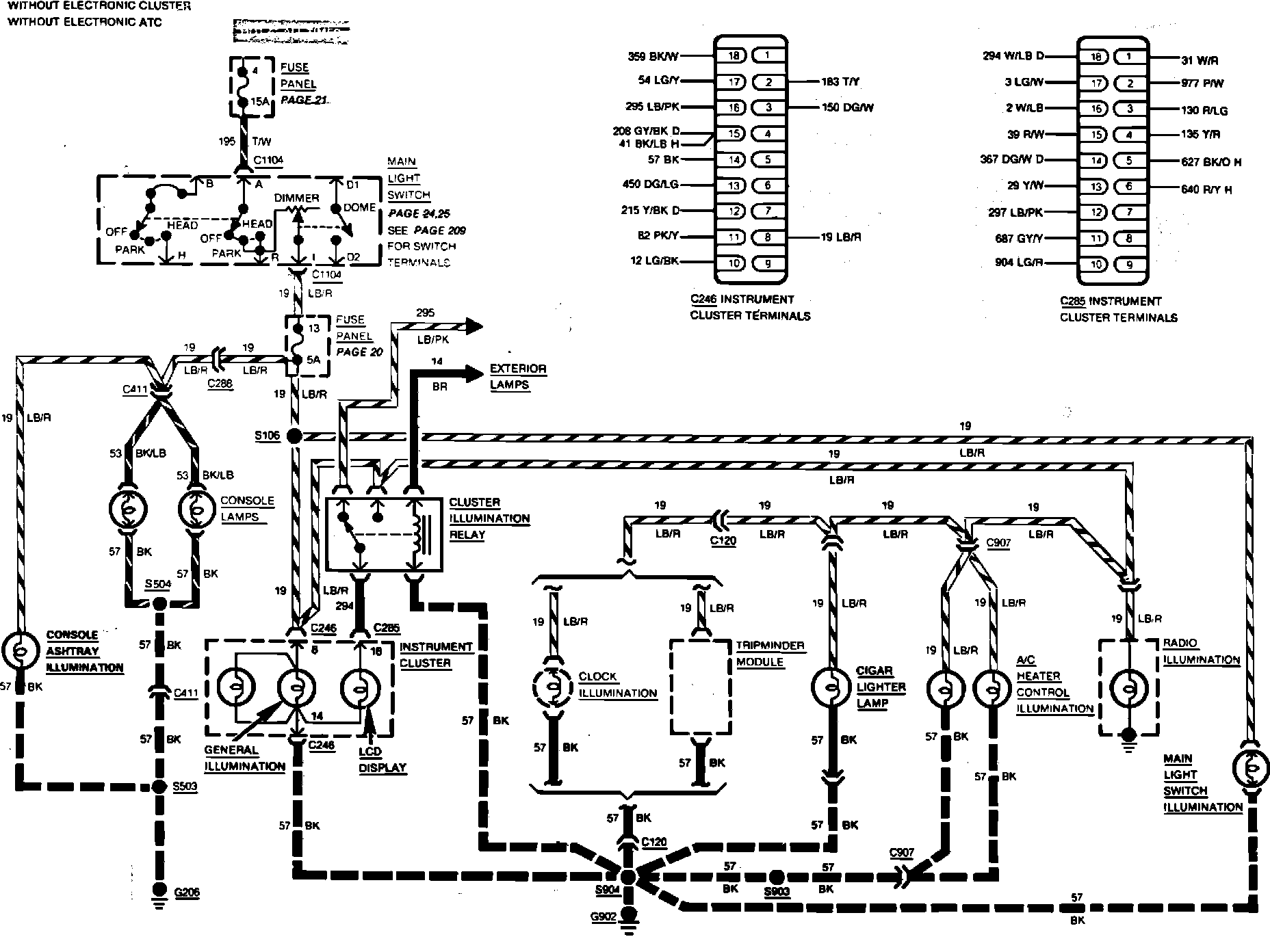

Fig. 42 Instrument Illumination Wiring Circuit (Part 1 of 2). 1985 3.8 Litre & 5.0 Litre Engines:
