Drive Belts - Installation Revision

85ford05

Article No. 85-5-12


ACCESSORY DRIVE BELTS (2.3L EFI TURBO) - INSTALLATION REVISION TO SHOP MANUAL

FORD 1985 THUNDERBIRD, MUSTANG SVO

LINCOLN-MERCURY 1985 COUGAR

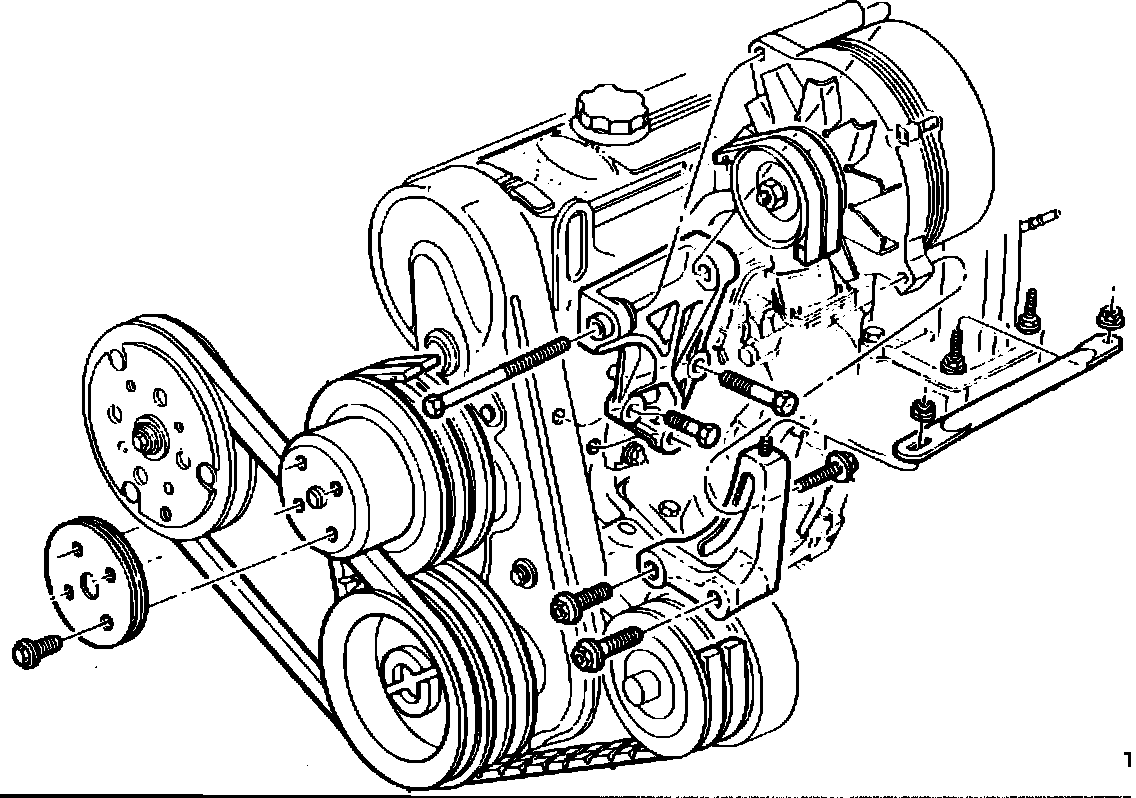

Figure 20 - ACCESSORY DRIVE BELTS INSTALLATION:

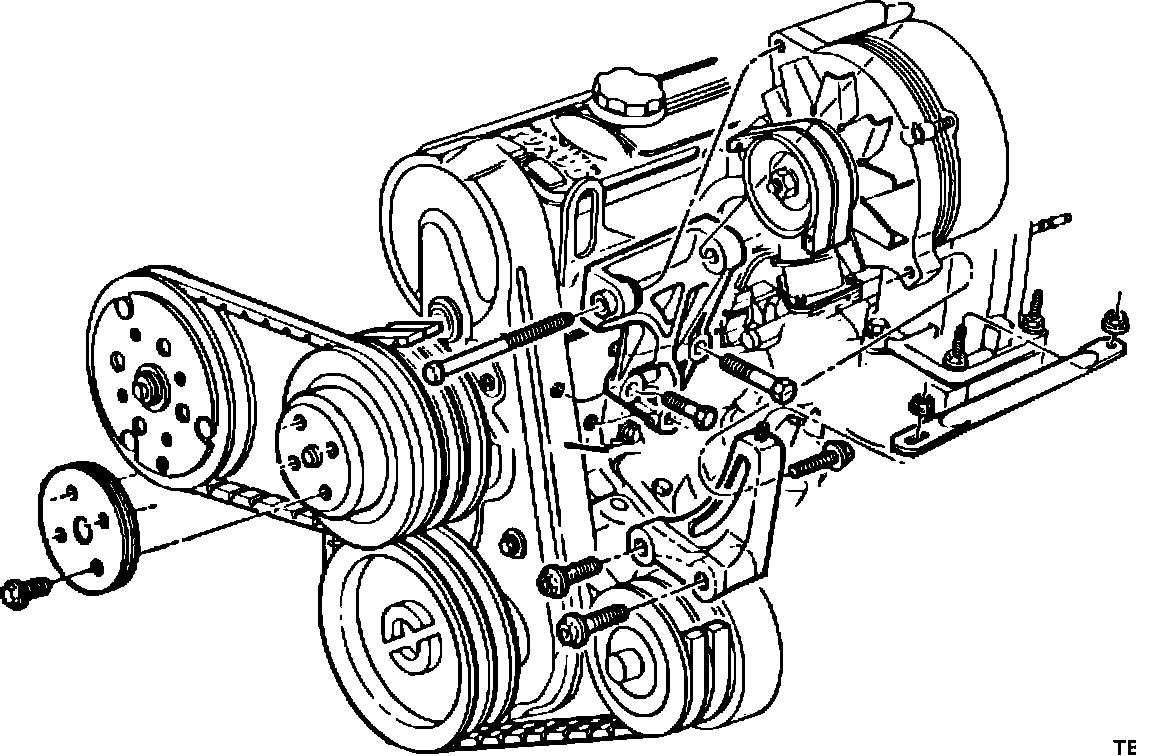

Figure 21 - ACCESSORY DRIVE BELTS INSTALLATION:

Vehicles equipped with air conditioning and automatic transmission have their A/C belts driven off the water pump pulley, as shown in Figure 20.

Vehicles equipped with a manual transmission have their A/C belts driven off the crankshaft pulley, as shown in Figure 21.
A running change is in process at the vehicle assembly plant to assemble all manual transmission vehicles with the belts driven off the water pump.

WARRANTY STATUS: "INFORMATION ONLY"
