With Electronic ATC

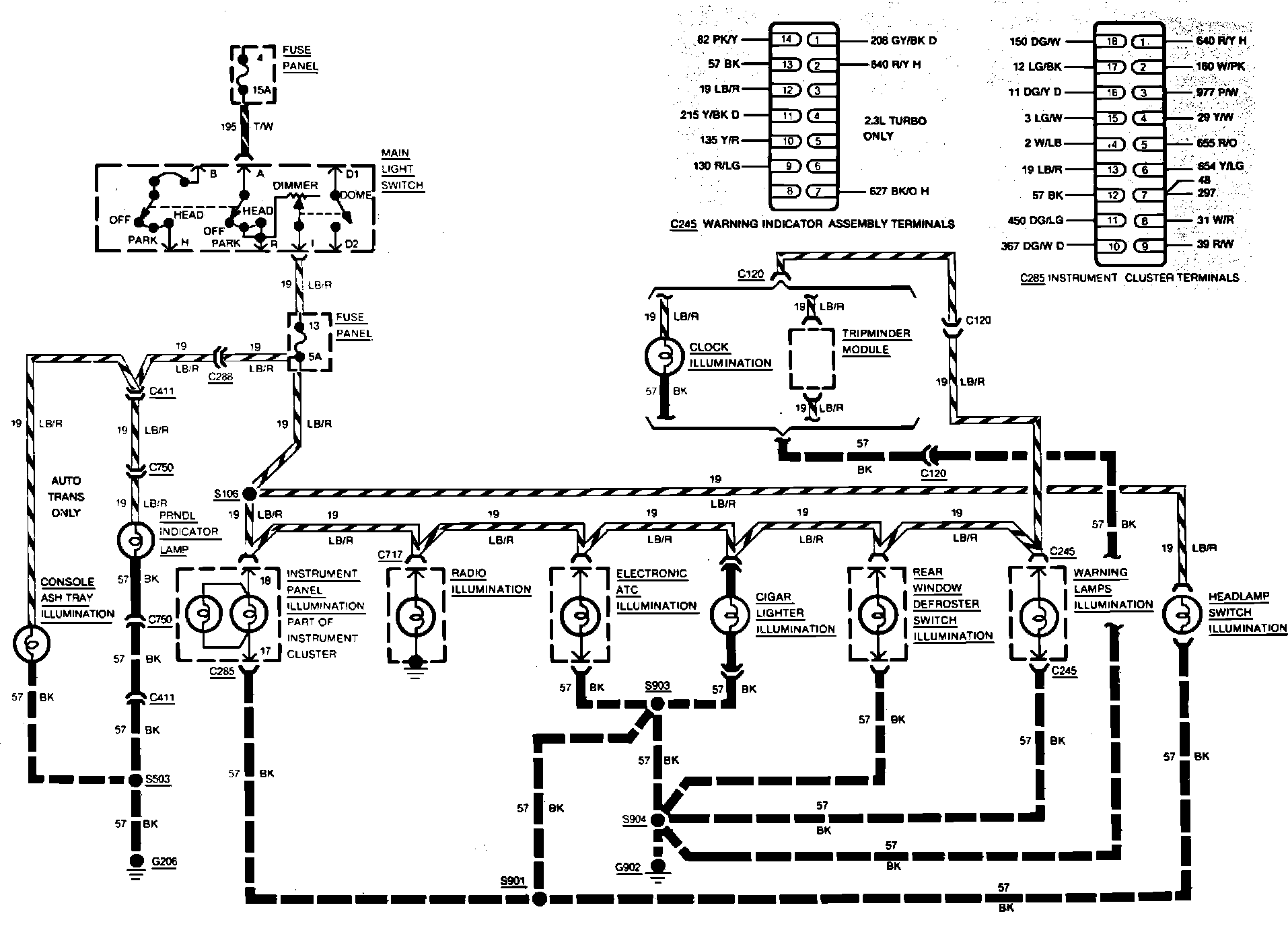

Fig. 41 Instrument Illumination Wiring Circuit (With Electronic ATC). 1985 2.3 Litre Turbo Engine:
