Less Electronic ATC

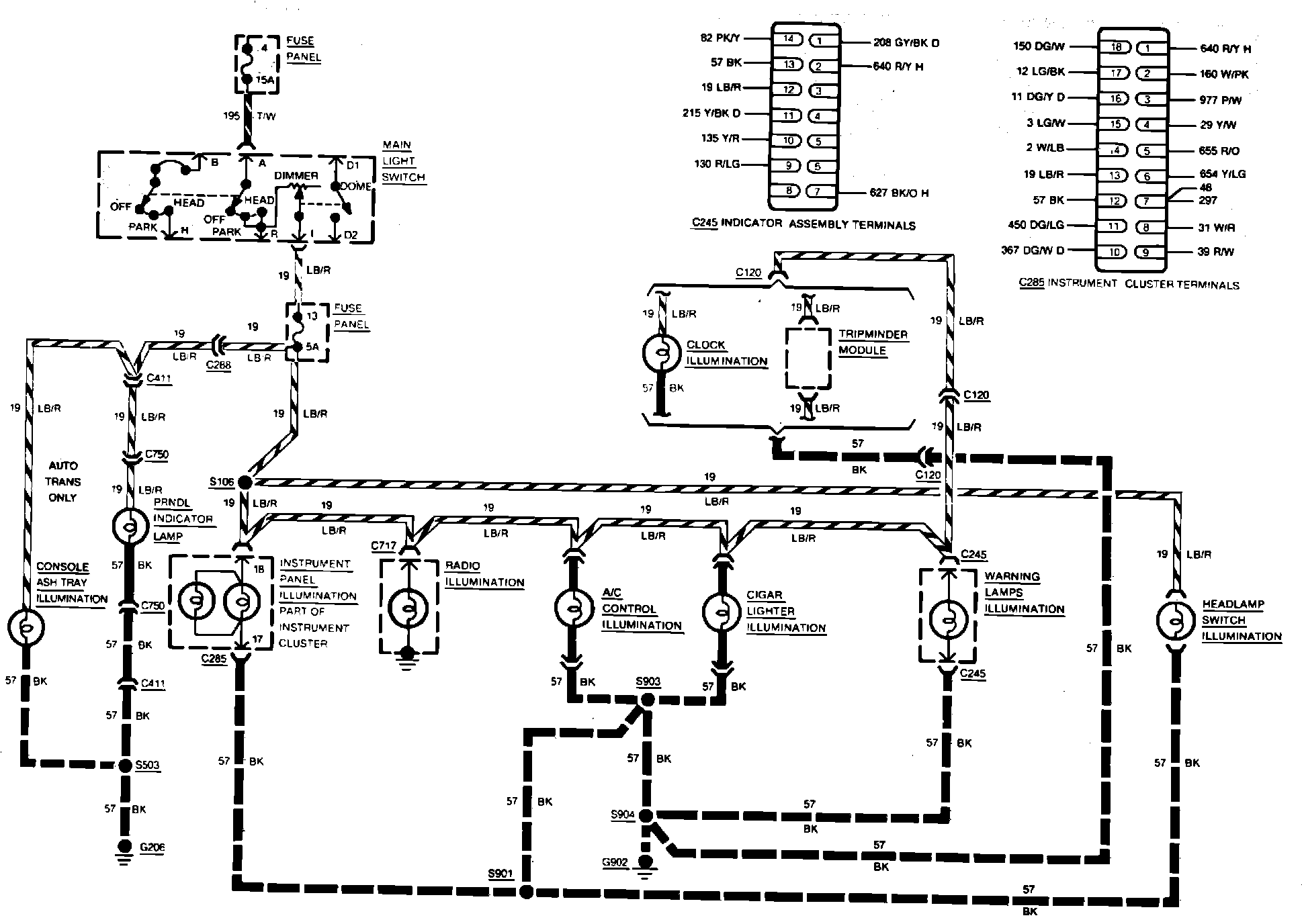

Fig. 40 Instrument Illumination Wiring Circuit (Less Electronic ATC). 1985 2.3 Litre Turbo Engine:
