Brake, Low Fuel, Oil Pressure & Temperature Gauge Wiring
Brake, Low Fuel, Oil Pressure & Temperature Gauge Wiring

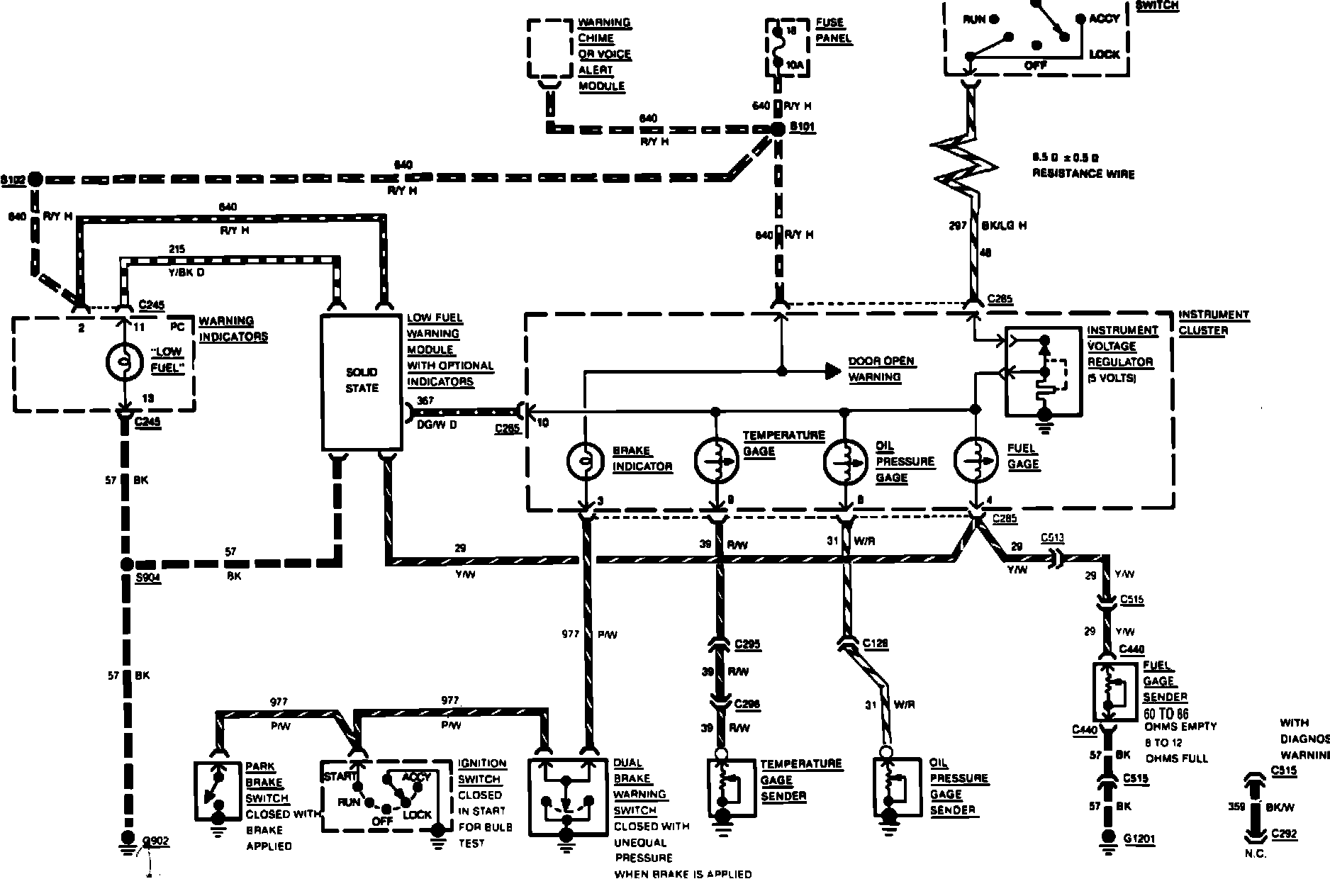

Fig. 12 Brake, Low Fuel, Oil Pressure & Temperature Gauge Wiring Circuit. 1985 2.3 Litre Turbo Engine:
