Home >> Mercury >> 1985 >> Cougar/XR7 L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Electronic Climate Control >> Part 2 of 2

Part 2 of 2

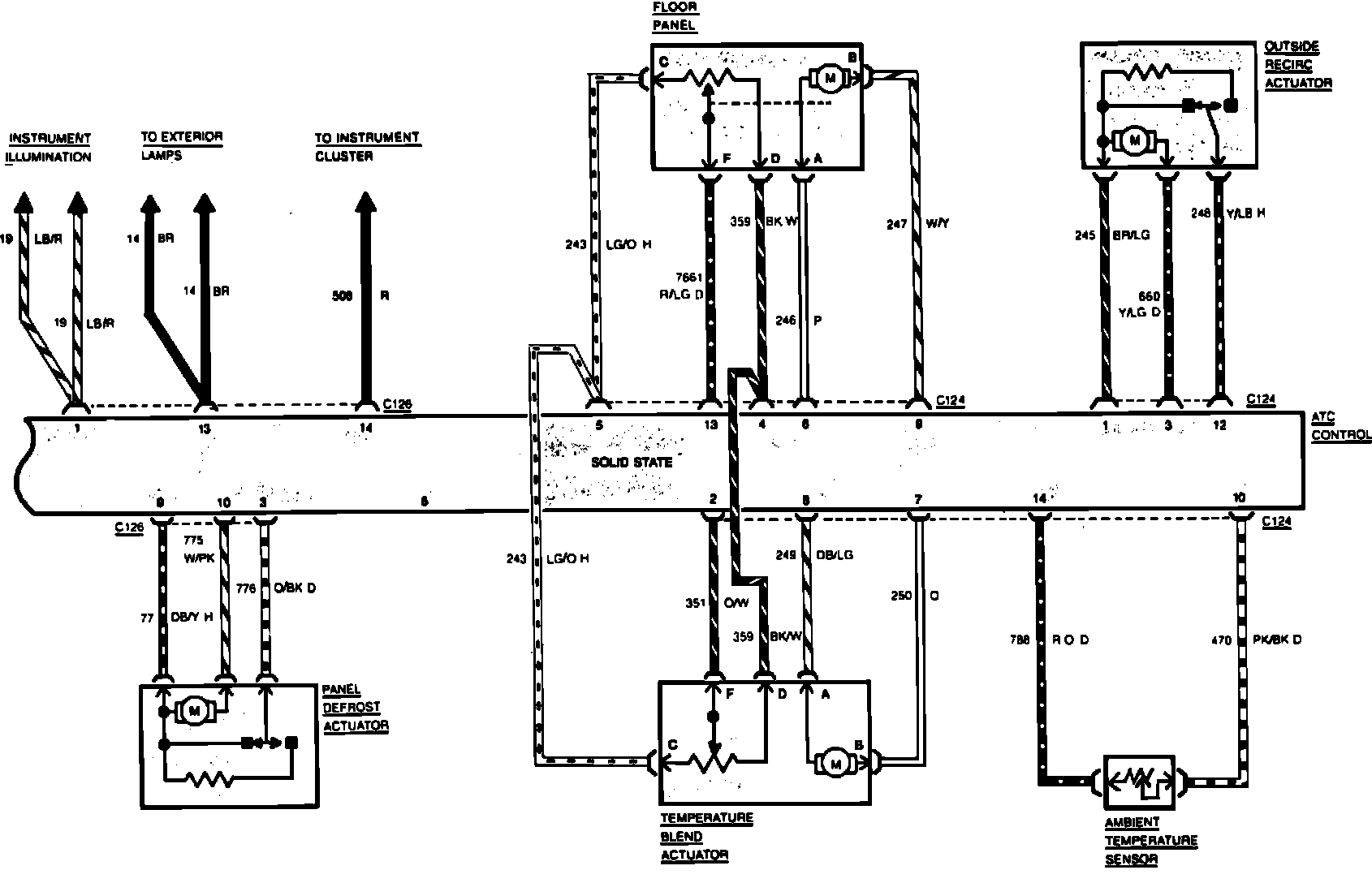

Air Conditioning Wiring Circuit (Auto Temperature Control, Part 2 of 2).:
