Speed Control Vacuum and Wiring Circuit

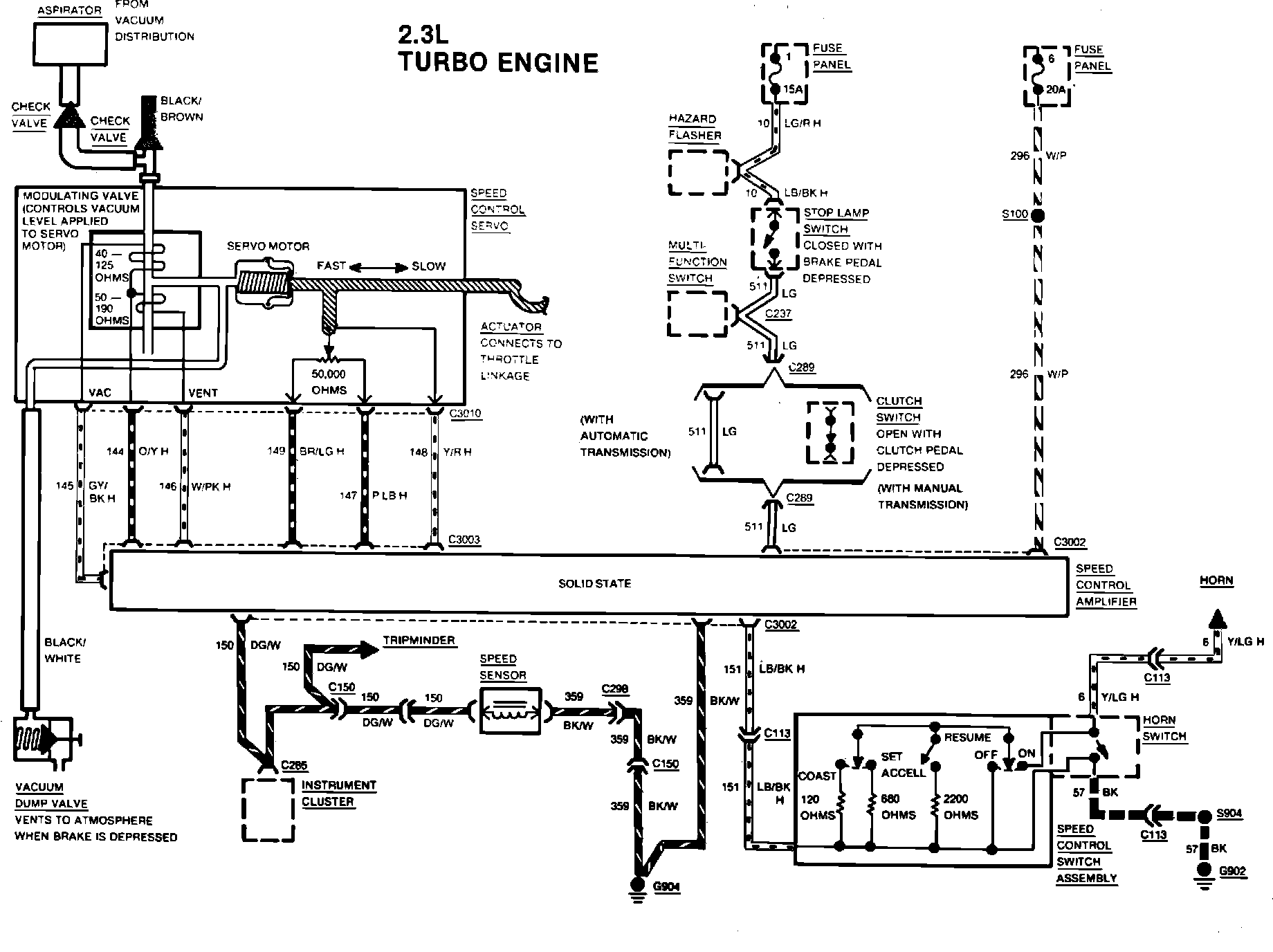

Fig. 68 Speed Control Wiring Circuit. 1985 2.3 Litre Turbo Engine:
