(G405) Sedan With Trailer Option

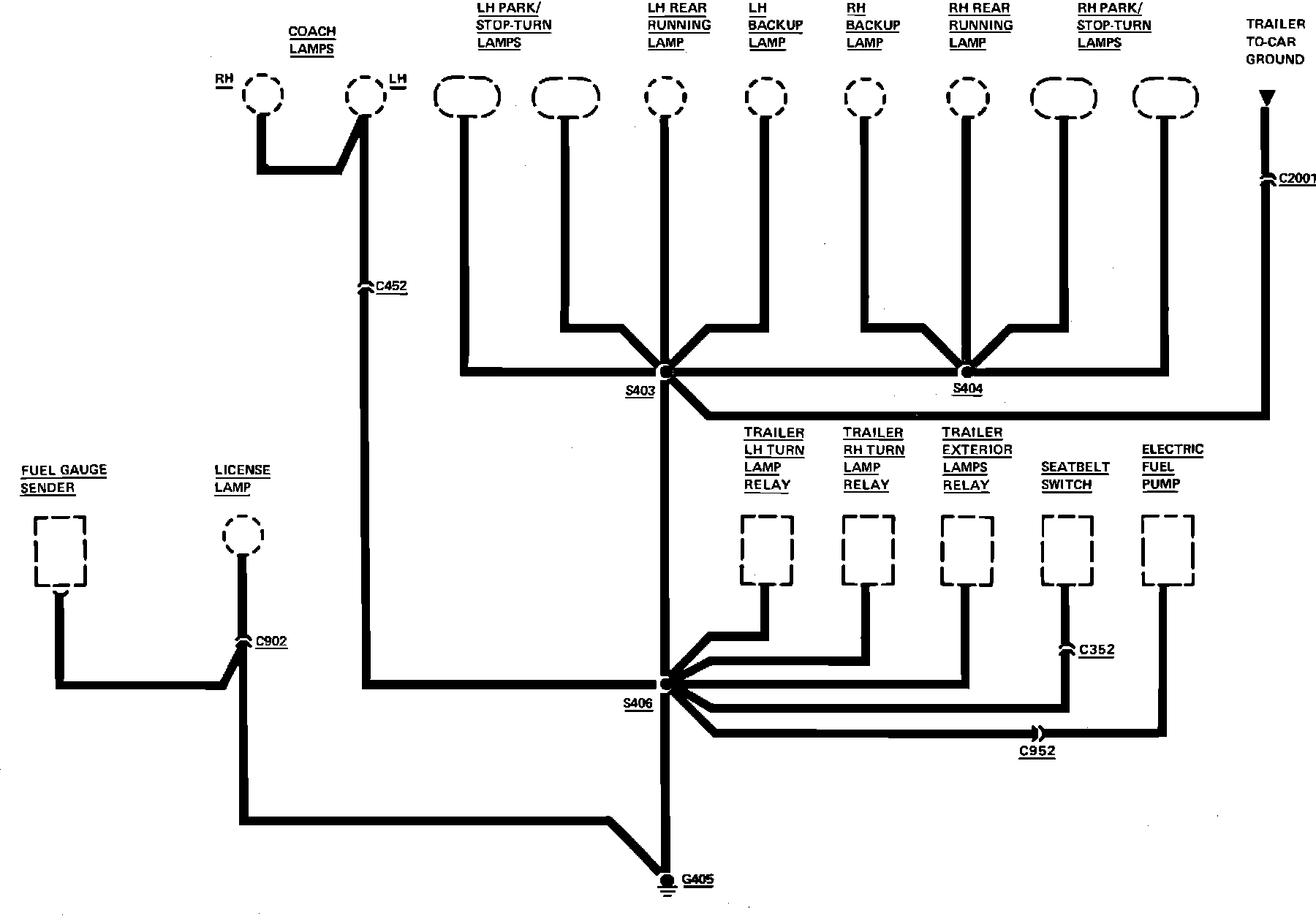

Fig. 24 Ground Distribution (G405). 1985 Grand Marquis Sedan With Trailer Option:
