(G405 & G902) Sedan Less Trailer Option

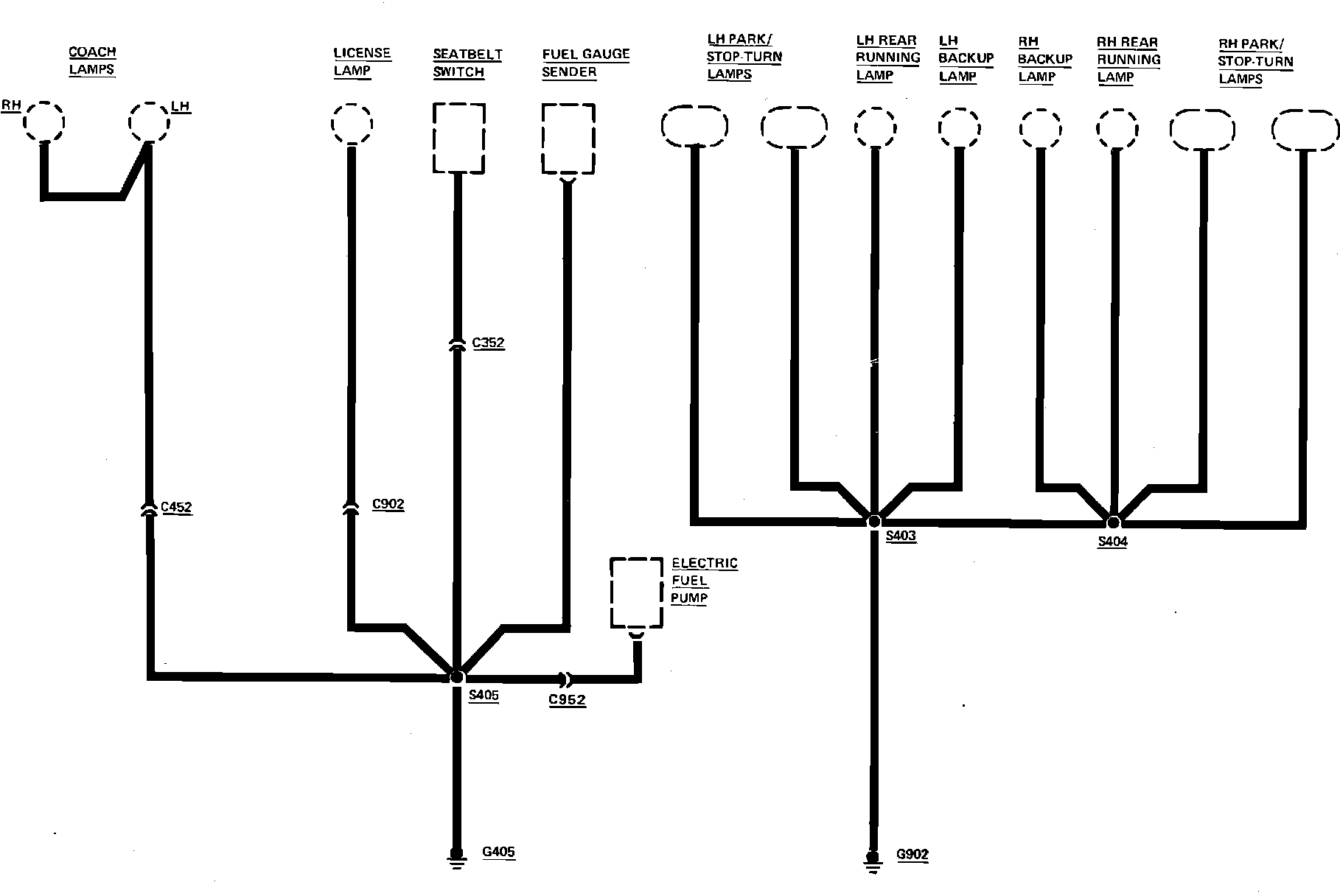

Fig. 23 Ground Distribution (G405 & G902). 1985 Grand Marquis Sedan Less Trailer Option:
