Home >> Mercury >> 1985 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> (G1301) Wagon With Trailer Option

(G1301) Wagon With Trailer Option

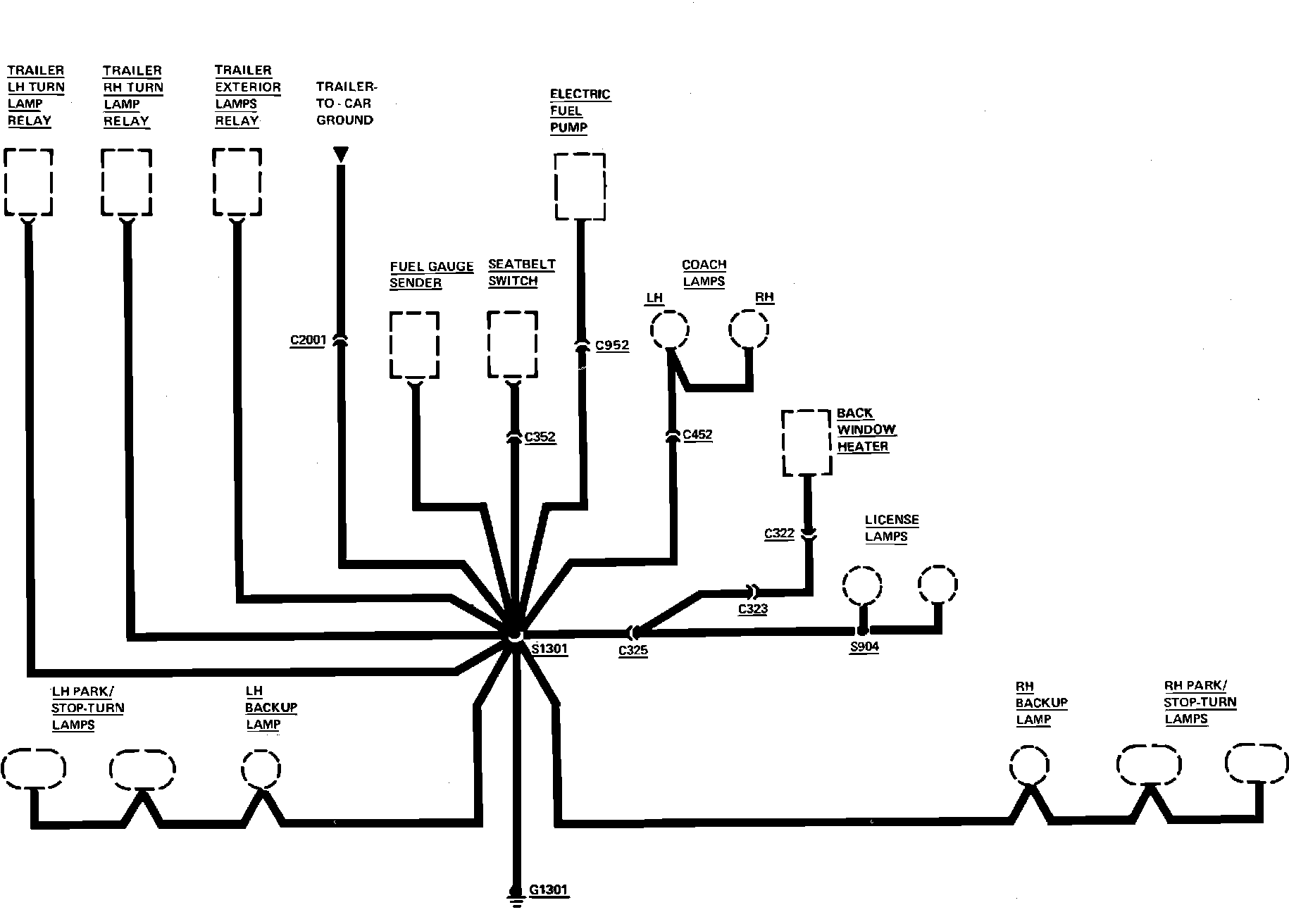

Fig. 26 Ground Distribution (G1301). 1985 grand Marquis Wagon With Trailer Option:
