Home >> Mercury >> 1985 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> (G101 & G110)

(G101 & G110)

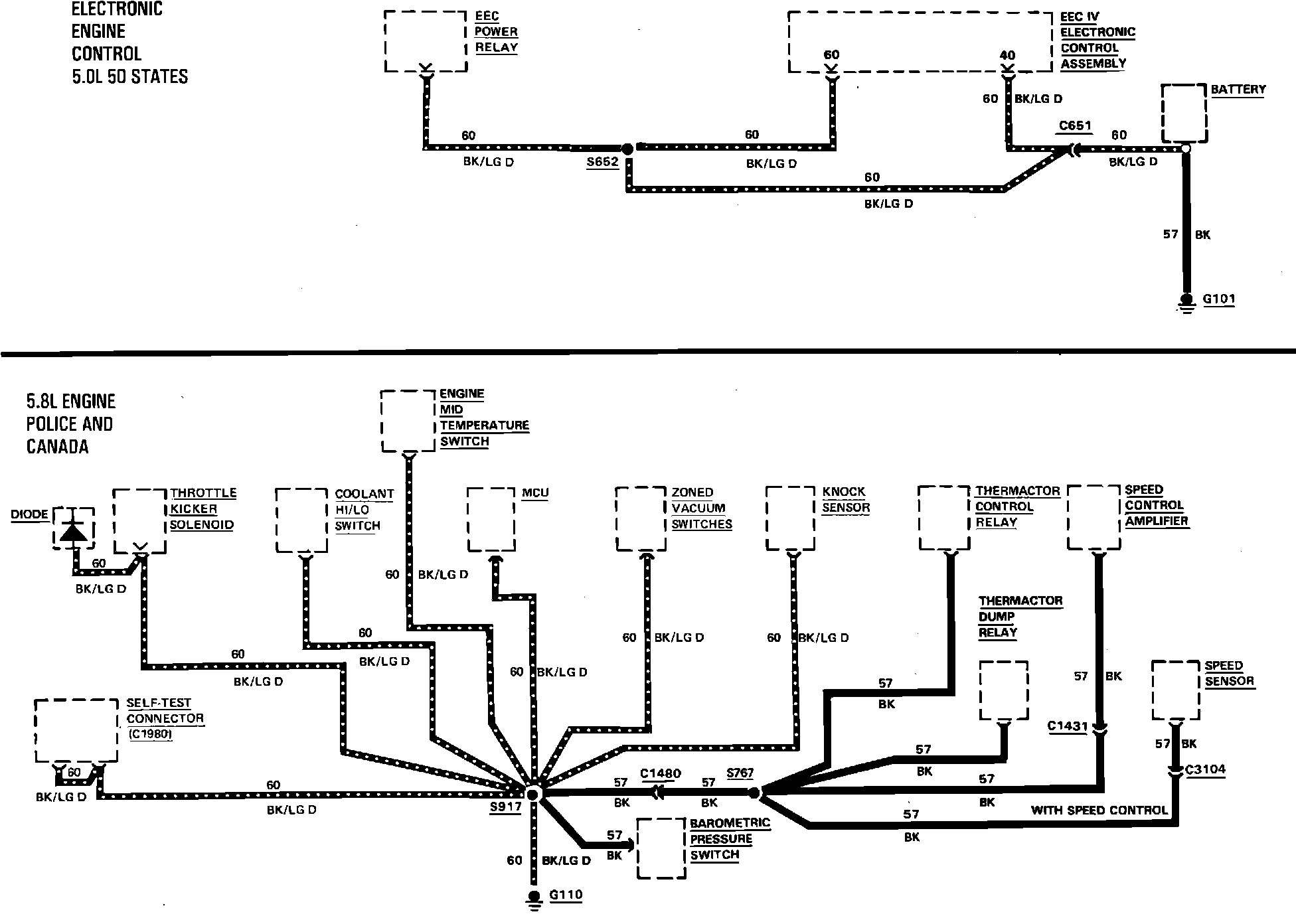

Fig. 20 Ground Distribution (G101 & G110). 1985:
