Charging System
Charging System

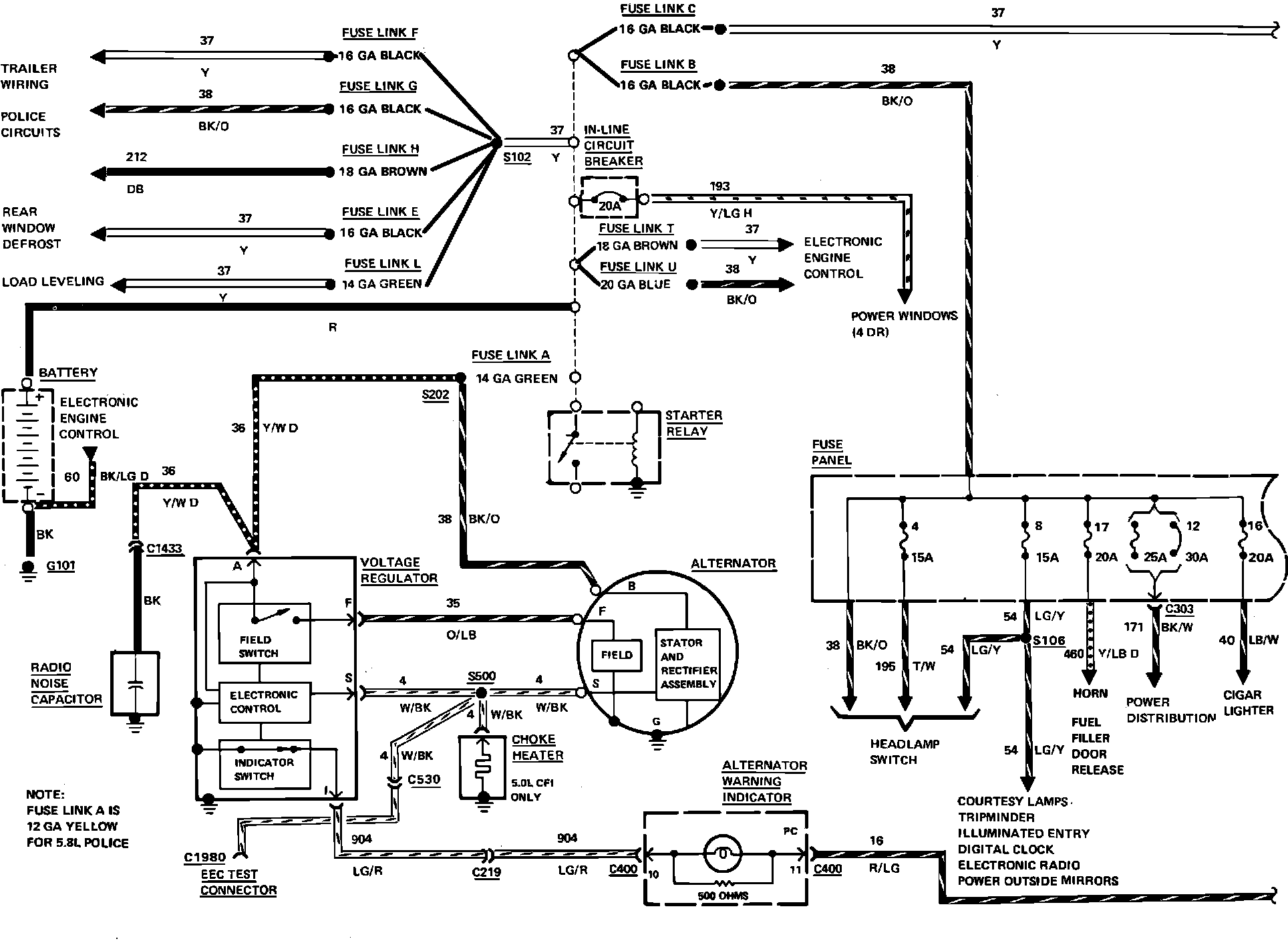

Fig. 12 Charging System Power Distribution (Part 1 of 2). 1985:
Fig. 12 Charging System Power Distribution (Part 2 of 2). 1985:
