Colony Park V8-302 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Non-Trouble Code Procedures
>>
Manual Climate Control
>>
Leak Diagnosis
Leak Diagnosis

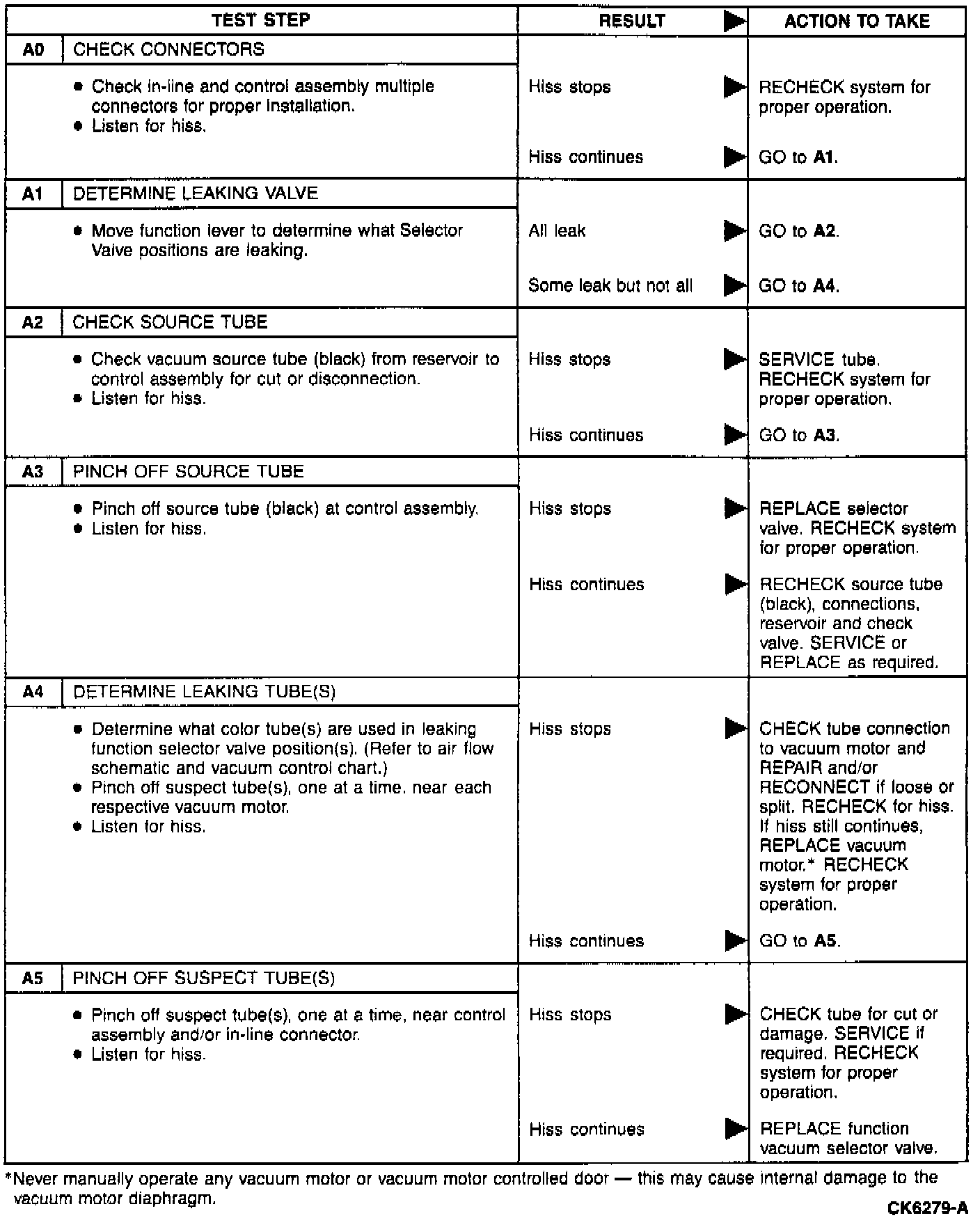

Manual A/C-Heater System Vacuum Leak Diagnosis Chart:
