Home >> Mercury >> 1985 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> Electronic Climate Control

Electronic Climate Control

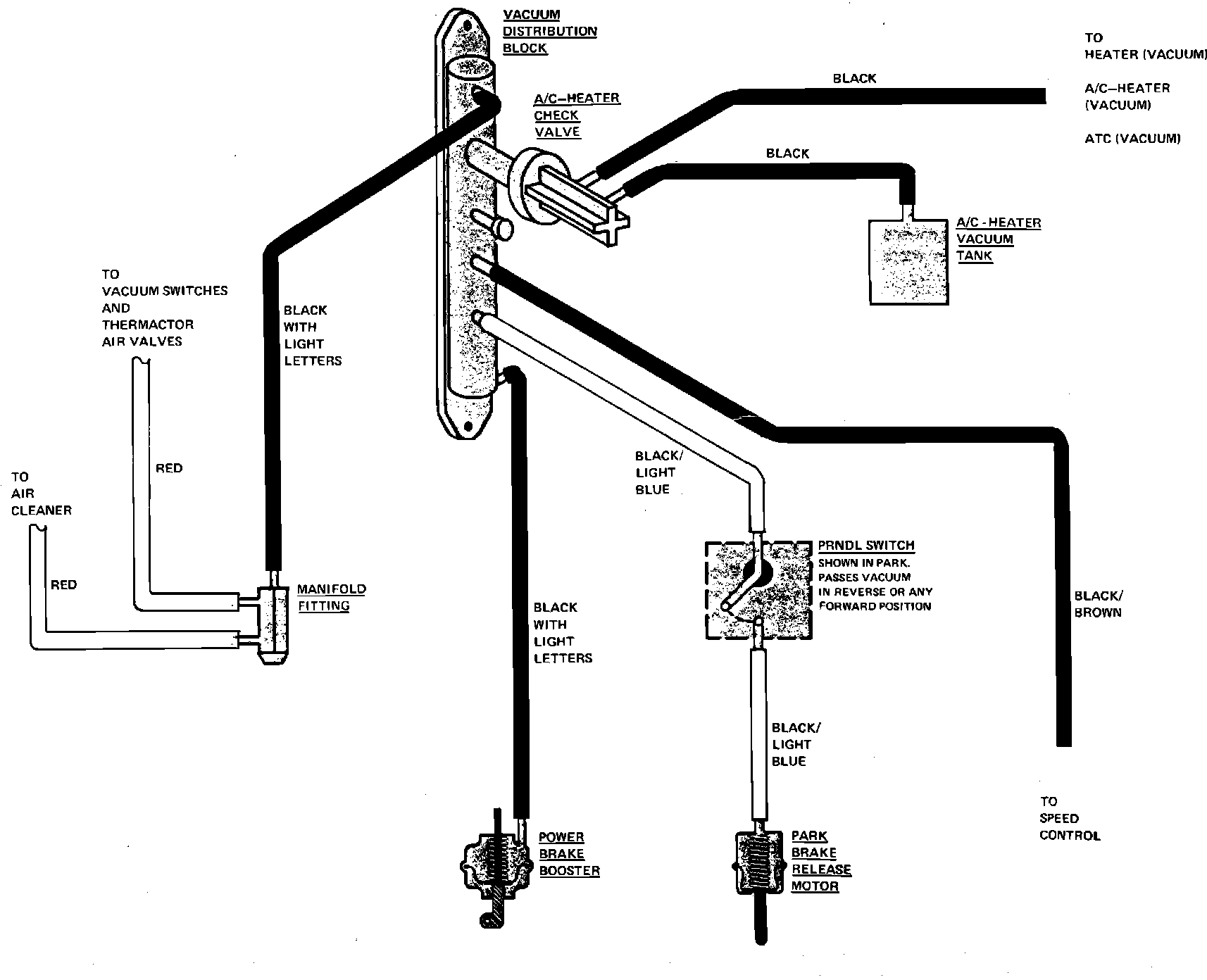

Fig. 2 Vacuum Distribution. 1985:



Heater System Air Flow Schematic And Vacuum Control Chart:

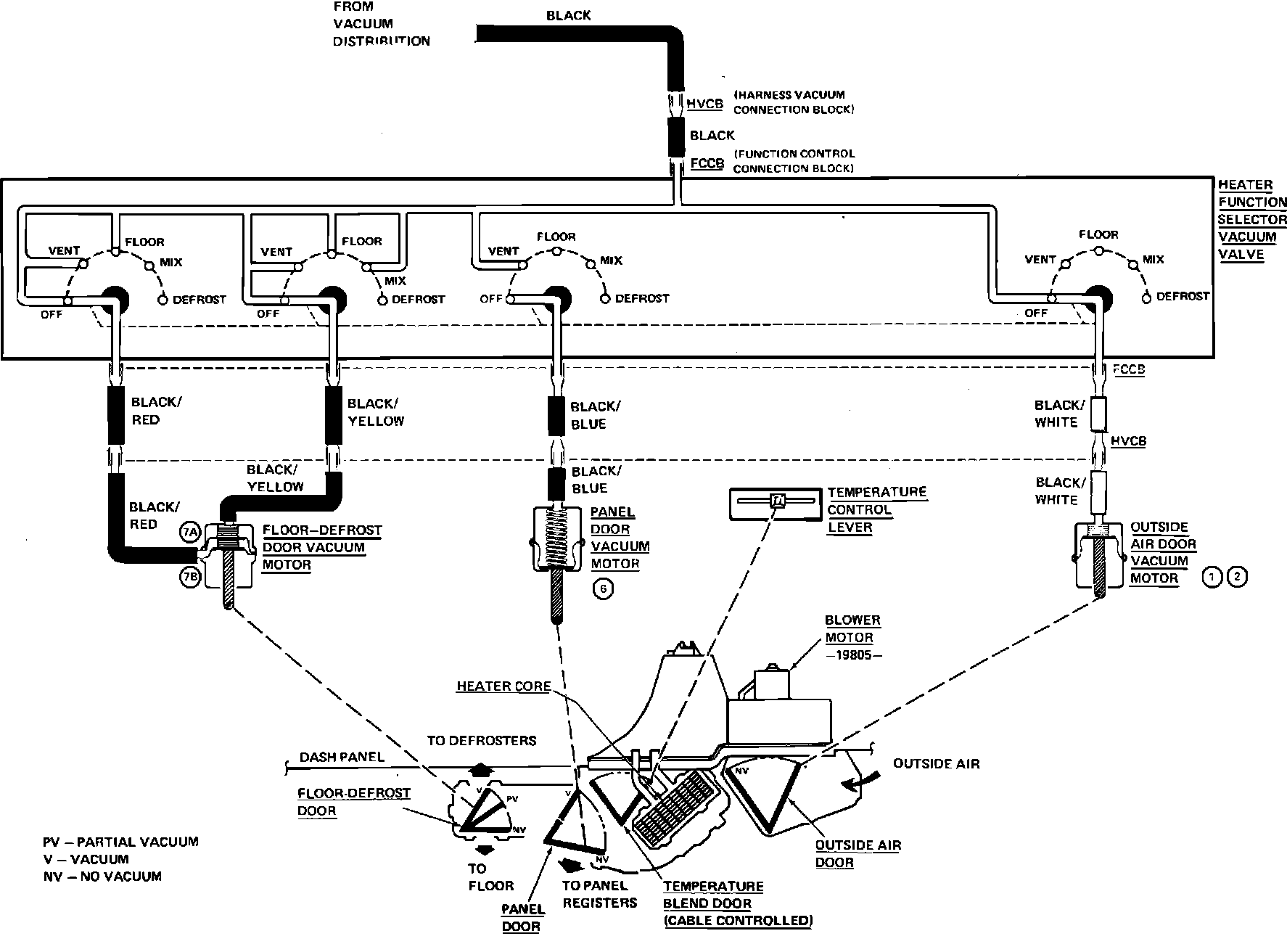

Fig. 4 Heater Vacuum Control (Less Air Conditioning). 1985:
