Wiring Diagrams

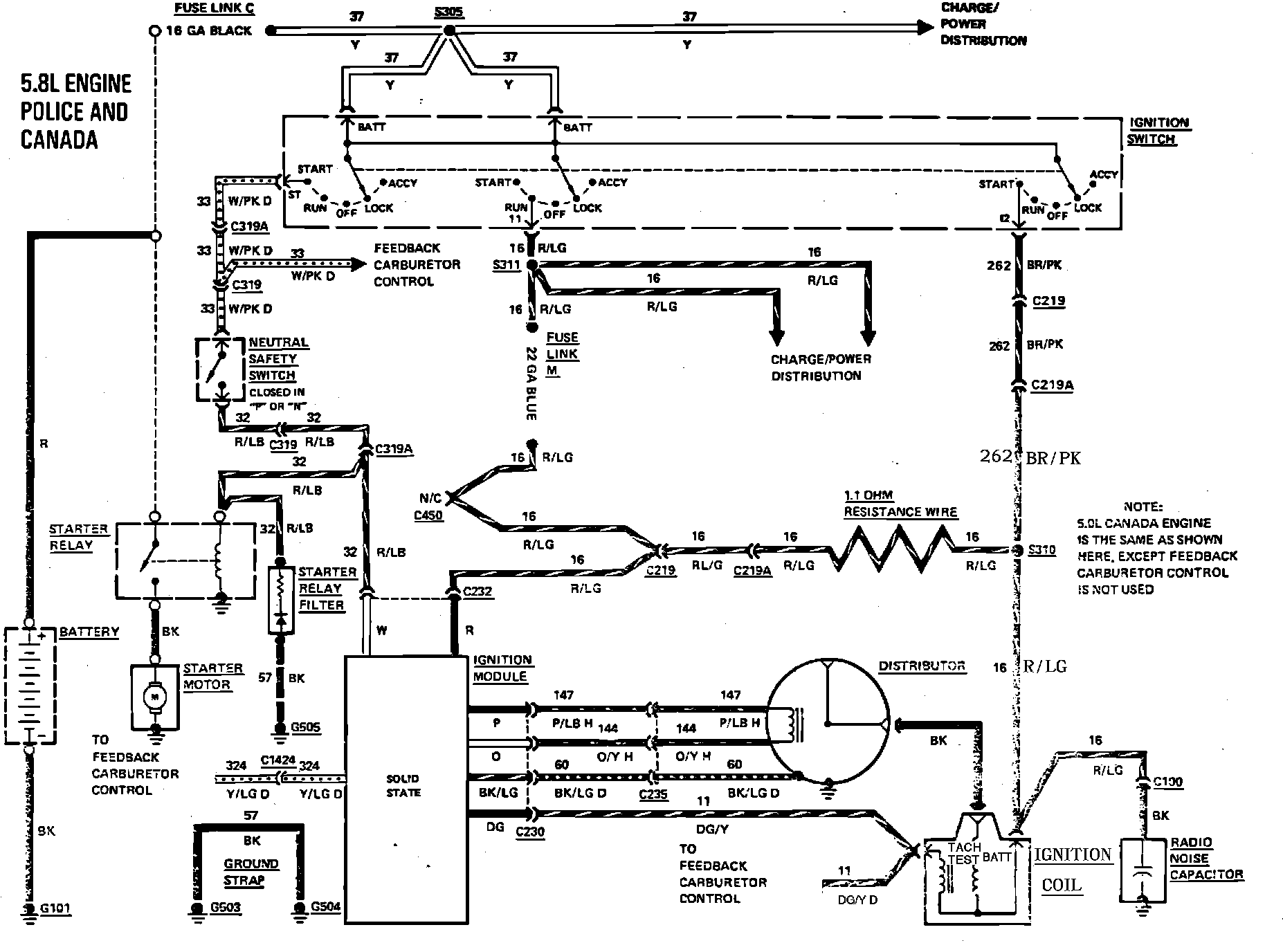

Fig. 35 Ignition System Wiring Circuit (Dura Spark). 1985:

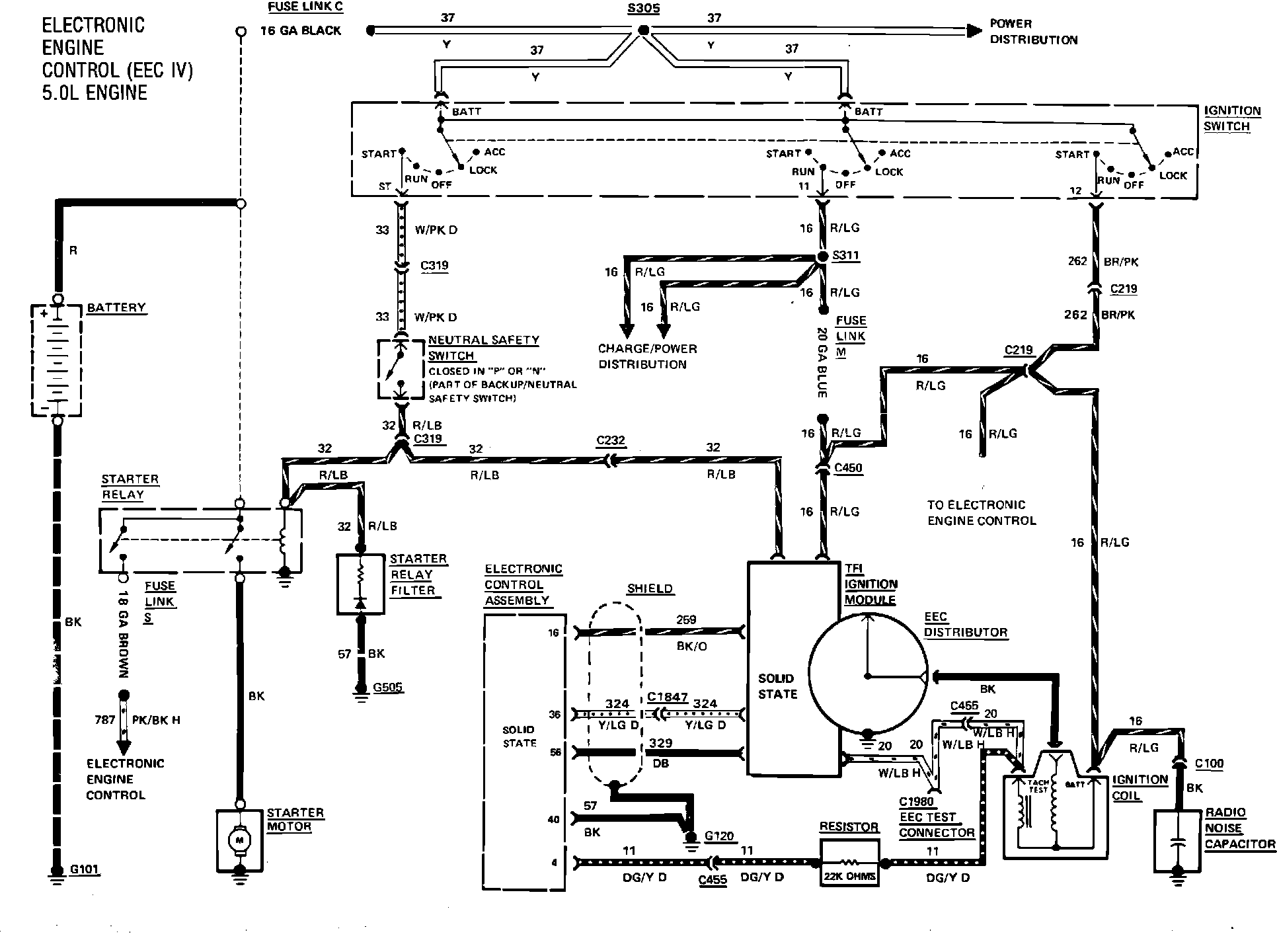

Fig. 36 Ignition System Wiring Circuit (EEC IV). 1985:
