Electronic Climate Control

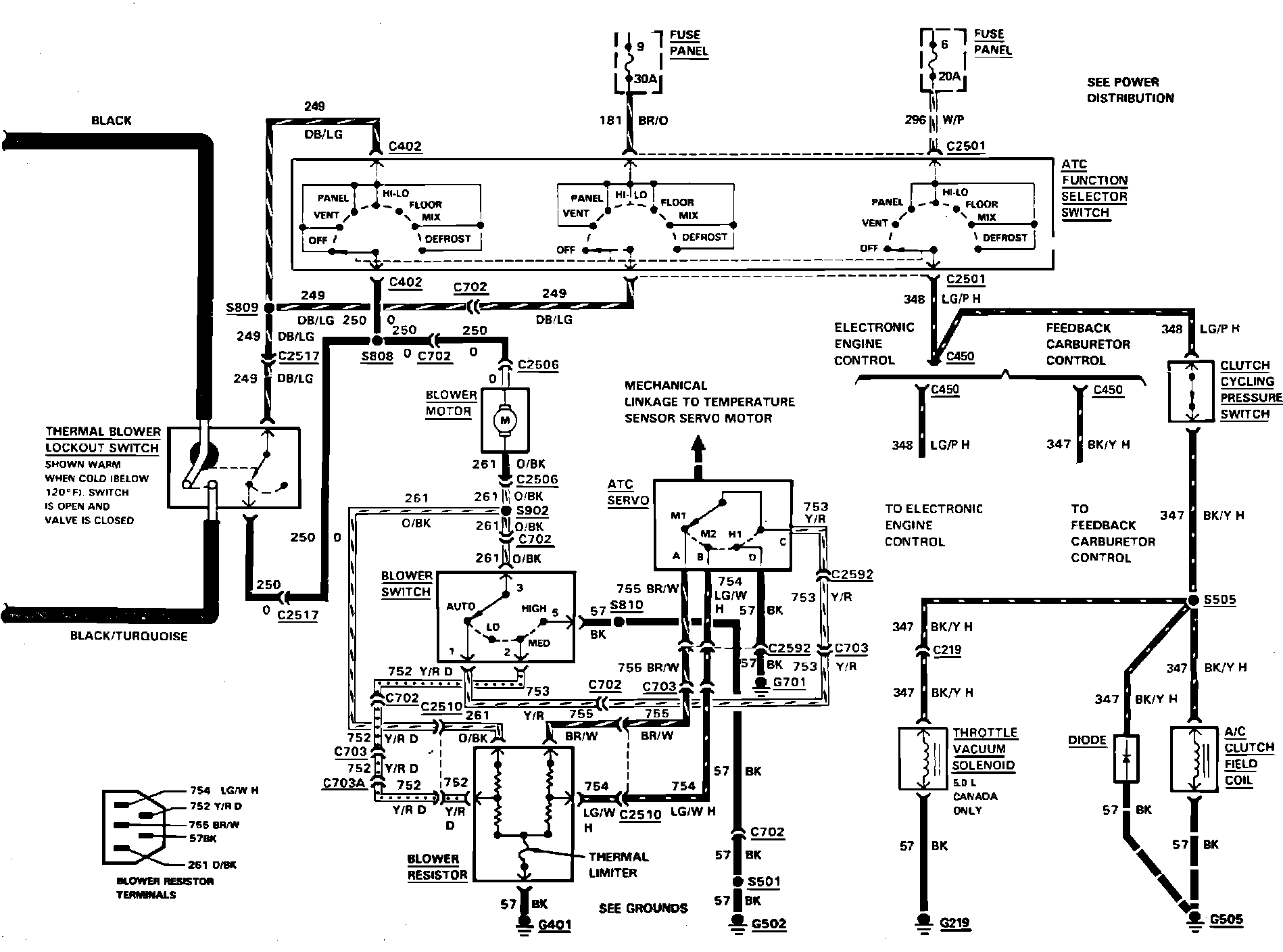

Fig. 6 Air Conditioning Vacuum & Wiring Circuit Automatic Temperature Control (Part 2 of 2). 1985:



ATC System Electrical Wiring Diagram And Continuity Test:
