Home >> Mercury >> 1985 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams >> Electrical Diagrams

Electrical Diagrams

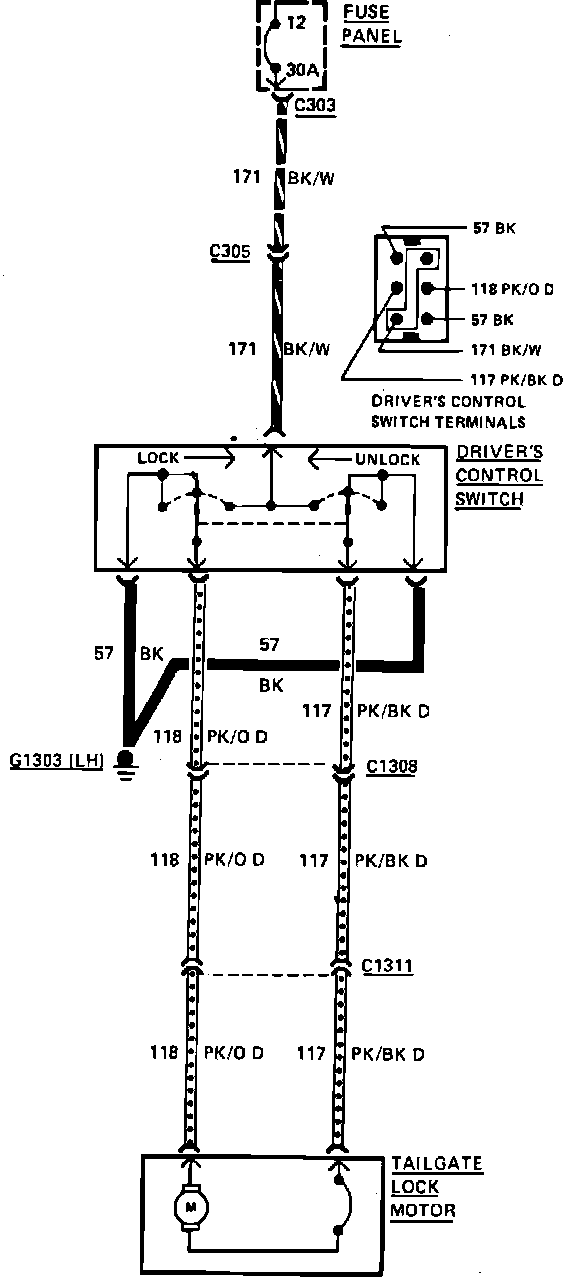

Fig. 46 Power Tailgate Release Wriing Circuit (Less Power Door Locks). 1985:
