Premium Sound (2 Channel)

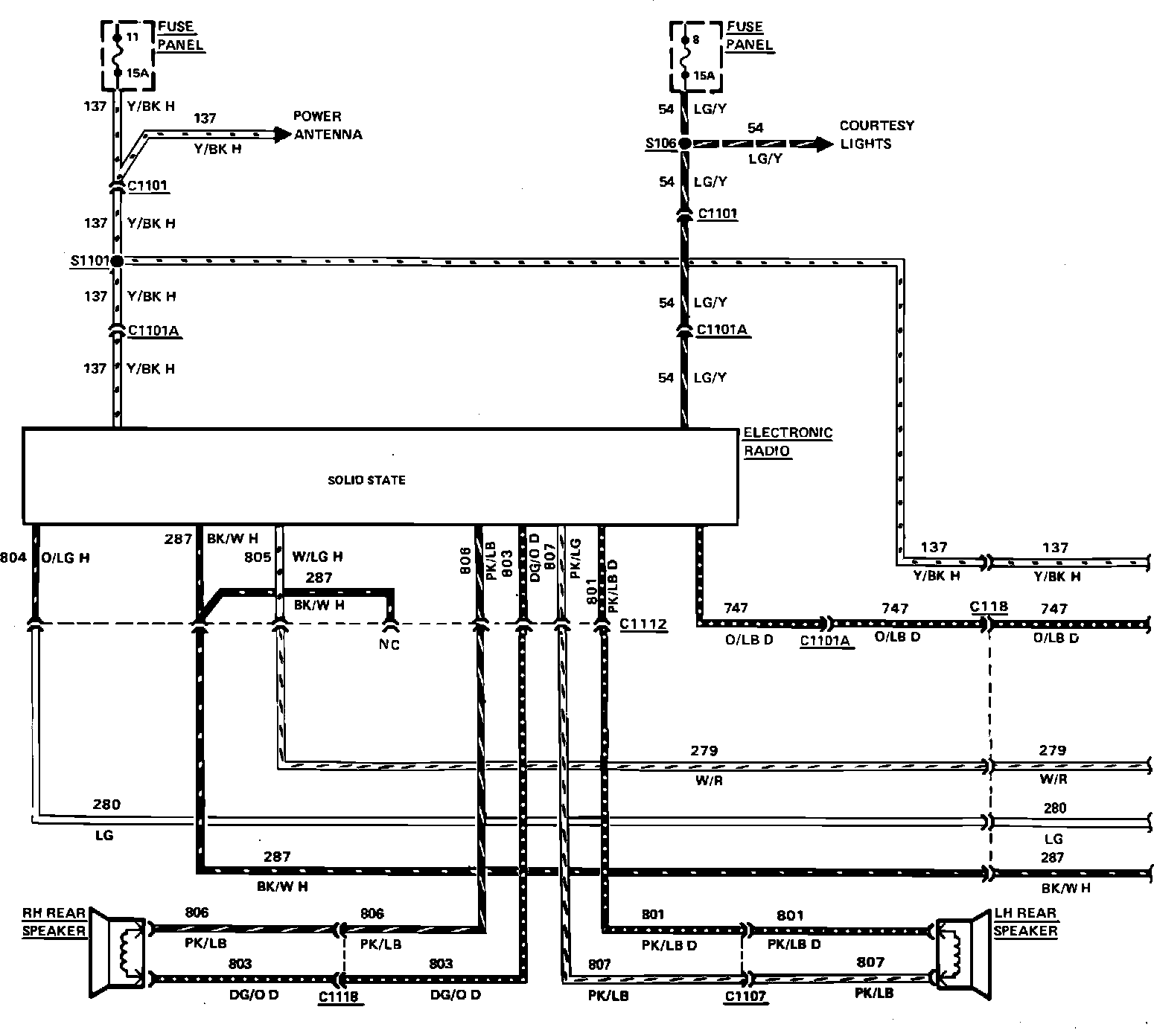

Fig. 53 Radio Wiring Circuit (Premium Sound, 2 Channel)(Part 1 of 2). 1985:

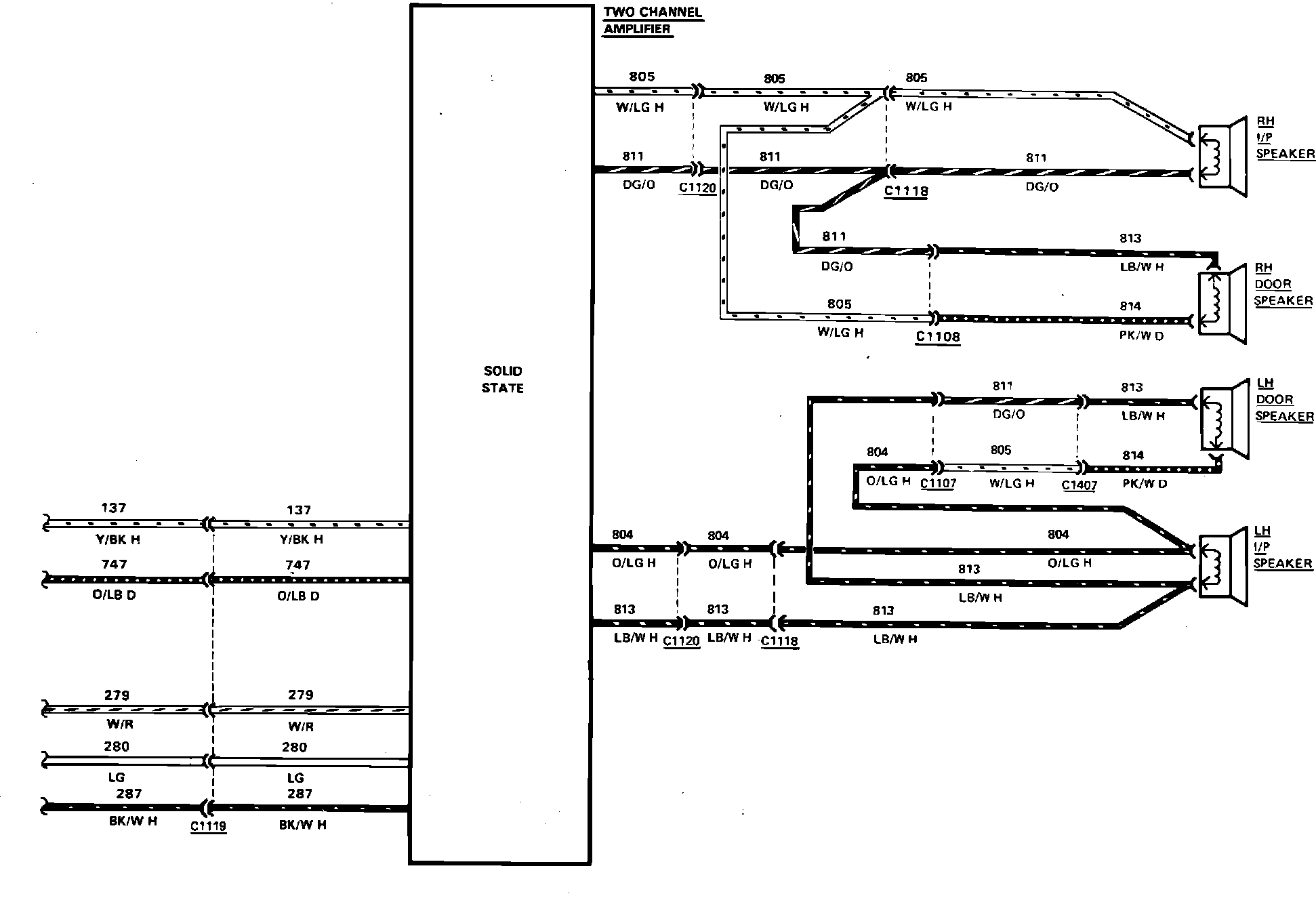

Fig. 53 Radio Wiring Circuit (Premium Sound, 2 Channel)(Part 2 of 2). 1985:
