Home >> Mercury >> 1985 >> Capri V8-302 5.0L CFI HO >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> EEC III System Components - CFI Engines

EEC III System Components - CFI Engines

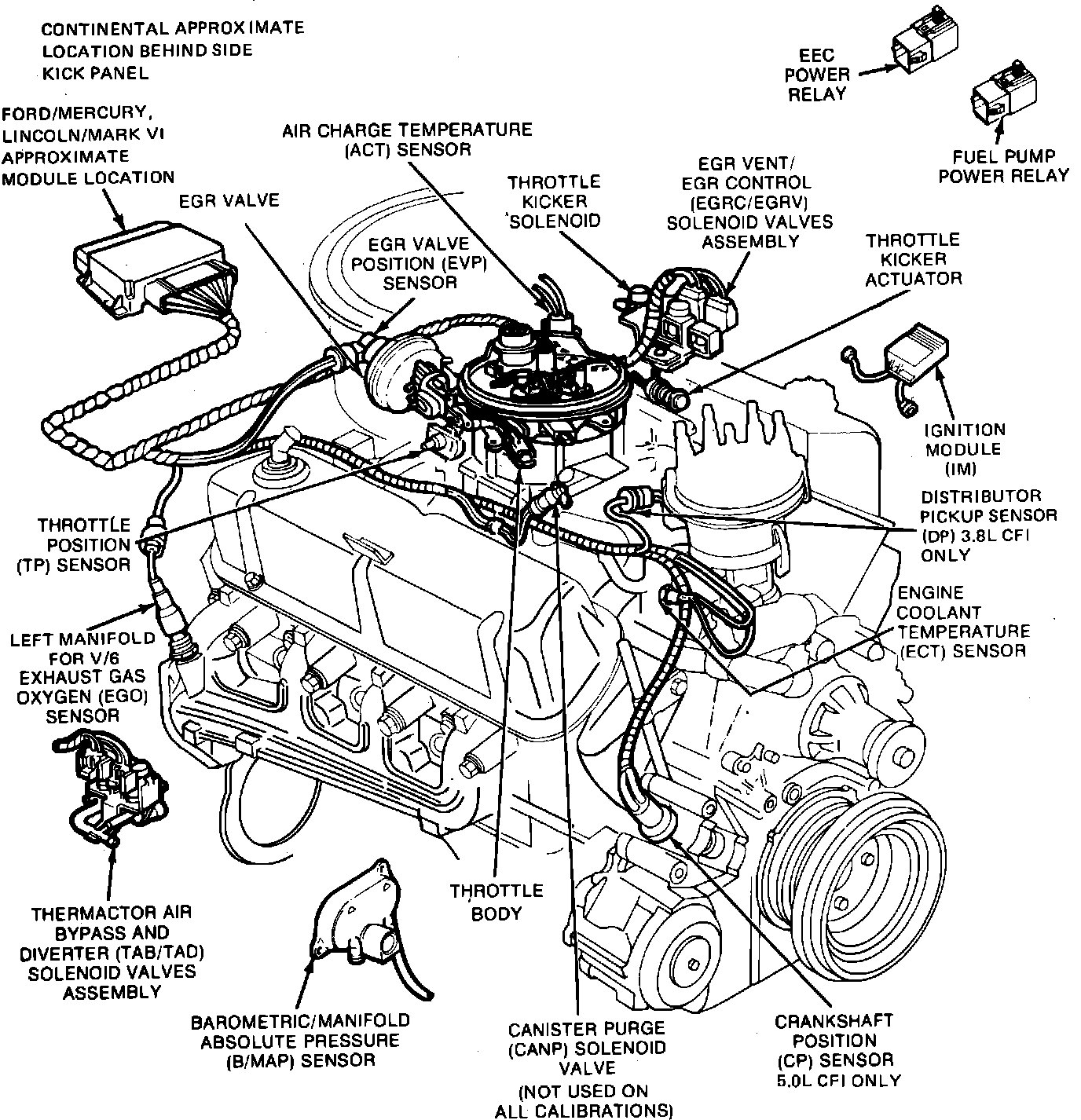

Fig. 6 EEC III Component Locations. 1985 V8-302 CFI Engines:
